 SR Insulated & LSZH Sheathed Fire Resistant Cables to DIN VDE 0815

JE-H(St)H…Bd FE180 E30        JE-H(St)H…Bd FE180 E30 BMK



Application

The cables are similar in design and application to CW 1600, but with Silicon Rubber Insulation. They are used

for the internal wiring of building when the circuit integrity during fire is paramount. The cables are intended for

use in fire fighting plants with special ceramized silicon insulation, with and without aluminium foil and LSZH

outer sheath

Standards

EN 50200:2000-02

EN 50266

EN 50267

EN 50268

BS 6387

IEC 60331

DIN VDE 0472-814

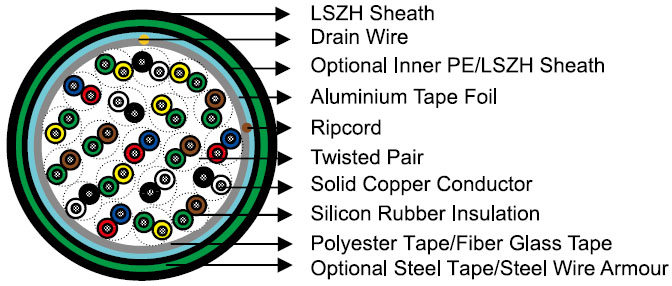

Construction

SR Insulated & LSZH Sheathed Fire Resistant Cables to DIN VDE 0815 SR Insulated & LSZH Sheathed Fire Resistant Cables to DIN VDE 0815

Conductors

Solid annealed bare or tinned copper sized 0.6/0.8/0.9mm as per class 1 of VDE 0295/IEC 60228

Insulation

Silicon Rubber compound as per DIN VDE 0266

Twisted Pairs

Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk

Cabling Element

Twisted Pairs

Core Assembly

The twisted pairs are stranded to the core in layers

Core Wrapping

One or more non hygroscopic polyester tapes are helically or longitudinally laid with an overlap prior to

sheathing

Screen

A laminated Aluminium/Polyester tape is placed in contact with solid copper 0.6mm or 0.8mm drain wire

Inner bedding (for armoured cables)

PE or LSZH compound.

Armour (for armoured cables)

Either corrugated steel tape armour or galvanized steel wire is applied over an inner polyethylene sheath. For

steel tape armour, the 0.15mm thick steel tape is coated with a copolymer and applied with an overlap. For steel

wire armour, single layer of galvanized steel wire armour is applied

Sheath

LSZH compound HM2 as per VDE 0207-24

Ripcord

Nylon ripcord may be placed parallel to the cores to facilitate sheath removal

Drain Wire

A solid tinned earth/continuity wire shall be laid longitudinally for screened cables

Type Codes

JE- Fire Alarm Cable H Halogen Free & Zero Halogen
Bd Unit stranding (St) Static Shield of aluminium tape
FE180 Insulation Integrity (950°C 180 minutes) E30 30 minutes Circuit Integrity

Electrical Properties

Conductor Diameter mm 0.6 0.8 0.9
Conductor Size mm2 0.283 0.5 0.312
Maximum Conductor Resistance @20°C Ω/km 63 34.6 28.0
Maximum Loop Resistance @20°C Ω/km 130 73.2 60
Minimum Insulation Resistance @500V DC @20°C MΩ.km 100 100 100
Maximum Average Attenuation @0.8KHz dB/km 1.7 1.2 0.74
Nominal Mutual Capacitance @0.8KHz nF/km 120 120 120
Maximum Capacitance Unbalance K1 @0.8KHz pair-to-pair pF/100m 200 200 200
Working Voltage V 225 225 225
Nominal Insulation Thickness mm 0.3 0.4 0.45
Nominal Insulated Conductor Diameter mm 1.2 1.6 1.7

Mechanical and Thermal Properties

Temperature range during operation (fixed state): -30°C – +70°C

Temperature range during installation (mobile state): -20°C – +50°C

Minimum bending radius: 7.5 x Overall Diameter (unarmoured cable);15 x Overall Diameter (armoured cables)

Fire Hazard Performance

1) Minimum Smoke Emission IEC 61034, EN 50268 ( New: EN 61034), VDE 0482-268 ( New: VDE 0482-1034)
These standards specify a method to measure the generation of smoke from cables during fire. The result is expressed as percentage of light transmitted. Usually, the smoke density shall not be less than 60%.
2) Halogen Free  IEC 60754-1, EN 50267-2-1
These standards specify a method for determination of the amount of halogen acid gas, evolved during combustion of compound. The hydrochloric acid yield should be less than 0.5%.
3) Non corrosive gases IEC 60754-2, EN 50267-2-2, VDE 0482-267
These  standards  specify  a  method  for  determination  of  acidity  of  gas  evolved  during combustion of cables by measuring PH and conductivity. The specimen is deemed to pass this test if the pH value is less than 4.3 when related to 1 litre of water and conductivity is less than 10 μs/min.
4) Reduced Fire Propagation IEC 60332-3C, EN 50266-2-4, VDE 0482-266-2-4
These standards specify a method for flame propagation test for bunched cables.
5) Flame Retardancy IEC 60332-1, VDE 0482-265-2-1
These standards specify a method for flame propagation test for single core cables.
6) Temperature Index BS EN ISO 4589-3, BS 2782 Part 1
These standards specify a method for measuring the temperature Index of materials. The temperature index shall be equal or greater than 280ºC.
7) Oxygen Index BS EN ISO 4589-2, BS 2863
These standards specify a test for measuring the minimum oxygen concentration to support candle like combustion of plastics. The oxygen index shall not be less than 30%.

Colour Code

Quad colour in each bundle:
Pair 1: Blue-Red         Pair 2: Grey-Yellow        Pair 3: Green-Brown         Pair 4: White-Black
The individual bundles are identified by a numbered helix.

Dimensions And Weight

VDE CODE: JE-H(St)H…x2x0.8 Bd FE180 E30

Cable Code Number of Pairs Nominal Insulation Thickness
mm
Nominal Sheath
Thickness
mm
Nominal Overall
Diameter
mm
Nominal
Weight
kg/km
0.8mm Conductor, 1.6mm Insulated Wire
TP815JE-H(St)H-Bd-FE180-E30-1P08 1 0.4 1.0 6.0 46
TP815JE-H(St)H-Bd-FE180-E30-2P08 2 0.4 1.0 6.6 61
TP815JE-H(St)H-Bd-FE180-E30-4P08 4 0.4 1.0 8.8 104
TP815JE-H(St)H-Bd-FE180-E30-6P08 6 0.4 1.0 10.8 160
TP815JE-H(St)H-Bd-FE180-E30-8P08 8 0.4 1.0 12.8 218
TP815JE-H(St)H-Bd-FE180-E30-10P08 10 0.4 1.2 13.1 220
TP815JE-H(St)H-Bd-FE180-E30-12P08 12 0.4 1.2 13.5 235
TP815JE-H(St)H-Bd-FE180-E30-16P08 16 0.4 1.2 14.7 297
TP815JE-H(St)H-Bd-FE180-E30-20P08 20 0.4 1.2 16.1 367
TP815JE-H(St)H-Bd-FE180-E30-24P08 24 0.4 1.4 18.1 440
TP815JE-H(St)H-Bd-FE180-E30-30P08 30 0.4 1.4 20.1 645
TP815JE-H(St)H-Bd-FE180-E30-32P08 32 0.4 1.4 20.6 645
TP815JE-H(St)H-Bd-FE180-E30-40P08 40 0.4 1.4 22.5 656
TP815JE-H(St)H-Bd-FE180-E30-50P08 50 0.4 1.6 24.3 840

VDE CODE: JE-H(St)H(SWA)H…x2x0.6/0.8/0.9 Bd FE180 E30

Cable Code Number of
Pairs
Nominal Insulation
Thickness
mm
Nominal Bedding/
Sheath Thickness
mm
Nominal Overall
Diameter
mm
Nominal
Weight
kg/km
0.6mm Conductor,1.2mm Insulated Wire
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-2P06 2 0.3 1.0/1.8 12.1 305
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-3P06 3 0.3 1.0/1.8 12.6 325
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-6P06 6 0.3 1.0/1.8 13.2 380
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-8P06 8 0.3 1.0/1.8 14.6 415
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-10P06 10 0.3 1.0/1.8 16.5 450
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-12P06 12 0.3 1.0/1.8 17.0 500
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-20P06 20 0.3 1.0/1.8 20.5 580
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-25P06 25 0.3 1.0/1.8 21.5 940
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-30P06 30 0.3 1.0/1.8 22.5 1300
0.8mm Conductor, 1.6mm Insulated Wire
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-2P08 2 0.4 1.0/1.8 14.0 415
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-3P08 3 0.4 1.0/1.8 14.0 425
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-6P08 6 0.4 1.0/1.8 15.0 485
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-8P08 8 0.4 1.0/1.8 17.5 520
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-10P08 10 0.4 1.2/1.8 19.0 540
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-12P08 12 0.4 1.2/1.8 20.5 600
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-20P08 20 0.4 1.4/1.8 24.5 1050
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-25P08 25 0.4 1.4/1.8 27.0 1250
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-30P08 30 0.4 1.4/1.8 28.5 1450
0.9mm Conductor, 1.7mm Insulated Wire
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-10P09 10 0.45 1.2/1.8 19.7 600
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-15P09 15 0.45 1.2/1.8 23.0 1020
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-20P09 20 0.45 1.4/1.8 25.3 1160
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-25P09 25 0.45 1.4/1.8 27.3 1330
TP815JE-H(St)H(SWA)H-Bd-FE180-E30-30P09 30 0.45 1.4/1.8 29.3 1520
