BS5308 Cable Part 1 Type1 MG-XLPE-OS-LSOH
Application
BS5308 Cable Part 1 Type1 MG-XLPE-OS-LSOH are typically used in chemical and process industries where there
is danger of fire.

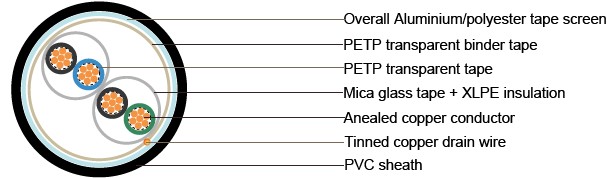

Construction
Conductor :Annealed copper, Class 2
Insulation :Mica glass tape, XLPE (Cross Linked Polyethylene), or PE (optional)
Pairing:Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Colour code :See technical information
Binder tape :PETP transparent tape
Collective screen :Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with
tinned copper drain wire, 0.5mm²
Outer sheath :LSOH(Low Smoke Zero Halogen) sheath Flame retardant to IEC60332-3-22 Fire resistant to
IEC60331 Halogen free to IEC60754-1 Low smoke emission to IEC61034-1-2
Sheath colour :Black or blue
Mechanical and Electrical Properties
Operating temperature: -20˚C up to + 90˚C( fixed installation)
0˚C to +50˚C(during operation )
Minimum bending radius: 5 x overall diameter
| Conductor Area Size | mm2 | 0.5 | 0.75 | 1.0 | 1.5 | |
|---|---|---|---|---|---|---|
| Conductor Stranding | No. x mm | 7 x 0.3 | 7 x 0.37 | 7 x 0.43 | 7 x 0.53 | |
| Conductor resistance max | ohm/km | 39 | 24.5 | 18.1 | 12.1 | |
| Insulation resistance min | Gohm/km | 5 | 5 | 5 | 5 | |
| Capacitance unbalance at 1 kHz(pair to pair screen) | pF/250m | 250 | ||||
| Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables (except one-pair and two-pairs) | pF/m | 75 | 75 | 75 | 75 | |
| Max. Mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair) | pF/m | 115 | 115 | 115 | 115 | |
| Max. L/R Ratio for adjacent cores(Inductance/ Resistance) | μH/ohm | 25 | 25 | 25 | 40 | |
| Test voltage | Core to core | V | 1000 | 1000 | 1000 | 1000 |
| Core to screen | V | 1000 | 1000 | 1000 | 1000 | |
| Rated voltage max | V | 300/500 | 300/500 | 300/500 | 300/500 | |
| No.of Pairs | No.and Dia. of Wires | Nominal Conductor Cross-Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Dia. of Cable | Approx.Weight |
|---|---|---|---|---|---|---|
| no./mm | mm2 | mm | mm | mm | kg/km | |
| 1 | 7/0.43 | 1 | 0.6 | 1.4 | 7.8 | 89 |
| 2 | 7/0.43 | 1 | 0.6 | 1.4 | 9.2 | 121 |
| 5 | 7/0.43 | 1 | 0.6 | 1.4 | 13.9 | 298 |
