BS 6346 PVC Insulated Cables, 600/1000V

Four-core 600/1000V cables with solid aluminum conductors

Application

BS 6346 power and control cables are used for electricity supply in low voltage installation system. BS 6346

cables are well adapted to underground use in industrial applications where chemical and mechanical

protections are needed (refinery areas, chemical plant...).

Construction

Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.

Insulation PVC(Polyvinyl Chloride) type TI1

Colour Code 1 Core : Brown

2 Cores: Brown,Blue

3 Cores: Brown, Black, Grey

4 Cores: Blue, Brown, Black, Grey

5 Cores: Green-yellow, Blue, Brown, Black, Grey

Above 5 Cores: White Cores with black numbers

Filler(optional) PVC or Polypropylene yarn

Binder Tape(optional) Polyester (Mylar) tape

Inner Sheath/ Bedding PVC (Polyvinyl Chloride)

Armour Single Core: AWA (Aluminum WireArmour)

Multi Core: SWA (Steel Wire or Tape Armour)

Outer Sheath PVC(Polyvinyl Chloride), type TM1

Technical Information

Voltage rating 600/1000V

Temperature rating -20°C to +60°C

Bending radius Single core: 10 x overall diameter

                        Multicores: 8 x overall diameter

Flame retardant IEC60332 part 1, BS4066 part 1

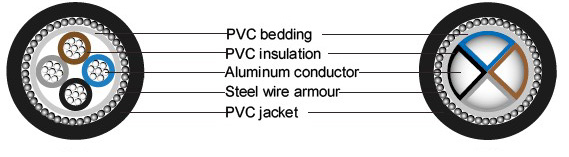

Four-core 600/1000V cables with solid aluminum conductors
