BS6346 电缆

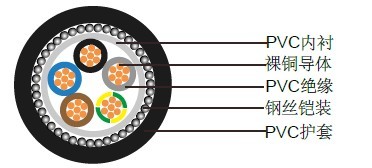

五芯600/1000V多股铜导体电缆
标称导体截面积 |
股数/ 直径 |
标称绝缘厚度 |
标称内衬厚度 |
标称钢丝铠装 直径 |
标称护套厚度 |
标称外径 |
标称电缆重量 |
|
|---|---|---|---|---|---|---|---|---|
挤出型内衬 |
带状内衬 |
|||||||
mm² |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/mm |
5x1.5 |
7/0.53 |
0.6 |
0.8 |
0.9 |
1.4 |
14.3 |
- |
430 |
5x2.5 |
7/0.67 |
0.7 |
0.8 |
0.9 |
1.5 |
16.3 |
- |
545 |
5x4 |
7/0.85 |
0.8 |
0.8 |
1.25 |
1.5 |
19.0 |
- |
790 |
5x6 |
7/1.04 |
0.8 |
0.8 |
1.25 |
1.6 |
20.9 |
- |
880 |
5x10 |
7/1.35 |
1.0 |
1.0 |
1.6 |
1.7 |
25.8 |
- |
1150 |
5x16 |
7/1.70 |
1.0 |
1.0 |
1.6 |
1.7 |
28.4 |
28.0 |
1670 |
5x25 |
7/2.14 |
1.2 |
1.0 |
1.6 |
1.9 |
33.5 |
33.1 |
2250 |
5x35 |
19/1.53 |
1.2 |
1.0 |
1.6 |
1.9 |
36.6 |
36.2 |
2670 |
5x50 |
19/1.78 |
1.4 |
1.2 |
2.0 |
2.1 |
43.0 |
42.2 |
3590 |
5x70 |
19/2.14 |
1.4 |
1.2 |
2.0 |
2.2 |
48.1 |
47.3 |
4610 |
*扇形多股导体（2类）
