符合IEC 60502-2标准的中压XLPE绝缘镀锌钢带铠装电缆
应用
这些电缆多用于安装在配电站、室内室外、电缆管道、地下或水中,也用于电缆桥架安装行业。
标准
IEC 60228; IEC 60502-2

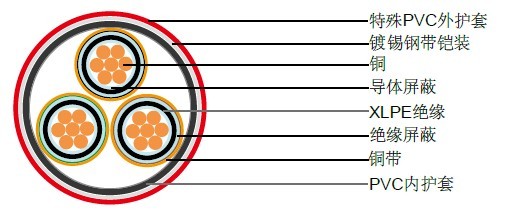

结构
导体: 多股裸铜 (2类)
导体屏蔽: 半导电交联化合物经过三重挤压过程后形成的挤出层
绝缘: XLPE
绝缘屏蔽: 半导电交联化合物经过三重挤压过程后形成的挤出层
线芯识别:
1芯: 自然色
3芯: 黑, 绿, 综
内护套: PVC
铠装: 1芯:铝带铠装;多芯:镀锌钢带铠装
外护套: 特殊PVC。红色。可根据要求添加防紫外线功能
性能
防火标准: IEC 60332-3-22
工作温度: -20~60°C
工作中导体能承受的最高温度: 90°C
耐化学性: 耐脂肪烃及芳香烃
1芯
导体截面积 | 加上绝缘的外径 | 加上绝缘屏蔽的外径 | 加上内护套的外径 | 加上铠装的外径 | 最小外径 | 最大外径 | 重量 | 额定电压 Uo/ U(Um) |
---|---|---|---|---|---|---|---|---|
(mm²) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (kv) |
25 | 12.3 | 13.7 | 17.7 | 20.0 | 30.1 | 33.2 | 1419 | 3.6 / 6 (7.2) |
35 | 13.3 | 14.7 | 18.7 | 21.0 | 31.0 | 34.2 | 1562 | 3.6 / 6 (7.2) |
50 | 14.4 | 15.8 | 19.8 | 22.1 | 32.1 | 35.4 | 1737 | 3.6 / 6 (7.2) |
70 | 16.0 | 17.4 | 21.4 | 23.7 | 33.7 | 37.1 | 2018 | 3.6 / 6 (7.2) |
95 | 17.55 | 19.0 | 23.0 | 25.3 | 35.2 | 38.8 | 2343 | 3.6 / 6 (7.2) |
120 | 19.06 | 20.5 | 24.5 | 26.8 | 36.7 | 40.4 | 2650 | 3.6 / 6 (7.2) |
150 | 20.37 | 21.8 | 25.8 | 28.1 | 37.9 | 41.8 | 2968 | 3.6 / 6 (7.2) |
185 | 22.05 | 23.5 | 27.5 | 29.8 | 39.6 | 43.7 | 3400 | 3.6 / 6 (7.2) |
240 | 24.6 | 26.0 | 30.0 | 32.3 | 42.0 | 46.3 | 4053 | 3.6 / 6 (7.2) |
300 | 27.4 | 28.8 | 32.8 | 35.1 | 44.7 | 49.3 | 4790 | 3.6 / 6 (7.2) |
400 | 30.9 | 32.3 | 36.3 | 38.6 | 48.1 | 53.1 | 5819 | 3.6 / 6 (7.2) |
500 | 35.4 | 36.8 | 40.8 | 43.1 | 52.5 | 57.9 | 7094 | 3.6 / 6 (7.2) |
630 | 39.8 | 41.2 | 45.3 | 47.6 | 57.2 | 63.1 | 8709 | 3.6 / 6 (7.2) |
25 | 14.1 | 15.5 | 19.5 | 21.8 | 31.8 | 35.1 | 1553 | 6 / 10 (12) |
35 | 15.1 | 16.5 | 20.5 | 22.8 | 32.8 | 36.2 | 1694 | 6 / 10 (12) |
50 | 16.2 | 17.6 | 21.6 | 23.9 | 33.9 | 37.3 | 1879 | 6 / 10 (12) |
70 | 17.8 | 19.2 | 23.2 | 25.5 | 35.4 | 39.1 | 2159 | 6 / 10 (12) |
95 | 19.35 | 20.8 | 24.8 | 27.1 | 37.0 | 40.8 | 2487 | 6 / 10 (12) |
120 | 20.86 | 22.3 | 26.3 | 28.6 | 38.4 | 42.4 | 2802 | 6 / 10 (12) |
150 | 22.17 | 23.6 | 27.6 | 29.9 | 39.7 | 43.8 | 3124 | 6 / 10 (12) |
185 | 23.85 | 25.3 | 29.3 | 31.6 | 41.3 | 45.6 | 3557 | 6 / 10 (12) |
240 | 26.2 | 27.6 | 31.6 | 33.9 | 43.6 | 48.0 | 4212 | 6 / 10 (12) |
300 | 28.6 | 30.0 | 34.0 | 36.3 | 45.9 | 50.6 | 4908 | 6 / 10 (12) |
400 | 31.7 | 33.1 | 37.1 | 39.4 | 48.9 | 53.9 | 5899 | 6 / 10 (12) |
500 | 35.8 | 37.2 | 41.2 | 43.5 | 52.9 | 58.3 | 7138 | 6 / 10 (12) |
630 | 40.2 | 41.6 | 45.7 | 48.0 | 57.6 | 63.6 | 8757 | 6 / 10 (12) |
25 | 16.3 | 17.7 | 21.7 | 24.0 | 34.0 | 37.5 | 1719 | 8.7 / 15 (17.5) |
35 | 17.3 | 18.7 | 22.7 | 25.0 | 34.9 | 38.5 | 1873 | 8.7 / 15 (17.5) |
50 | 18.4 | 19.8 | 23.8 | 26.1 | 36.0 | 39.7 | 2055 | 8.7 / 15 (17.5) |
70 | 20.0 | 21.4 | 25.4 | 27.7 | 37.5 | 41.4 | 2341 | 8.7 / 15 (17.5) |
95 | 21.55 | 23.0 | 27.0 | 29.3 | 39.1 | 43.1 | 2675 | 8.7 / 15 (17.5) |
120 | 23.06 | 24.5 | 28.5 | 30.8 | 40.5 | 44.7 | 2995 | 8.7 / 15 (17.5) |
150 | 24.37 | 25.8 | 29.8 | 32.1 | 41.8 | 46.1 | 3320 | 8.7 / 15 (17.5) |
185 | 26.05 | 27.5 | 31.5 | 33.8 | 43.5 | 47.9 | 3761 | 8.7 / 15 (17.5) |
240 | 28.4 | 29.8 | 33.8 | 36.1 | 45.7 | 50.4 | 4423 | 8.7 / 15 (17.5) |
300 | 30.8 | 32.2 | 36.2 | 38.5 | 48.0 | 53.0 | 5123 | 8.7 / 15 (17.5) |
400 | 33.9 | 35.3 | 39.3 | 41.6 | 51.0 | 56.3 | 6119 | 8.7 / 15 (17.5) |
500 | 38.0 | 39.4 | 43.4 | 45.7 | 55.2 | 60.9 | 7403 | 8.7 / 15 (17.5) |
630 | 42.4 | 43.8 | 47.9 | 50.2 | 59.9 | 66.1 | 9050 | 8.7 / 15 (17.5) |
35 | 19.3 | 20.7 | 24.7 | 27.0 | 36.9 | 40.7 | 2034 | 12 / 20 (24) |
50 | 20.4 | 21.8 | 25.8 | 28.1 | 37.9 | 41.8 | 2220 | 12 / 20 (24) |
70 | 22.0 | 23.4 | 27.4 | 29.7 | 39.5 | 43.5 | 2513 | 12 / 20 (24) |
95 | 23.55 | 25.0 | 29.0 | 31.3 | 41.0 | 45.3 | 2849 | 12 / 20 (24) |
120 | 25.06 | 26.5 | 30.5 | 32.8 | 42.5 | 46.9 | 3174 | 12 / 20 (24) |
150 | 26.37 | 27.8 | 31.8 | 34.1 | 43.7 | 48.3 | 3506 | 12 / 20 (24) |
185 | 28.05 | 29.5 | 33.5 | 35.8 | 45.4 | 50.1 | 3952 | 12 / 20 (24) |
240 | 30.4 | 31.8 | 35.8 | 38.1 | 47.6 | 52.5 | 4617 | 12 / 20 (24) |
300 | 32.8 | 34.2 | 38.2 | 40.5 | 50.0 | 55.1 | 5329 | 12 / 20 (24) |
400 | 35.9 | 37.3 | 41.3 | 43.6 | 53.2 | 58.6 | 6340 | 12 / 20 (24) |
500 | 40.0 | 41.4 | 45.5 | 47.8 | 57.4 | 63.3 | 7684 | 12 / 20 (24) |
630 | 44.4 | 45.8 | 49.9 | 52.2 | 61.9 | 68.3 | 9308 | 12 / 20 (24) |
50 | 25.4 | 26.8 | 30.8 | 33.1 | 42.8 | 47.2 | 2663 | 18 / 30 (36) |
70 | 27.0 | 28.4 | 32.4 | 34.7 | 44.3 | 48.9 | 2985 | 18 / 30 (36) |
95 | 28.8 | 30.2 | 34.0 | 36.3 | 45.9 | 50.6 | 3319 | 18 / 30 (36) |
120 | 30.06 | 31.5 | 35.5 | 37.8 | 47.3 | 52.2 | 3657 | 18 / 30 (36) |
150 | 31.37 | 32.8 | 36.8 | 39.1 | 48.6 | 53.6 | 3994 | 18 / 30 (36) |
185 | 33.05 | 34.5 | 38.5 | 40.8 | 50.2 | 55.4 | 4453 | 18 / 30 (36) |
240 | 35.4 | 36.8 | 40.8 | 43.1 | 52.7 | 58.1 | 5159 | 18 / 30 (36) |
300 | 37.8 | 39.2 | 43.2 | 45.5 | 55.2 | 60.9 | 5945 | 18 / 30 (36) |
400 | 40.9 | 42.3 | 46.4 | 48.7 | 58.5 | 64.5 | 6981 | 18 / 30 (36) |
500 | 45.0 | 46.4 | 50.5 | 52.8 | 62.7 | 69.1 | 8354 | 18 / 30 (36) |
3芯
导体截面积 | 加上绝缘的外径 | 加上绝缘屏蔽的外径 | 加上内护套的外径 | 加上铠装的外径 | 最小外径 | 最大外径 | 重量 | 额定电压 Uo/ U(Um) |
---|---|---|---|---|---|---|---|---|
(mm²) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg/km) | (kv) |
25 | 12.3 | 13.7 | 36.7 | 39.0 | 44.6 | 49.2 | 3534 | 3.6 / 6 (7.2) |
35 | 13.3 | 14.7 | 38.9 | 41.2 | 46.8 | 51.6 | 4006 | 3.6 / 6 (7.2) |
50 | 14.4 | 15.8 | 41.4 | 43.7 | 49.2 | 54.2 | 4584 | 3.6 / 6 (7.2) |
70 | 16.0 | 17.4 | 44.9 | 47.2 | 52.6 | 58.0 | 5502 | 3.6 / 6 (7.2) |
95 | 17.55 | 19.0 | 48.4 | 50.7 | 56.0 | 61.7 | 6575 | 3.6 / 6 (7.2) |
120 | 19.06 | 20.5 | 51.7 | 54.0 | 59.2 | 65.3 | 7604 | 3.6 / 6 (7.2) |
150 | 20.37 | 21.8 | 54.6 | 56.9 | 62.0 | 68.4 | 8663 | 3.6 / 6 (7.2) |
185 | 22.05 | 23.5 | 58.3 | 60.6 | 65.6 | 72.3 | 10103 | 3.6 / 6 (7.2) |
240 | 24.6 | 26.0 | 63.8 | 66.1 | 70.9 | 78.2 | 12332 | 3.6 / 6 (7.2) |
25 | 14.1 | 15.5 | 40.7 | 43.0 | 48.5 | 53.5 | 3991 | 6 / 10 (12) |
35 | 15.1 | 16.5 | 42.9 | 45.2 | 50.6 | 55.9 | 4489 | 6 / 10 (12) |
50 | 16.2 | 17.6 | 45.3 | 47.6 | 53.0 | 58.4 | 5090 | 6 / 10 (12) |
70 | 17.8 | 19.2 | 48.8 | 51.1 | 56.4 | 62.2 | 6032 | 6 / 10 (12) |
95 | 19.35 | 20.8 | 52.4 | 54.7 | 59.8 | 66.0 | 7130 | 6 / 10 (12) |
120 | 20.86 | 22.3 | 53.7 | 58.0 | 63.1 | 69.6 | 8136 | 6 / 10 (12) |
150 | 22.17 | 23.6 | 58.5 | 60.8 | 65.8 | 72.5 | 9276 | 6 / 10 (12) |
185 | 23.85 | 25.3 | 62.3 | 64.6 | 69.5 | 76.6 | 10736 | 6 / 10 (12) |
240 | 26.2 | 27.6 | 67.3 | 69.6 | 74.3 | 82.0 | 12940 | 6 / 10 (12) |
25 | 16.3 | 17.7 | 45.5 | 47.8 | 53.2 | 58.6 | 4609 | 8.7 / 15 (17.5) |
35 | 17.3 | 18.7 | 47.7 | 50.0 | 55.3 | 61.0 | 5133 | 8.7 / 15 (17.5) |
50 | 18.4 | 19.8 | 50.2 | 52.5 | 57.7 | 63.7 | 5757 | 8.7 / 15 (17.5) |
70 | 20.0 | 21.4 | 53.7 | 56.0 | 61.1 | 67.4 | 6731 | 8.7 / 15 (17.5) |
95 | 21.55 | 23.0 | 57.2 | 59.5 | 64.5 | 71.2 | 7866 | 8.7 / 15 (17.5) |
120 | 23.06 | 24.5 | 60.5 | 62.8 | 67.7 | 74.7 | 8960 | 8.7 / 15 (17.5) |
150 | 24.37 | 25.8 | 63.4 | 65.7 | 70.5 | 77.8 | 10063 | 8.7 / 15 (17.5) |
185 | 26.05 | 27.5 | 67.1 | 69.4 | 74.1 | 81.7 | 11565 | 8.7 / 15 (17.5) |
240 | 28.4 | 29.8 | 72.2 | 74.5 | 79.2 | 87.4 | 13856 | 8.7 / 15 (17.5) |
300 | 30.8 | 32.2 | 77.4 | 81.1 | 86.0 | 94.9 | 17304 | 8.7 / 15 (17.5) |
35 | 19.3 | 20.7 | 52.1 | 54.4 | 59.6 | 65.7 | 5751 | 12 / 20 (24) |
50 | 20.4 | 21.8 | 54.6 | 56.9 | 62.0 | 68.4 | 6397 | 12 / 20 (24) |
70 | 22.0 | 23.4 | 58.1 | 60.4 | 65.4 | 72.1 | 7409 | 12 / 20 (24) |
95 | 23.55 | 25.0 | 61.6 | 63.9 | 68.8 | 75.9 | 8563 | 12 / 20 (24) |
120 | 25.06 | 26.5 | 64.9 | 67.2 | 72.0 | 79.4 | 9687 | 12 / 20 (24) |
150 | 26.37 | 27.8 | 67.8 | 70.1 | 74.8 | 82.5 | 10823 | 12 / 20 (24) |
185 | 28.05 | 29.5 | 71.5 | 73.8 | 78.6 | 86.7 | 12398 | 12 / 20 (24) |
240 | 30.4 | 31.8 | 76.6 | 80.2 | 85.2 | 93.9 | 15715 | 12 / 20 (24) |
50 | 25.4 | 26.8 | 65.6 | 67.9 | 72.7 | 80.1 | 8167 | 18 / 30 (36) |
70 | 27.0 | 28.4 | 69.1 | 71.4 | 76.0 | 83.9 | 9308 | 18 / 30 (36) |
95 | 28.55 | 30.0 | 72.6 | 74.9 | 79.6 | 87.8 | 10535 | 18 / 30 (36) |
120 | 30.06 | 31.5 | 75.9 | 79.6 | 84.6 | 93.3 | 12756 | 18 / 30 (36) |
150 | 31.37 | 32.8 | 78.8 | 82.4 | 87.5 | 96.5 | 14027 | 18 / 30 (36) |
185 | 33.05 | 34.5 | 82.5 | 86.2 | 91.4 | 100.8 | 15732 | 18 / 30 (36) |
