铁路应用GKW牵引电缆&高温电缆
铁路应用牵引电缆
3GKW-MW/S EMC 0.6/1KV中等壁多芯屏蔽电缆
应用
多芯电力及控制电缆,适合铁路车辆内外保护性,固定安装,用于直流或交流电技术特别是变流技术中固定或移动部件的连接。
标准
BS 6853 -Ia
DIN 5510-2 1-4
NFF 16-101 F0

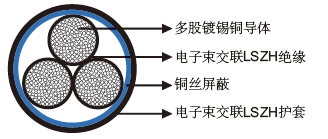

结构
导体 :Class 5 多股镀锡铜导体,遵照 IEC 60228/VDE 0295 标准。
绝缘 : 电子束交联 LSZH 材料。
屏蔽 :铜丝屏蔽。
护套 :电子束交联 LSZH 材料。
20℃时的电气特性
标称导体截面积 | mm2 | 1.5 | 2.5 | 4.0 | 10 | 16 | 25 | 35 | 50 |
---|---|---|---|---|---|---|---|---|---|
最大导体电阻 | Ω/km | 13.7 | 8.21 | 5.09 | 1.95 | 1.24 | 0.795 | 0.565 | 0.393 |
电压KV | 0.6/1 |
机械和热性能
最小弯曲半径:4xOD ( 固定安装) ;8xOD ( 移动安装)
温度范围:-60℃ ~+120℃ ( 固定安装) ;-40℃ ~+90℃ ( 移动安装)
短路温度:+280℃
尺寸和重量
芯数&标称导体截面积 No.×mm2 | 导体股数/每股直径 No/mm | 标称绝缘厚度 mm | 标称外径 mm | 标称重量 kg/km | |
---|---|---|---|---|---|
2×0.5 | 19/0.18 | 16/0.20 | 0.5 | 6.6 | 68 |
3×0.5 | 19/0.18 | 16/0.20 | 0.5 | 6.9 | 75 |
4×0.5 | 19/0.18 | 16/0.20 | 0.5 | 7.5 | 81 |
5×0.5 | 19/0.18 | 16/0.20 | 0.5 | 8.2 | 93 |
6×0.5 | 19/0.18 | 16/0.20 | 0.5 | 8.8 | 111 |
7×0.5 | 19/0.18 | 16/0.20 | 0.5 | 9.8 | 125 |
8×0.5 | 19/0.18 | 16/0.20 | 0.5 | 10.3 | 143 |
9×0.5 | 19/0.18 | 16/0.20 | 0.5 | 10.8 | 149 |
10×0.5 | 19/0.18 | 16/0.20 | 0.5 | 11.0 | 154 |
12×0.5 | 19/0.18 | 16/0.20 | 0.5 | 12.3 | 175 |
14×0.5 | 19/0.18 | 16/0.20 | 0.5 | 13.0 | 198 |
15×0.5 | 19/0.18 | 16/0.20 | 0.5 | 13.4 | 210 |
16×0.5 | 19/0.18 | 16/0.20 | 0.5 | 13.7 | 223 |
20×0.5 | 19/0.18 | 16/0.20 | 0.5 | 14.0 | 274 |
24×0.5 | 19/0.18 | 16/0.20 | 0.5 | 14.2 | 310 |
27×0.5 | 19/0.18 | 16/0.20 | 0.5 | 14.5 | 343 |
9×2×0.5 | 19/0.18 | 16/0.20 | 0.5 | 20.6 | 540 |
2×0.75 | 19/0.21 | 24/0.20 | 0.5 | 7.2 | 80 |
3×0.75 | 19/0.21 | 24/0.20 | 0.5 | 7.5 | 90 |
4×0.75 | 19/0.21 | 24/0.20 | 0.5 | 8.3 | 116 |
5×0.75 | 19/0.21 | 24/0.20 | 0.5 | 9.1 | 133 |
6×0.75 | 19/0.21 | 24/0.20 | 0.5 | 9.9 | 165 |
7×0.75 | 19/0.21 | 24/0.20 | 0.5 | 10.7 | 186 |
8×0.75 | 19/0.21 | 24/0.20 | 0.5 | 11.5 | 194 |
9×0.75 | 19/0.21 | 24/0.20 | 0.5 | 12.3 | 220 |
10×0.75 | 19/0.21 | 24/0.20 | 0.5 | 12.6 | 250 |
12×0.75 | 19/0.21 | 24/0.20 | 0.5 | 13.2 | 278 |
14×0.75 | 19/0.21 | 24/0.20 | 0.5 | 13.8 | 300 |
16×0.75 | 19/0.21 | 24/0.20 | 0.5 | 14.4 | 348 |
20×0.75 | 19/0.21 | 24/0.20 | 0.5 | 14.5 | 354 |
24×0.75 | 19/0.21 | 24/0.20 | 0.5 | 15.6 | 401 |
27×0.75 | 19/0.21 | 24/0.20 | 0.5 | 16.3 | 459 |
5×2×0.75 | 19/0.21 | 24/0.20 | 0.5 | 16.0 | 350 |
2×1.0 | 32/0.20 | 0.55 | 7.4 | 93 | |
3×1.0 | 32/0.20 | 0.55 | 8.1 | 114 | |
4×1.0 | 32/0.20 | 0.55 | 8.8 | 140 | |
5×1.0 | 32/0.20 | 0.55 | 9.8 | 158 | |
6×1.0 | 32/0.20 | 0.55 | 10.8 | 170 | |
7×1.0 | 32/0.20 | 0.55 | 11.8 | 189 | |
8×1.0 | 32/0.20 | 0.55 | 11.8 | 219 | |
9×1.0 | 32/0.20 | 0.55 | 12.0 | 223 | |
10×1.0 | 32/0.20 | 0.55 | 12.2 | 234 | |
12×1.0 | 32/0.20 | 0.55 | 12.5 | 268 |
芯数&标称导体截面积 No.×mm2 | 导体股数/每股直径 No/mm | 标称绝缘厚度 mm | 标称外径 mm | 标称重量 kg/km |
---|---|---|---|---|
14×1.0 | 32/0.20 | 0.55 | 13.2 | 305 |
16×1.0 | 32/0.20 | 0.55 | 13.9 | 339 |
20×1.0 | 32/0.20 | 0.55 | 15.6 | 430 |
24×1.0 | 32/0.20 | 0.55 | 17.1 | 511 |
27×1.0 | 32/0.20 | 0.55 | 17.7 | 560 |
2×1.5 | 30/0.25 | 0.55 | 8.1 | 114 |
3×1.5 | 30/0.25 | 0.55 | 8.6 | 124 |
4×1.5 | 30/0.25 | 0.55 | 9.9 | 139 |
5×1.5 | 30/0.25 | 0.55 | 10.9 | 150 |
6×1.5 | 30/0.25 | 0.55 | 11.7 | 173 |
7×1.5 | 30/0.25 | 0.55 | 13.2 | 203 |
8×1.5 | 30/0.25 | 0.55 | 14.6 | 243 |
9×1.5 | 30/0.25 | 0.55 | 14.9 | 274 |
10×1.5 | 30/0.25 | 0.55 | 15.5 | 299 |
12×1.5 | 30/0.25 | 0.55 | 16.2 | 342 |
14×1.5 | 30/0.25 | 0.55 | 16.8 | 390 |
16×1.5 | 30/0.25 | 0.55 | 17.5 | 560 |
20×1.5 | 30/0.25 | 0.55 | 17.6 | 614 |
24×1.5 | 30/0.25 | 0.55 | 19.3 | 670 |
27×1.5 | 30/0.25 | 0.55 | 19.9 | 734 |
6×2×1.5 | 30/0.25 | 0.55 | 18.9 | 540 |
2×2.5 | 50/0.25 | 0.6 | 9.6 | 160 |
3×2.5 | 50/0.25 | 0.6 | 10.5 | 200 |
4×2.5 | 50/0.25 | 0.6 | 11.3 | 220 |
5×2.5 | 50/0.25 | 0.6 | 12.7 | 250 |
6×2.5 | 50/0.25 | 0.6 | 13.7 | 345 |
7×2.5 | 50/0.25 | 0.6 | 14.8 | 400 |
8×2.5 | 50/0.25 | 0.6 | 14.9 | 410 |
9×2.5 | 50/0.25 | 0.6 | 16.0 | 437 |
10×2.5 | 50/0.25 | 0.6 | 16.0 | 461 |
12×2.5 | 50/0.25 | 0.6 | 16.8 | 531 |
14×2.5 | 50/0.25 | 0.6 | 17.7 | 601 |
16×2.5 | 50/0.25 | 0.6 | 19.0 | 691 |
20×2.5 | 50/0.25 | 0.6 | 23.3 | 969 |
24×2.5 | 50/0.25 | 0.6 | 23.5 | 1004 |
27×2.5 | 50/0.25 | 0.6 | 24.0 | 1104 |
2×4 | 56/0.30 | 0.65 | 10.8 | 216 |
3×4 | 56/0.30 | 0.65 | 11.8 | 260 |
4×4 | 56/0.30 | 0.65 | 13.3 | 345 |
5×4 | 56/0.30 | 0.65 | 14.7 | 440 |
5×4 | 56/0.30 | 0.65 | 14.7 | 460 |
5×4 | 56/0.30 | 0.65 | 15.7 | 485 |
5×4 | 56/0.30 | 0.65 | 17.2 | 584 |
5×4 | 56/0.30 | 0.65 | 18.3 | 605 |
5×4 | 56/0.30 | 0.65 | 18.3 | 641 |
芯数&标称导体截面积 No.×mm2 | 导体股数/每股直径 No/mm | 标称绝缘厚度 mm | 标称外径 mm | 标称重量 kg/km | |
---|---|---|---|---|---|
12×4 | 56/0.30 | 0.65 | 19.5 | 760 | |
2×6 | 84/0.30 | 0.7 | 12.1 | 291 | |
3×6 | 84/0.30 | 0.7 | 13.8 | 370 | |
4×6 | 84/0.30 | 0.7 | 16.3 | 458 | |
5×6 | 84/0.30 | 0.7 | 17.4 | 620 | |
6×6 | 84/0.30 | 0.7 | 17.4 | 640 | |
7×6 | 84/0.30 | 0.7 | 17.8 | 673 | |
8×6 | 84/0.30 | 0.7 | 19.4 | 774 | |
9×6 | 84/0.30 | 0.7 | 20.7 | 820 | |
10×6 | 84/0.30 | 0.7 | 20.7 | 875 | |
12×6 | 84/0.30 | 0.7 | 21.8 | 1026 | |
2×10 | 80/0.40 | 0.8 | 14.3 | 432 | |
3×10 | 80/0.40 | 0.8 | 17.1 | 580 | |
4×10 | 80/0.40 | 0.8 | 19.2 | 750 | |
5×10 | 80/0.40 | 0.8 | 21.1 | 850 | |
6×10 | 80/0.40 | 0.8 | 21.9 | 875 | |
7×10 | 80/0.40 | 0.8 | 22.8 | 1019 | |
8×10 | 80/0.40 | 0.8 | 23.7 | 1190 | |
2×16 | 119/0.40 | 126/0.40 | 0.9 | 18.2 | 660 |
3×16 | 119/0.40 | 126/0.40 | 0.9 | 20.5 | 820 |
4×16 | 119/0.40 | 126/0.40 | 0.9 | 20.4 | 874 |
5×16 | 119/0.40 | 126/0.40 | 0.9 | 22.7 | 1083 |
6×16 | 119/0.40 | 126/0.40 | 0.9 | 24.9 | 1294 |
7×16 | 119/0.40 | 126/0.40 | 0.9 | 27.1 | 1521 |
8×16 | 119/0.40 | 126/0.40 | 0.9 | 29.6 | 1808 |
2×25 | 182/0.40 | 196/0.40 | 1.0 | 22.9 | 990 |
3×25 | 182/0.40 | 196/0.40 | 1.0 | 24.4 | 1075 |
4×25 | 182/0.40 | 196/0.40 | 1.0 | 25.2 | 1404 |
5×25 | 182/0.40 | 196/0.40 | 1.0 | 27.0 | 1750 |
3×35 | 266/0.40 | 276/0.40 | 1.1 | 27.9 | 1600 |
6×35 | 266/0.40 | 276/0.40 | 1.1 | 39.7 | 3350 |
2×50 | 378/0.40 | 396/0.40 | 1.2 | 29.8 | 1760 |
