铁路牵引电缆 | ||||||||||||||
|
铁路应用GKW牵引电缆&高温电缆
铁路应用牵引电缆
3GKW-MW/S 0.6/1KV中等壁多芯电缆
应用
多芯电力及控制电缆,适合铁路车辆内外保护性,固定安装,用于直流或交流电技术特别是变流技术中固定或移动部件的连接。
标准
BS 6853 -Ia
DIN 5510-2 1-4
NFF 16-101 F0

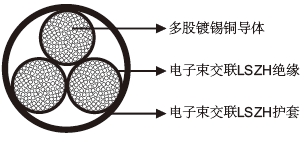

结构
导体 :Class 5 多股镀锡铜导体,遵照 IEC 60228/VDE 0295 标准。
绝缘 : 电子束交联 LSZH 材料。
护套 :电子束交联 LSZH 材料。
20℃时的电气特性
标称导体截面积 | mm2 | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4.0 | 6.0 | 10 | 16 | 25 | 35 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
最大导体电阻 | Ω/km | 40.1 | 26.7 | 20.0 | 13.7 | 8.21 | 5.09 | 3.39 | 1.95 | 1.24 | 0.795 | 0.565 |
电压KV | 0.6/1 |
机械和热性能
最小弯曲半径:4xOD ( 固定安装) ;6xOD ( 移动安装)
温度范围:-60℃ ~+120℃ ( 固定安装) ;-40℃ ~+90℃ ( 移动安装)
短路温度:+280℃
尺寸和重量
芯数&标称导体截面积 No.×mm2 | 导体股数/每股直径 No/mm | 标称绝缘厚度 mm | 标称外径 mm | 标称重量 kg/km | |
2×0.5 | 19/0.18 | 16/0.20 | 0.5 | 5.9 | 39 |
3×0.5 | 19/0.18 | 16/0.20 | 0.5 | 6.1 | 50 |
4×0.5 | 19/0.18 | 16/0.20 | 0.5 | 7.0 | 55 |
5×0.5 | 19/0.18 | 16/0.20 | 0.5 | 7.3 | 74 |
6×0.5 | 19/0.18 | 16/0.20 | 0.5 | 7.5 | 85 |
7×0.5 | 19/0.18 | 16/0.20 | 0.5 | 9.1 | 99 |
8×0.5 | 19/0.18 | 16/0.20 | 0.5 | 9.3 | 111 |
9×0.5 | 19/0.18 | 16/0.20 | 0.5 | 9.5 | 114 |
10×0.5 | 19/0.18 | 16/0.20 | 0.5 | 9.5 | 122 |
12×0.5 | 19/0.18 | 16/0.20 | 0.5 | 10.0 | 145 |
14×0.5 | 19/0.18 | 16/0.20 | 0.5 | 10.5 | 163 |
16×0.5 | 19/0.18 | 16/0.20 | 0.5 | 11.2 | 185 |
18×0.5 | 19/0.18 | 16/0.20 | 0.5 | 12.7 | 205 |
20×0.5 | 19/0.18 | 16/0.20 | 0.5 | 13.0 | 233 |
24×0.5 | 19/0.18 | 16/0.20 | 0.5 | 13.9 | 264 |
27×0.5 | 19/0.18 | 16/0.20 | 0.5 | 14.5 | 295 |
36×0.5 | 19/0.18 | 16/0.20 | 0.5 | 16.3 | 386 |
48×0.5 | 19/0.18 | 16/0.20 | 0.5 | 19.0 | 516 |
2×0.75 | 19/0.21 | 24/0.20 | 0.5 | 6.0 | 49 |
3×0.75 | 19/0.21 | 24/0.20 | 0.5 | 6.8 | 63 |
4×0.75 | 19/0.21 | 24/0.20 | 0.5 | 6.9 | 77 |
5×0.75 | 19/0.21 | 24/0.20 | 0.5 | 8.4 | 96 |
6×0.75 | 19/0.21 | 24/0.20 | 0.5 | 8.7 | 107 |
7×0.75 | 19/0.21 | 24/0.20 | 0.5 | 9.1 | 131 |
8×0.75 | 19/0.21 | 24/0.20 | 0.5 | 10.9 | 147 |
9×0.75 | 19/0.21 | 24/0.20 | 0.5 | 11.3 | 152 |
10×0.75 | 19/0.21 | 24/0.20 | 0.5 | 11.6 | 162 |
12×0.75 | 19/0.21 | 24/0.20 | 0.5 | 11.9 | 175 |
14×0.75 | 19/0.21 | 24/0.20 | 0.5 | 12.1 | 213 |
16×0.75 | 19/0.21 | 24/0.20 | 0.5 | 12.4 | 241 |
20×0.75 | 19/0.21 | 24/0.20 | 0.5 | 15.2 | 325 |
24×0.75 | 19/0.21 | 24/0.20 | 0.5 | 15.6 | 349 |
27×0.75 | 19/0.21 | 24/0.20 | 0.5 | 16.1 | 385 |
36×0.75 | 19/0.21 | 24/0.20 | 0.5 | 18.1 | 505 |
48×0.75 | 19/0.21 | 24/0.20 | 0.5 | 21.2 | 678 |
2×1.0 | 32/0.20 | 0.55 | 6.4 | 59 | |
3×1.0 | 32/0.20 | 0.55 | 6.8 | 78 | |
4×1.0 | 32/0.20 | 0.55 | 7.4 | 93 | |
5×1.0 | 32/0.20 | 0.55 | 8.3 | 115 | |
6×1.0 | 32/0.20 | 0.55 | 10.0 | 130 | |
7×1.0 | 32/0.20 | 0.55 | 10.3 | 158 | |
8×1.0 | 32/0.20 | 0.55 | 10.7 | 181 | |
9×1.0 | 32/0.20 | 0.55 | 12.5 | 200 | |
10×1.0 | 32/0.20 | 0.55 | 12.7 | 210 | |
12×1.0 | 32/0.20 | 0.55 | 12.9 | 234 |
芯数&标称导体截面积 No.×mm2 | 导体股数/每股直径 No/mm | 标称绝缘厚度 mm | 标称外径 mm | 标称重量 kg/km |
---|---|---|---|---|
14×1.0 | 32/0.20 | 0.55 | 13.2 | 265 |
16×1.0 | 32/0.20 | 0.55 | 13.5 | 300 |
20×1.0 | 32/0.20 | 0.55 | 14.7 | 377 |
24×1.0 | 32/0.20 | 0.55 | 16.9 | 433 |
25×1.0 | 32/0.20 | 0.55 | 18.7 | 519 |
27×1.0 | 32/0.20 | 0.55 | 19.0 | 600 |
36×1.0 | 32/0.20 | 0.55 | 19.9 | 644 |
48×1.0 | 32/0.20 | 0.55 | 22.9 | 837 |
2×1.5 | 30/0.25 | 0.55 | 7.5 | 75 |
3×1.5 | 30/0.25 | 0.55 | 8.0 | 96 |
4×1.5 | 30/0.25 | 0.55 | 8.3 | 120 |
5×1.5 | 30/0.25 | 0.55 | 10.2 | 146 |
6×1.5 | 30/0.25 | 0.55 | 11.6 | 173 |
7×1.5 | 30/0.25 | 0.55 | 12.1 | 185 |
8×1.5 | 30/0.25 | 0.55 | 12.5 | 207 |
9×1.5 | 30/0.25 | 0.55 | 12.9 | 210 |
10×1.5 | 30/0.25 | 0.55 | 13.3 | 236 |
12×1.5 | 30/0.25 | 0.55 | 14.2 | 305 |
14×1.5 | 30/0.25 | 0.55 | 14.6 | 346 |
16×1.5 | 30/0.25 | 0.55 | 15.0 | 393 |
20×1.5 | 30/0.25 | 0.55 | 16.5 | 500 |
24×1.5 | 30/0.25 | 0.55 | 19.1 | 582 |
27×1.5 | 30/0.25 | 0.55 | 19.7 | 644 |
36×1.5 | 30/0.25 | 0.55 | 23.0 | 905 |
48×1.5 | 30/0.25 | 0.55 | 25.7 | 1120 |
2×2.5 | 50/0.25 | 0.6 | 8.5 | 115 |
3×2.5 | 50/0.25 | 0.6 | 8.9 | 149 |
4×2.5 | 50/0.25 | 0.6 | 9.9 | 183 |
5×2.5 | 50/0.25 | 0.6 | 11.1 | 228 |
6×2.5 | 50/0.25 | 0.6 | 12.1 | 265 |
7×2.5 | 50/0.25 | 0.6 | 13.0 | 309 |
8×2.5 | 50/0.25 | 0.6 | 14.3 | 360 |
9×2.5 | 50/0.25 | 0.6 | 15.4 | 366 |
10×2.5 | 50/0.25 | 0.6 | 15.1 | 400 |
12×2.5 | 50/0.25 | 0.6 | 15.9 | 467 |
14×2.5 | 50/0.25 | 0.6 | 16.5 | 532 |
16×2.5 | 50/0.25 | 0.6 | 17.5 | 600 |
20×2.5 | 50/0.25 | 0.6 | 20.1 | 777 |
24×2.5 | 50/0.25 | 0.6 | 21.4 | 873 |
27×2.5 | 50/0.25 | 0.6 | 22.5 | 972 |
2×4 | 56/0.30 | 0.65 | 9.5 | 151 |
3×4 | 56/0.30 | 0.65 | 10.2 | 207 |
4×4 | 56/0.30 | 0.65 | 11.3 | 261 |
5×4 | 56/0.30 | 0.65 | 12.6 | 324 |
6×4 | 56/0.30 | 0.65 | 13.9 | 379 |
7×4 | 56/0.30 | 0.65 | 15.2 | 433 |
8×4 | 56/0.30 | 0.65 | 16.3 | 518 |
9×4 | 56/0.30 | 0.65 | 17.5 | 550 |
芯数&标称导体截面积 No.×mm2 | 导体股数/每股直径 No/mm | 标称绝缘厚度 mm | 标称外径 mm | 标称重量 kg/km | |
---|---|---|---|---|---|
10×4 | 56/0.30 | 0.65 | 17.7 | 581 | |
12×4 | 56/0.30 | 0.65 | 18.3 | 675 | |
14×4 | 56/0.30 | 0.65 | 19.2 | 785 | |
16×4 | 56/0.30 | 0.65 | 20.4 | 886 | |
20×4 | 56/0.30 | 0.65 | 23.0 | 1129 | |
24×4 | 56/0.30 | 0.65 | 24.7 | 1276 | |
27×4 | 56/0.30 | 0.65 | 26.1 | 1435 | |
2×6 | 84/0.30 | 0.7 | 10.7 | 205 | |
3×6 | 84/0.30 | 0.7 | 11.4 | 279 | |
4×6 | 84/0.30 | 0.7 | 12.6 | 353 | |
5×6 | 84/0.30 | 0.7 | 14.0 | 436 | |
6×6 | 84/0.30 | 0.7 | 15.7 | 501 | |
7×6 | 84/0.30 | 0.7 | 17.2 | 597 | |
2×10 | 80/0.40 | 0.8 | 12.8 | 313 | |
3×10 | 80/0.40 | 0.8 | 13.7 | 433 | |
4×10 | 80/0.40 | 0.8 | 15.4 | 514 | |
5×10 | 80/0.40 | 0.8 | 17.0 | 641 | |
6×10 | 80/0.40 | 0.8 | 19.1 | 794 | |
7×10 | 80/0.40 | 0.8 | 20.7 | 919 | |
2×16 | 119/0.40 | 126/0.40 | 0.9 | 16.5 | 482 |
3×16 | 119/0.40 | 126/0.40 | 0.9 | 17.6 | 590 |
4×16 | 119/0.40 | 126/0.40 | 0.9 | 19.8 | 787 |
5×16 | 119/0.40 | 126/0.40 | 0.9 | 22.1 | 992 |
6×16 | 119/0.40 | 126/0.40 | 0.9 | 24.3 | 1192 |
7×16 | 119/0.40 | 126/0.40 | 0.9 | 26.5 | 1409 |
2×25 | 182/0.40 | 196/0.40 | 1.0 | 19.9 | 716 |
3×25 | 182/0.40 | 196/0.40 | 1.0 | 21.4 | 899 |
4×25 | 182/0.40 | 196/0.40 | 1.0 | 23.8 | 1182 |
5×25 | 182/0.40 | 196/0.40 | 1.0 | 26.4 | 1482 |
6×25 | 182/0.40 | 196/0.40 | 1.0 | 29.9 | 1818 |
7×25 | 182/0.40 | 196/0.40 | 1.0 | 32.1 | 2128 |
2×35 | 266/0.40 | 276/0.40 | 1.1 | 22.3 | 775 |
3×35 | 266/0.40 | 276/0.40 | 1.1 | 24.0 | 938 |
4×35 | 266/0.40 | 276/0.40 | 1.1 | 26.7 | 1230 |
5×35 | 266/0.40 | 276/0.40 | 1.1 | 29.6 | 1543 |
6×35 | 266/0.40 | 276/0.40 | 1.1 | 33.3 | 1890 |
7×35 | 266/0.40 | 276/0.40 | 1.1 | 36.7 | 2263 |
