IEC 60092标准海洋工程及船用电缆
IEC 60092标准MariTox船用阻燃中压电缆
MTX 3.6/6kV、6/10kV、8.7/15kV XLPE绝缘，LSOH (SHF1) 护套，铠装阻燃中压电力电缆（无卤内衬层）
应用
该铠装中压电缆适用于船体上任何位置的固定安装，符合IEC 60092-352标准。该电缆阻燃、低烟、无卤。
标准
IEC 60092-350/351/354/359
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

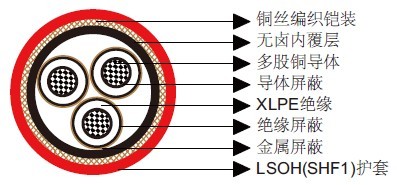

结构
导体：Class 2多股铜导体。
导体屏蔽：半导电层（带/复合物）。
绝缘：XLPE。
绝缘屏蔽：半导电层（带/复合物）。
金属屏蔽：铜带。
内衬层：无卤化合物。
铠装：铜丝编织。
外护套：LSOH（SHF1）。SHF2可选。
线芯识别
彩色标识带应插入金属屏蔽层下。
3芯：红、黄、蓝。
机械和热性能
固定安装弯曲半径：12×OD（单芯）；9×OD（三芯）
温度范围：-30℃～ +80℃
尺寸和重量
3.6/6kV
| 订货代码 | 结构 芯数×截面积 （mm2） |
标称绝缘厚度 mm |
标称护套厚度 mm |
标称外径 mm |
标称重量 kg/km |
|---|---|---|---|---|---|
| MTX-3.6/6KV-RMZ1-1C10 | 1×10 | 2.5 | 1.5 | 19.6 | 580 |
| MTX-3.6/6KV-RMZ1-1C16 | 1×16 | 2.5 | 1.5 | 20.5 | 670 |
| MTX-3.6/6KV-RMZ1-1C25 | 1×25 | 2.5 | 1.5 | 21.8 | 800 |
| MTX-3.6/6KV-RMZ1-1C35 | 1×35 | 2.5 | 1.6 | 23.2 | 940 |
| MTX-3.6/6KV-RMZ1-1C50 | 1×50 | 2.5 | 1.6 | 24.5 | 1100 |
| MTX-3.6/6KV-RMZ1-1C70 | 1×70 | 2.5 | 1.7 | 26.5 | 1380 |
| MTX-3.6/6KV-RMZ1-1C95 | 1×95 | 2.5 | 1.8 | 28.6 | 1700 |
| MTX-3.6/6KV-RMZ1-1C120 | 1×120 | 2.5 | 1.9 | 30.4 | 2000 |
| MTX-3.6/6KV-RMZ1-1C150 | 1×150 | 2.5 | 1.9 | 32.0 | 2320 |
| MTX-3.6/6KV-RMZ1-1C185 | 1×185 | 2.5 | 2.0 | 34.4 | 2770 |
| MTX-3.6/6KV-RMZ1-1C240 | 1×240 | 2.6 | 2.1 | 38.0 | 3530 |
| MTX-3.6/6KV-RMZ1-1C300 | 1×300 | 2.8 | 2.3 | 41.2 | 4270 |
| MTX-3.6/6KV-RMZ1-1C400 | 1×400 | 3.0 | 2.4 | 45.6 | 5410 |
| MTX-3.6/6KV-RMZ1-1C500 | 1×500 | 3.2 | 2.5 | 48.9 | 6390 |
| MTX-3.6/6KV-RMZ1-1C630 | 1×630 | 3.2 | 2.7 | 53.5 | 8030 |
| MTX-3.6/6KV-RMZ1-3C10 | 3×10 | 2.5 | 2.0 | 35.4 | 1620 |
| MTX-3.6/6KV-RMZ1-3C16 | 3×16 | 2.5 | 2.2 | 38.4 | 2030 |
| MTX-3.6/6KV-RMZ1-3C25 | 3×25 | 2.5 | 2.3 | 41.4 | 2470 |
| MTX-3.6/6KV-RMZ1-3C35 | 3×35 | 2.5 | 2.4 | 44.2 | 2930 |
| MTX-3.6/6KV-RMZ1-3C50 | 3×50 | 2.5 | 2.5 | 47.6 | 3510 |
| MTX-3.6/6KV-RMZ1-3C70 | 3×70 | 2.5 | 2.7 | 51.9 | 4390 |
| MTX-3.6/6KV-RMZ1-3C95 | 3×95 | 2.5 | 2.8 | 56.6 | 5470 |
| MTX-3.6/6KV-RMZ1-3C120 | 3×120 | 2.5 | 3.0 | 60.4 | 6450 |
| MTX-3.6/6KV-RMZ1-3C150 | 3×150 | 2.5 | 3.1 | 64.1 | 7490 |
| MTX-3.6/6KV-RMZ1-3C185 | 3×185 | 2.5 | 3.3 | 68.3 | 8850 |
| MTX-3.6/6KV-RMZ1-3C240 | 3×240 | 2.6 | 3.5 | 75.4 | 11080 |
6/10kV
| 订货代码 | 结构 芯数×截面积 （mm2） |
标称绝缘厚度 mm |
标称护套厚度 mm |
标称外径 mm |
标称重量 kg/km |
|---|---|---|---|---|---|
| MTX-6/10KV-RMZ1-1C16 | 1×16 | 3.4 | 1.6 | 22.5 | 750 |
| MTX-6/10KV-RMZ1-1C25 | 1×25 | 3.4 | 1.6 | 23.8 | 890 |
| MTX-6/10KV-RMZ1-1C35 | 1×35 | 3.4 | 1.7 | 25.2 | 1040 |
| MTX-6/10KV-RMZ1-1C50 | 1×50 | 3.4 | 1.7 | 26.5 | 1200 |
| MTX-6/10KV-RMZ1-1C70 | 1×70 | 3.4 | 1.8 | 28.5 | 1480 |
| MTX-6/10KV-RMZ1-1C95 | 1×95 | 3.4 | 1.9 | 30.6 | 1810 |
| MTX-6/10KV-RMZ1-1C120 | 1×120 | 3.4 | 1.9 | 32.2 | 2100 |
| MTX-6/10KV-RMZ1-1C150 | 1×150 | 3.4 | 2.0 | 34.4 | 2470 |
| MTX-6/10KV-RMZ1-1C185 | 1×185 | 3.4 | 2.1 | 36.9 | 2980 |
| MTX-6/10KV-RMZ1-1C240 | 1×240 | 3.4 | 2.2 | 39.8 | 3650 |
| MTX-6/10KV-RMZ1-1C300 | 1×300 | 3.4 | 2.3 | 42.4 | 4340 |
| MTX-6/10KV-RMZ1-1C400 | 1×400 | 3.4 | 2.5 | 46.6 | 5480 |
| MTX-6/10KV-RMZ1-1C500 | 1×500 | 3.4 | 2.6 | 49.5 | 6430 |
| MTX-6/10KV-RMZ1-1C630 | 1×630 | 3.4 | 2.7 | 53.9 | 8040 |
| MTX-6/10KV-RMZ1-3C16 | 3×16 | 3.4 | 2.3 | 42.5 | 2330 |
| MTX-6/10KV-RMZ1-3C25 | 3×25 | 3.4 | 2.4 | 45.9 | 2840 |
| MTX-6/10KV-RMZ1-3C35 | 3×35 | 3.4 | 2.5 | 48.7 | 3310 |
| MTX-6/10KV-RMZ1-3C50 | 3×50 | 3.4 | 2.7 | 51.9 | 3890 |
| MTX-6/10KV-RMZ1-3C70 | 3×70 | 3.4 | 2.8 | 56.4 | 4820 |
| MTX-6/10KV-RMZ1-3C95 | 3×95 | 3.4 | 3.0 | 60.8 | 5900 |
| MTX-6/10KV-RMZ1-3C120 | 3×120 | 3.4 | 3.1 | 64.5 | 6880 |
| MTX-6/10KV-RMZ1-3C150 | 3×150 | 3.4 | 3.3 | 68.3 | 7960 |
| MTX-6/10KV-RMZ1-3C185 | 3×185 | 3.4 | 3.4 | 72.8 | 9390 |
| MTX-6/10KV-RMZ1-3C240 | 3×240 | 3.4 | 3.7 | 79.2 | 11570 |
8.7/15kV
| 订货代码 | 结构 芯数×截面积 （mm2） |
标称绝缘厚度 mm |
标称护套厚度 mm |
标称外径 mm |
标称重量 kg/km |
|---|---|---|---|---|---|
| MTX-8.7/15KV-RMZ1-1C25 | 1×25 | 4.5 | 1.7 | 26.2 | 1020 |
| MTX-8.7/15KV-RMZ1-1C35 | 1×35 | 4.5 | 1.8 | 27.6 | 1170 |
| MTX-8.7/15KV-RMZ1-1C50 | 1×50 | 4.5 | 1.8 | 28.9 | 1340 |
| MTX-8.7/15KV-RMZ1-1C70 | 1×70 | 4.5 | 1.9 | 30.9 | 1630 |
| MTX-8.7/15KV-RMZ1-1C95 | 1×95 | 4.5 | 2.0 | 33.4 | 2000 |
| MTX-8.7/15KV-RMZ1-1C120 | 1×120 | 4.5 | 2.0 | 35.0 | 2300 |
| MTX-8.7/15KV-RMZ1-1C150 | 1×150 | 4.5 | 2.1 | 37.3 | 2730 |
| MTX-8.7/15KV-RMZ1-1C185 | 1×185 | 4.5 | 2.2 | 39.3 | 3180 |
| MTX-8.7/15KV-RMZ1-1C240 | 1×240 | 4.5 | 2.3 | 42.2 | 3860 |
| MTX-8.7/15KV-RMZ1-1C300 | 1×300 | 4.5 | 2.4 | 45.2 | 4600 |
| MTX-8.7/15KV-RMZ1-1C400 | 1×400 | 4.5 | 2.5 | 48.8 | 5690 |
| MTX-8.7/15KV-RMZ1-1C500 | 1×500 | 4.5 | 2.7 | 51.9 | 6680 |
| MTX-8.7/15KV-RMZ1-1C630 | 1×630 | 4.5 | 2.8 | 56.7 | 8360 |
| MTX-8.7/15KV-RMZ1-3C25 | 3×25 | 4.5 | 2.6 | 51.0 | 3280 |
| MTX-8.7/15KV-RMZ1-3C35 | 3×35 | 4.5 | 2.7 | 53.8 | 3770 |
| MTX-8.7/15KV-RMZ1-3C50 | 3×50 | 4.5 | 2.9 | 57.4 | 4430 |
| MTX-8.7/15KV-RMZ1-3C70 | 3×70 | 4.5 | 3.0 | 61.5 | 5340 |
| MTX-8.7/15KV-RMZ1-3C95 | 3×95 | 4.5 | 3.2 | 66.0 | 6460 |
| MTX-8.7/15KV-RMZ1-3C120 | 3×120 | 4.5 | 3.3 | 69.6 | 7460 |
| MTX-8.7/15KV-RMZ1-3C150 | 3×150 | 4.5 | 3.5 | 73.9 | 8640 |
| MTX-8.7/15KV-RMZ1-3C185 | 3×185 | 4.5 | 3.6 | 78.0 | 10040 |
| MTX-8.7/15KV-RMZ1-3C240 | 3×240 | 4.5 | 3.9 | 84.4 | 12270 |
