IEC 60092标准海洋工程及船用电缆
MRE-M2XH PiMF/TiMF 150/250V云母带+XLPE绝缘，LSOH（SHF1）护套，单独屏蔽防火仪表&控制缆（多对/多三线组）
应用
该电缆适用于船上不受机械损害的任意位置安全电路的固定安装，符合IEC 60092-352标准，用于需要防火的场合。该电缆防火、阻
燃、低压、无卤，适合安装在客船或其他商业船只上。
标准
IEC 60092-350/351/376/359
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

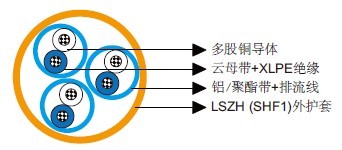

结构
导体：Class 2多股铜导体。
绝缘：云母带+XLPE。
成缆单元：对/三线组。
单独屏蔽：铝/聚酯带。
排流线：镀锡铜丝。
外护套：LSOH（SHF1）。SHF2可选。
线芯识别
对：白/蓝色印有对数及芯数。
三线组：白/蓝/红色印有三线组数。
机械和热性能
固定安装弯曲半径：6×OD（OD>25mm）；4×OD（OD ≤25mm）
温度范围：-30℃ ~ +80℃
尺寸和重量
| 订货代码 | 结构 单元数×每单元芯数× 截面积（mm2） |
标称绝缘厚度 mm |
标称护套厚度 mm |
标称外径 mm |
标称重量 kg/km |
|---|---|---|---|---|---|
| MRE-M2XH PiMF-1P0.75 | 1×2×0.75 | 0.5 | 1.0 | 7.9 | 80 |
| MRE-M2XH PiMF-2P0.75 | 2×2×0.75 | 0.5 | 1.2 | 12.4 | 170 |
| MRE-M2XH PiMF-3P0.75 | 3×2×0.75 | 0.5 | 1.2 | 13.2 | 210 |
| MRE-M2XH PiMF-4P0.75 | 4×2×0.75 | 0.5 | 1.3 | 14.3 | 260 |
| MRE-M2XH PiMF-5P0.75 | 5×2×0.75 | 0.5 | 1.3 | 16.0 | 320 |
| MRE-M2XH PiMF-6P0.75 | 6×2×0.75 | 0.5 | 1.4 | 17.4 | 380 |
| MRE-M2XH PiMF-7P0.75 | 7×2×0.75 | 0.5 | 1.4 | 17.4 | 410 |
| MRE-M2XH PiMF-8P0.75 | 8×2×0.75 | 0.5 | 1.4 | 18.5 | 460 |
| MRE-M2XH PiMF-10P0.75 | 10×2×0.75 | 0.5 | 1.5 | 21.0 | 570 |
| MRE-M2XH PiMF-12P0.75 | 12×2×0.75 | 0.5 | 1.5 | 21.8 | 650 |
| MRE-M2XH PiMF-14P0.75 | 14×2×0.75 | 0.5 | 1.6 | 22.9 | 740 |
| MRE-M2XH PiMF-16P0.75 | 16×2×0.75 | 0.5 | 1.6 | 24.6 | 840 |
| MRE-M2XH PiMF-19P0.75 | 19×2×0.75 | 0.5 | 1.7 | 26.5 | 980 |
| MRE-M2XH PiMF-20P0.75 | 20×2×0.75 | 0.5 | 1.7 | 26.5 | 1010 |
| MRE-M2XH PiMF-24P0.75 | 24×2×0.75 | 0.5 | 1.9 | 30.6 | 1260 |
| MRE-M2XH PiMF-30P0.75 | 30×2×0.75 | 0.5 | 2.0 | 33.4 | 1530 |
| MRE-M2XH PiMF-37P0.75 | 37×2×0.75 | 0.5 | 2.1 | 35.9 | 1830 |
| MRE-M2XH PiMF-1P1.0 | 1×2×1.0 | 0.5 | 1.0 | 8.3 | 90 |
| MRE-M2XH PiMF-2P1.0 | 2×2×1.0 | 0.5 | 1.2 | 13.1 | 200 |
| MRE-M2XH PiMF-3P1.0 | 3×2×1.0 | 0.5 | 1.3 | 14.2 | 250 |
| MRE-M2XH PiMF-4P1.0 | 4×2×1.0 | 0.5 | 1.3 | 15.1 | 310 |
| MRE-M2XH PiMF-5P1.0 | 5×2×1.0 | 0.5 | 1.4 | 17.1 | 380 |
| MRE-M2XH PiMF-6P1.0 | 6×2×1.0 | 0.5 | 1.4 | 18.4 | 440 |
| MRE-M2XH PiMF-7P1.0 | 7×2×1.0 | 0.5 | 1.4 | 18.4 | 480 |
| MRE-M2XH PiMF-8P1.0 | 8×2×1.0 | 0.5 | 1.5 | 19.8 | 550 |
| MRE-M2XH PiMF-10P1.0 | 10×2×1.0 | 0.5 | 1.6 | 22.4 | 690 |
| MRE-M2XH PiMF-12P1.0 | 12×2×1.0 | 0.5 | 1.6 | 23.3 | 780 |
| MRE-M2XH PiMF-14P1.0 | 14×2×1.0 | 0.5 | 1.6 | 24.2 | 880 |
| MRE-M2XH PiMF-16P1.0 | 16×2×1.0 | 0.5 | 1.7 | 26.3 | 1020 |
| MRE-M2XH PiMF-19P1.0 | 19×2×1.0 | 0.5 | 1.8 | 28.3 | 1190 |
| MRE-M2XH PiMF-20P1.0 | 20×2×1.0 | 0.5 | 1.8 | 28.3 | 1230 |
| MRE-M2XH PiMF-24P1.0 | 24×2×1.0 | 0.5 | 1.9 | 32.5 | 1510 |
| MRE-M2XH PiMF-30P1.0 | 30×2×1.0 | 0.5 | 2.0 | 35.4 | 1840 |
| MRE-M2XH PiMF-37P1.0 | 37×2×1.0 | 0.5 | 2.1 | 38.1 | 2210 |
| MRE-M2XH TiMF-1T0.75 | 1×3×0.75 | 0.5 | 1.0 | 8.3 | 100 |
| MRE-M2XH TiMF-2T0.75 | 2×3×0.75 | 0.5 | 1.2 | 13.5 | 210 |
| MRE-M2XH TiMF-3T0.75 | 3×3×0.75 | 0.5 | 1.3 | 14.5 | 270 |
| MRE-M2XH TiMF-4T0.75 | 4×3×0.75 | 0.5 | 1.3 | 16.0 | 330 |
| MRE-M2XH TiMF-5T0.75 | 5×3×0.75 | 0.5 | 1.4 | 17.9 | 410 |
| MRE-M2XH TiMF-6T0.75 | 6×3×0.75 | 0.5 | 1.5 | 20.3 | 500 |
| MRE-M2XH TiMF-7T0.75 | 7×3×0.75 | 0.5 | 1.5 | 20.3 | 540 |
| MRE-M2XH TiMF-8T0.75 | 8×3×0.75 | 0.5 | 1.5 | 21.8 | 620 |
| MRE-M2XH TiMF-10T0.75 | 10×3×0.75 | 0.5 | 1.7 | 25.0 | 780 |
| MRE-M2XH TiMF-12T0.75 | 12×3×0.75 | 0.5 | 1.7 | 26.4 | 900 |
| MRE-M2XH TiMF-14T0.75 | 14×3×0.75 | 0.5 | 1.8 | 27.7 | 1020 |
| MRE-M2XH TiMF-16T0.75 | 16×3×0.75 | 0.5 | 1.8 | 29.5 | 1160 |
| MRE-M2XH TiMF-19T0.75 | 19×3×0.75 | 0.5 | 1.9 | 32.0 | 1360 |
| MRE-M2XH TiMF-20T0.75 | 20×3×0.75 | 0.5 | 1.9 | 32.5 | 1420 |
| MRE-M2XH TiMF-24T0.75 | 24×3×0.75 | 0.5 | 2.1 | 35.7 | 1700 |
| MRE-M2XH TiMF-30T0.75 | 30×3×0.75 | 0.5 | 2.2 | 39.6 | 2100 |
| MRE-M2XH TiMF-32T0.75 | 32×3×0.75 | 0.5 | 2.3 | 41.2 | 2250 |
| MRE-M2XH TiMF-1T1.0 | 1×3×1.0 | 0.5 | 1.1 | 8.9 | 120 |
| MRE-M2XH TiMF-2T1.0 | 2×3×1.0 | 0.5 | 1.3 | 14.4 | 250 |
| MRE-M2XH TiMF-3T1.0 | 3×3×1.0 | 0.5 | 1.3 | 15.4 | 310 |
| MRE-M2XH TiMF-4T1.0 | 4×3×1.0 | 0.5 | 1.4 | 17.1 | 400 |
| MRE-M2XH TiMF-5T1.0 | 5×3×1.0 | 0.5 | 1.4 | 18.9 | 480 |
| MRE-M2XH TiMF-6T1.0 | 6×3×1.0 | 0.5 | 1.5 | 21.5 | 590 |
| MRE-M2XH TiMF-7T1.0 | 7×3×1.0 | 0.5 | 1.5 | 21.5 | 640 |
| MRE-M2XH TiMF-8T1.0 | 8×3×1.0 | 0.5 | 1.6 | 23.3 | 740 |
| MRE-M2XH TiMF-10T1.0 | 10×3×1.0 | 0.5 | 1.7 | 26.5 | 930 |
| MRE-M2XH TiMF-12T1.0 | 12×3×1.0 | 0.5 | 1.8 | 28.2 | 1090 |
| MRE-M2XH TiMF-14T1.0 | 14×3×1.0 | 0.5 | 1.8 | 29.4 | 1220 |
| MRE-M2XH TiMF-16T1.0 | 16×3×1.0 | 0.5 | 1.9 | 31.5 | 1400 |
| MRE-M2XH TiMF-19T1.0 | 19×3×1.0 | 0.5 | 2.0 | 34.1 | 1640 |
| MRE-M2XH TiMF-20T1.0 | 20×3×1.0 | 0.5 | 2.0 | 34.7 | 1710 |
| MRE-M2XH TiMF-24T1.0 | 24×3×1.0 | 0.5 | 2.1 | 37.9 | 2040 |
| MRE-M2XH TiMF-30T1.0 | 30×3×1.0 | 0.5 | 2.3 | 42.3 | 2540 |
| MRE-M2XH TiMF-32T1.0 | 32×3×1.0 | 0.5 | 2.4 | 44.0 | 2720 |
