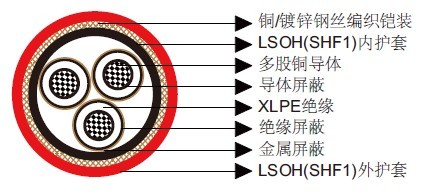

MTX 3.6/6kV、6/10kV、8.7/15kV XLPE绝缘，LSOH (SHF1) 护套，铠装阻燃中压电力电缆（SHF1内护套）
应用
该铠装中压电缆适用于船体上任何位置的固定安装，符合IEC 60092-352标准。该电缆阻燃、低烟、无卤。
标准
IEC 60092-350/351/354/359
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034
结构
导体：Class 2多股铜导体。
导体屏蔽：半导电层（带/复合物）。
绝缘：XLPE。
绝缘屏蔽：半导电层（带/复合物）。
金属屏蔽：铜带。
内护套：LSOH（SHF1）。
铠装：铜丝编织或镀锌钢丝编织
外护套：LSOH（SHF1）。SHF2可选。
线芯识别
彩色标识带应插入金属屏蔽层下。
3芯：红、黄、蓝。
机械和热性能
固定安装弯曲半径：12×OD（单芯）；9×OD（三芯）
温度范围：-30℃ ~ +80℃
尺寸和重量
3.6/6kV
| 订货代码 | 结构 芯数×截面积 （mm2） |
标称绝缘厚度 mm |
标称护套厚度 mm |
标称外径 mm |
标称重量 kg/km |
|
|---|---|---|---|---|---|---|
| 内 | 外 | |||||
| MTX-3.6/6KV-RZ1MZ1-1C10 | 1×10 | 2.5 | 1.3 | 1.0 | 19.2 | 560 |
| MTX-3.6/6KV-RZ1MZ1-1C16 | 1×16 | 2.5 | 1.3 | 1.0 | 20.1 | 650 |
| MTX-3.6/6KV-RZ1MZ1-1C25 | 1×25 | 2.5 | 1.4 | 1.1 | 21.8 | 800 |
| MTX-3.6/6KV-RZ1MZ1-1C35 | 1×35 | 2.5 | 1.4 | 1.1 | 23.0 | 940 |
| MTX-3.6/6KV-RZ1MZ1-1C50 | 1×50 | 2.5 | 1.5 | 1.2 | 24.7 | 1120 |
| MTX-3.6/6KV-RZ1MZ1-1C70 | 1×70 | 2.5 | 1.6 | 1.2 | 26.7 | 1390 |
| MTX-3.6/6KV-RZ1MZ1-1C95 | 1×95 | 2.5 | 1.6 | 1.3 | 28.8 | 1720 |
| MTX-3.6/6KV-RZ1MZ1-1C120 | 1×120 | 2.5 | 1.7 | 1.3 | 30.6 | 2020 |
| MTX-3.6/6KV-RZ1MZ1-1C150 | 1×150 | 2.5 | 1.8 | 1.3 | 32.4 | 2350 |
| MTX-3.6/6KV-RZ1MZ1-1C185 | 1×185 | 2.5 | 1.8 | 1.4 | 34.4 | 2780 |
| MTX-3.6/6KV-RZ1MZ1-1C240 | 1×240 | 2.6 | 2.0 | 1.5 | 38.4 | 3580 |
| MTX-3.6/6KV-RZ1MZ1-1C300 | 1×300 | 2.8 | 2.1 | 1.6 | 41.6 | 4310 |
| MTX-3.6/6KV-RZ1MZ1-1C400 | 1×400 | 3.0 | 2.2 | 1.7 | 45.8 | 5440 |
| MTX-3.6/6KV-RZ1MZ1-1C500 | 1×500 | 3.2 | 2.4 | 1.7 | 49.3 | 6450 |
| MTX-3.6/6KV-RZ1MZ1-1C630 | 1×630 | 3.2 | 2.5 | 1.9 | 54.1 | 8110 |
| MTX-3.6/6KV-RZ1MZ1-3C10 | 3×10 | 2.5 | 1.9 | 1.4 | 36.3 | 1710 |
| MTX-3.6/6KV-RZ1MZ1-3C16 | 3×16 | 2.5 | 2.0 | 1.5 | 38.8 | 2030 |
| MTX-3.6/6KV-RZ1MZ1-3C25 | 3×25 | 2.5 | 2.1 | 1.6 | 42.0 | 2500 |
| MTX-3.6/6KV-RZ1MZ1-3C35 | 3×35 | 2.5 | 2.2 | 1.6 | 44.8 | 2950 |
| MTX-3.6/6KV-RZ1MZ1-3C50 | 3×50 | 2.5 | 2.3 | 1.7 | 48.0 | 3510 |
| MTX-3.6/6KV-RZ1MZ1-3C70 | 3×70 | 2.5 | 2.5 | 1.8 | 52.5 | 4420 |
| MTX-3.6/6KV-RZ1MZ1-3C95 | 3×95 | 2.5 | 2.6 | 1.9 | 57.0 | 5470 |
| MTX-3.6/6KV-RZ1MZ1-3C120 | 3×120 | 2.5 | 2.8 | 2.0 | 61.0 | 6480 |
| MTX-3.6/6KV-RZ1MZ1-3C150 | 3×150 | 2.5 | 2.9 | 2.1 | 64.9 | 7540 |
| MTX-3.6/6KV-RZ1MZ1-3C185 | 3×185 | 2.5 | 3.1 | 2.2 | 69.3 | 8940 |
| MTX-3.6/6KV-RZ1MZ1-3C240 | 3×240 | 2.6 | 3.3 | 2.4 | 76.4 | 11180 |
6/10kV
| 订货代码 | 结构 芯数×截面积 （mm2） |
标称绝缘厚度 mm |
标称护套厚度 mm |
标称外径 mm |
标称重量 kg/km |
|
|---|---|---|---|---|---|---|
| 内 | 外 | |||||
| MTX-6/10KV-RZ1MZ1-1C16 | 1×16 | 3.4 | 1.4 | 1.1 | 22.3 | 750 |
| MTX-6/10KV-RZ1MZ1-1C25 | 1×25 | 3.4 | 1.5 | 1.1 | 23.8 | 890 |
| MTX-6/10KV-RZ1MZ1-1C35 | 1×35 | 3.4 | 1.5 | 1.2 | 25.2 | 1040 |
| MTX-6/10KV-RZ1MZ1-1C50 | 1×50 | 3.4 | 1.6 | 1.2 | 26.7 | 1220 |
| MTX-6/10KV-RZ1MZ1-1C70 | 1×70 | 3.4 | 1.6 | 1.2 | 28.5 | 1480 |
| MTX-6/10KV-RZ1MZ1-1C95 | 1×95 | 3.4 | 1.7 | 1.3 | 30.8 | 1830 |
| MTX-6/10KV-RZ1MZ1-1C120 | 1×120 | 3.4 | 1.8 | 1.3 | 32.6 | 2140 |
| MTX-6/10KV-RZ1MZ1-1C150 | 1×150 | 3.4 | 1.8 | 1.4 | 34.4 | 2470 |
| MTX-6/10KV-RZ1MZ1-1C185 | 1×185 | 3.4 | 1.9 | 1.4 | 36.9 | 2990 |
| MTX-6/10KV-RZ1MZ1-1C240 | 1×240 | 3.4 | 2.0 | 1.5 | 40.0 | 3680 |
| MTX-6/10KV-RZ1MZ1-1C300 | 1×300 | 3.4 | 2.1 | 1.6 | 42.8 | 4390 |
| MTX-6/10KV-RZ1MZ1-1C400 | 1×400 | 3.4 | 2.3 | 1.7 | 46.8 | 5510 |
| MTX-6/10KV-RZ1MZ1-1C500 | 1×500 | 3.4 | 2.4 | 1.8 | 49.9 | 6480 |
| MTX-6/10KV-RZ1MZ1-1C630 | 1×630 | 3.4 | 2.5 | 1.9 | 54.5 | 8130 |
| MTX-6/10KV-RZ1MZ1-3C16 | 3×16 | 3.4 | 2.1 | 1.6 | 43.1 | 2350 |
| MTX-6/10KV-RZ1MZ1-3C25 | 3×25 | 3.4 | 2.2 | 1.7 | 46.3 | 2840 |
| MTX-6/10KV-RZ1MZ1-3C35 | 3×35 | 3.4 | 2.3 | 1.7 | 49.1 | 3310 |
| MTX-6/10KV-RZ1MZ1-3C50 | 3×50 | 3.4 | 2.5 | 1.8 | 52.5 | 3910 |
| MTX-6/10KV-RZ1MZ1-3C70 | 3×70 | 3.4 | 2.6 | 1.9 | 56.8 | 4820 |
| MTX-6/10KV-RZ1MZ1-3C95 | 3×95 | 3.4 | 2.8 | 2.0 | 61.4 | 5930 |
| MTX-6/10KV-RZ1MZ1-3C120 | 3×120 | 3.4 | 2.9 | 2.1 | 65.3 | 6940 |
| MTX-6/10KV-RZ1MZ1-3C150 | 3×150 | 3.4 | 3.1 | 2.2 | 69.3 | 8050 |
| MTX-6/10KV-RZ1MZ1-3C185 | 3×185 | 3.4 | 3.2 | 2.3 | 73.6 | 9460 |
| MTX-6/10KV-RZ1MZ1-3C240 | 3×240 | 3.4 | 3.4 | 2.5 | 80.2 | 11680 |
8.7/15kV
| 订货代码 | 结构 芯数×截面积 （mm2） |
标称绝缘厚度 mm |
标称护套厚度 mm |
标称外径 mm |
标称重量 kg/km |
|
|---|---|---|---|---|---|---|
| 内 | 外 | |||||
| MTX-8.7/15KV-RZ1MZ1-1C25 | 1×25 | 4.5 | 1.6 | 1.2 | 26.4 | 1030 |
| MTX-8.7/15KV-RZ1MZ1-1C35 | 1×35 | 4.5 | 1.6 | 1.2 | 27.6 | 1180 |
| MTX-8.7/15KV-RZ1MZ1-1C50 | 1×50 | 4.5 | 1.7 | 1.3 | 29.3 | 1370 |
| MTX-8.7/15KV-RZ1MZ1-1C70 | 1×70 | 4.5 | 1.7 | 1.3 | 31.1 | 1650 |
| MTX-8.7/15KV-RZ1MZ1-1C95 | 1×95 | 4.5 | 1.8 | 1.4 | 33.4 | 2010 |
| MTX-8.7/15KV-RZ1MZ1-1C120 | 1×120 | 4.5 | 1.9 | 1.4 | 35.7 | 2410 |
| MTX-8.7/15KV-RZ1MZ1-1C150 | 1×150 | 4.5 | 1.9 | 1.5 | 37.5 | 2760 |
| MTX-8.7/15KV-RZ1MZ1-1C185 | 1×185 | 4.5 | 2.0 | 1.5 | 39.5 | 3200 |
| MTX-8.7/15KV-RZ1MZ1-1C240 | 1×240 | 4.5 | 2.1 | 1.6 | 42.6 | 3910 |
| MTX-8.7/15KV-RZ1MZ1-1C300 | 1×300 | 4.5 | 2.2 | 1.6 | 45.2 | 4610 |
| MTX-8.7/15KV-RZ1MZ1-1C400 | 1×400 | 4.5 | 2.3 | 1.7 | 49.0 | 5730 |
| MTX-8.7/15KV-RZ1MZ1-1C500 | 1×500 | 4.5 | 2.5 | 1.8 | 52.3 | 6740 |
| MTX-8.7/15KV-RZ1MZ1-1C630 | 1×630 | 4.5 | 2.6 | 1.9 | 56.9 | 8400 |
| MTX-8.7/15KV-RZ1MZ1-3C25 | 3×25 | 4.5 | 2.4 | 1.8 | 51.6 | 3300 |
| MTX-8.7/15KV-RZ1MZ1-3C35 | 3×35 | 4.5 | 2.5 | 1.9 | 54.6 | 3820 |
| MTX-8.7/15KV-RZ1MZ1-3C50 | 3×50 | 4.5 | 2.6 | 1.9 | 57.6 | 4400 |
| MTX-8.7/15KV-RZ1MZ1-3C70 | 3×70 | 4.5 | 2.8 | 2.0 | 62.1 | 5370 |
| MTX-8.7/15KV-RZ1MZ1-3C95 | 3×95 | 4.5 | 3.0 | 2.2 | 67.0 | 6550 |
| MTX-8.7/15KV-RZ1MZ1-3C120 | 3×120 | 4.5 | 3.1 | 2.3 | 70.8 | 7580 |
| MTX-8.7/15KV-RZ1MZ1-3C150 | 3×150 | 4.5 | 3.2 | 2.3 | 74.5 | 8680 |
| MTX-8.7/15KV-RZ1MZ1-3C185 | 3×185 | 4.5 | 3.4 | 2.5 | 79.2 | 10180 |
| MTX-8.7/15KV-RZ1MZ1-3C240 | 3×240 | 4.5 | 3.6 | 2.6 | 85.6 | 12420 |
