JIS C 3410 船用电缆
[FA-] DPY, TPY, FPY, 5PY, 6PY
[FA-] DPYC, TPYC, FPYC, 5PYC, 6PYC
[FA-] DPYCY, TPYCY, FPYCY, 5PYCY, 6PYCY
标准
JISC 3410-1999
IEC 60332-1
IEC 60332-3 Cat.A(FA类)

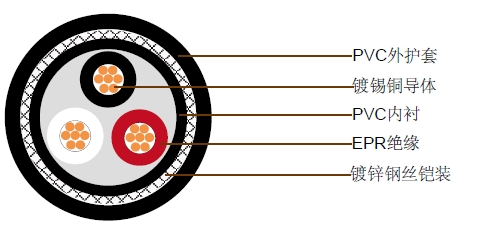

电缆结构
导体 |
D(T,F,5,6,10) |
多股镀锡铜, IEC 60228,2类 |
绝缘 |
P |
85°C EPR,遵循JIS C 3410 |
成缆 |
|
绝缘线芯总绞.
可能添加阻燃非吸湿性材料填充 |
内衬 |
Y |
PVC,遵循JIS C 3410 |
铠装 |
C |
镀锌钢丝编织 |
护套 |
Y |
PVC,遵循JIS C 3410 |
线芯颜色 |
|
2芯黑色, 白色
3芯/2芯+E 黑色, 白色, 红色/黑色, 白色, 黄绿色
4芯/3芯+E 黑色, 白色, 红色, 绿色/黑色, 白色, 红色, 黄绿色
5芯及以上白色绝缘加黑色数字标注 /白色绝缘加黑色数字标注, 黄绿色 |
外护套颜色 |
|
黑色 |
电缆参数
0.6/1KV (FA-) DPY
导体 |
绝缘厚度 |
内衬厚度 |
(FA-) DPY |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1 |
1.1 |
10.4 |
0.5 |
120 |
2.5 |
7/0.67 |
2.01 |
1 |
1.2 |
11.5 |
0.5 |
155 |
4 |
7/0.85 |
2.55 |
1 |
1.2 |
12.6 |
0.6 |
200 |
6 |
7/1.04 |
3.12 |
1 |
1.3 |
13.9 |
0.6 |
255 |
10 |
7/1.35 |
4.05 |
1 |
1.3 |
15.8 |
0.7 |
360 |
16 |
7/1.70 |
5.1 |
1 |
1.4 |
18.1 |
0.8 |
515 |
25 |
7/2.14 |
6.42 |
1.2 |
1.5 |
21.7 |
0.9 |
770 |
35 |
7/2.52 |
7.56 |
1.2 |
1.6 |
24.2 |
1 |
1010 |
50 |
19/1.78 |
8.9 |
1.4 |
1.8 |
28.1 |
1.2 |
1360 |
70 |
19/2.14 |
10.7 |
1.6 |
2 |
33.3 |
1.4 |
1930 |
95 |
19/2.52 |
12.6 |
1.6 |
2.1 |
37.3 |
1.6 |
2550 |
120 |
37/2.03 |
14.2 |
1.6 |
2.3 |
40.9 |
1.6 |
3150 |
150 |
37/2.25 |
15.8 |
1.8 |
2.4 |
45 |
1.7 |
3840 |
185 |
37/2.52 |
17.6 |
2 |
2.6 |
50 |
1.9 |
4780 |
0.6/1KV (FA-) DPYC
导体 |
绝缘厚度 |
内衬厚度 |
钢丝直径 |
(FA-) DPYC |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1 |
1.1 |
0.3 |
11.7 |
0.5 |
205 |
2.5 |
7/0.67 |
2.01 |
1 |
1.2 |
0.3 |
12.8 |
0.5 |
250 |
4 |
7/0.85 |
2.55 |
1 |
1.2 |
0.3 |
13.9 |
0.6 |
300 |
6 |
7/1.04 |
3.12 |
1 |
1.3 |
0.3 |
15.2 |
0.6 |
370 |
10 |
7/1.35 |
4.05 |
1 |
1.3 |
0.3 |
17.1 |
0.7 |
490 |
16 |
7/1.70 |
5.1 |
1 |
1.4 |
0.3 |
19.4 |
0.8 |
660 |
25 |
7/2.14 |
6.42 |
1.2 |
1.5 |
0.3 |
23 |
0.9 |
945 |
35 |
7/2.52 |
7.56 |
1.2 |
1.6 |
0.3 |
25.5 |
1 |
1200 |
50 |
19/1.78 |
8.9 |
1.4 |
1.8 |
0.3 |
29.4 |
1.2 |
1580 |
70 |
19/2.14 |
10.7 |
1.6 |
2 |
0.4 |
35.1 |
1.4 |
2300 |
95 |
19/2.52 |
12.6 |
1.6 |
2.1 |
0.4 |
39.1 |
1.6 |
2960 |
120 |
37/2.03 |
14.2 |
1.6 |
2.3 |
0.4 |
42.7 |
1.6 |
3600 |
150 |
37/2.25 |
15.8 |
1.8 |
2.4 |
0.4 |
46.8 |
1.7 |
4330 |
185 |
37/2.52 |
17.6 |
2 |
2.6 |
0.4 |
51.8 |
1.9 |
5330 |
0.6/1KV (FA-) DPYCY
导体 |
绝缘厚度 |
内衬厚度 |
钢丝直径 |
|
(FA-) DPYCY |
截面积 |
股数/直径 |
直径 |
护套厚度 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1 |
1.1 |
0.3 |
0.9 |
13.7 |
0.5 |
260 |
2.5 |
7/0.67 |
2.01 |
1 |
1.2 |
0.3 |
0.9 |
14.8 |
0.6 |
310 |
4 |
7/0.85 |
2.55 |
1 |
1.2 |
0.3 |
0.9 |
15.9 |
0.6 |
365 |
6 |
7/1.04 |
3.12 |
1 |
1.3 |
0.3 |
1 |
17.4 |
0.7 |
445 |
10 |
7/1.35 |
4.05 |
1 |
1.3 |
0.3 |
1 |
19.3 |
0.8 |
575 |
16 |
7/1.70 |
5.1 |
1 |
1.4 |
0.3 |
1.1 |
21.8 |
0.9 |
765 |
25 |
7/2.14 |
6.42 |
1.2 |
1.5 |
0.3 |
1.2 |
25.6 |
1 |
1080 |
35 |
7/2.52 |
7.56 |
1.2 |
1.6 |
0.3 |
1.2 |
28.1 |
1.1 |
1350 |
50 |
19/1.78 |
8.9 |
1.4 |
1.8 |
0.3 |
1.3 |
32.2 |
1.3 |
1770 |
70 |
19/2.14 |
10.7 |
1.6 |
2 |
0.4 |
1.5 |
38.5 |
1.5 |
2570 |
95 |
19/2.52 |
12.6 |
1.6 |
2.1 |
0.4 |
1.6 |
42.7 |
1.6 |
3280 |
120 |
37/2.03 |
14.2 |
1.6 |
2.3 |
0.4 |
1.7 |
46.5 |
1.7 |
3970 |
150 |
37/2.25 |
15.8 |
1.8 |
2.4 |
0.4 |
1.8 |
50.8 |
1.8 |
4750 |
185 |
37/2.52 |
17.6 |
2 |
2.6 |
0.4 |
1.9 |
56 |
1.9 |
5810 |
0.6/1KV (FA-) TPY
导体 |
绝缘厚度 |
内衬厚度 |
(FA-) TPY |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.2 |
11.2 |
0.5 |
150 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.2 |
12.2 |
0.5 |
195 |
4 |
7/0.85 |
2.55 |
1.0 |
1.2 |
13.4 |
0.6 |
255 |
6 |
7/1.04 |
3.12 |
1.0 |
1.3 |
14.8 |
0.6 |
335 |
10 |
7/1.35 |
4.05 |
1.0 |
1.4 |
17.0 |
0.7 |
485 |
16 |
7/1.70 |
5.1 |
1.0 |
1.5 |
19.5 |
0.8 |
700 |
25 |
7/2.14 |
6.42 |
1.2 |
1.6 |
23.4 |
1.0 |
1060 |
35 |
7/2.52 |
7.56 |
1.2 |
1.7 |
26.1 |
1.1 |
1390 |
50 |
19/1.78 |
8.9 |
1.4 |
1.9 |
30.2 |
1.3 |
1870 |
70 |
19/2.14 |
10.7 |
1.6 |
2.1 |
35.8 |
1.5 |
2660 |
95 |
19/2.52 |
12.6 |
1.6 |
2.2 |
40.1 |
1.6 |
3530 |
120 |
37/2.03 |
14.2 |
1.6 |
2.4 |
44.0 |
1.7 |
4370 |
150 |
37/2.25 |
15.8 |
1.8 |
2.5 |
48.4 |
1.8 |
5340 |
185 |
37/2.52 |
17.6 |
2.0 |
2.7 |
53.7 |
1.9 |
6640 |
240 |
61/2.25 |
20.25 |
2.2 |
3.0 |
60.4 |
2.3 |
8880 |
0.6/1KV (FA-) TPYC
导体 |
绝缘厚度 |
内衬厚度 |
钢丝直径 |
(FA-) TPYC |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.2 |
0.3 |
12.5 |
0.5 |
245 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.2 |
0.3 |
13.5 |
0.5 |
295 |
4 |
7/0.85 |
2.55 |
1.0 |
1.2 |
0.3 |
14.7 |
0.6 |
365 |
6 |
7/1.04 |
3.12 |
1.0 |
1.3 |
0.3 |
16.1 |
0.6 |
455 |
10 |
7/1.35 |
4.05 |
1.0 |
1.4 |
0.3 |
18.3 |
0.7 |
625 |
16 |
7/1.70 |
5.1 |
1.0 |
1.5 |
0.3 |
20.8 |
0.8 |
855 |
25 |
7/2.14 |
6.42 |
1.2 |
1.6 |
0.3 |
24.7 |
1.0 |
1240 |
35 |
7/2.52 |
7.56 |
1.2 |
1.7 |
0.3 |
27.4 |
1.1 |
1600 |
50 |
19/1.78 |
8.9 |
1.4 |
1.9 |
0.4 |
32.0 |
1.3 |
2200 |
70 |
19/2.14 |
10.7 |
1.6 |
2.1 |
0.4 |
37.6 |
1.5 |
3050 |
95 |
19/2.52 |
12.6 |
1.6 |
2.2 |
0.4 |
41.9 |
1.6 |
3980 |
120 |
37/2.03 |
14.2 |
1.6 |
2.4 |
0.4 |
45.8 |
1.7 |
4860 |
150 |
37/2.25 |
15.8 |
1.8 |
2.5 |
0.4 |
50.2 |
1.8 |
5870 |
185 |
37/2.52 |
17.6 |
2.0 |
2.7 |
0.4 |
55.5 |
1.9 |
7230 |
240 |
61/2.25 |
20.25 |
2.2 |
3.0 |
0.4 |
62.7 |
2.3 |
10100 |
0.6/1KV (FA-) TPYCY
导体 |
绝缘厚度 |
内衬厚度 |
钢丝直径 |
护套厚度 |
(FA-) TPYCY |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.2 |
0.3 |
0.9 |
14.5 |
0.6 |
300 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.2 |
0.3 |
0.9 |
15.5 |
0.6 |
355 |
4 |
7/0.85 |
2.55 |
1.0 |
1.2 |
0.3 |
1.0 |
16.9 |
0.7 |
440 |
6 |
7/1.04 |
3.12 |
1.0 |
1.3 |
0.3 |
1.0 |
18.3 |
0.7 |
535 |
10 |
7/1.35 |
4.05 |
1.0 |
1.4 |
0.3 |
1.1 |
20.7 |
0.8 |
725 |
16 |
7/1.70 |
5.1 |
1.0 |
1.5 |
0.3 |
1.1 |
23.2 |
0.9 |
970 |
25 |
7/2.14 |
6.42 |
1.2 |
1.6 |
0.3 |
1.2 |
27.3 |
1.1 |
1390 |
35 |
7/2.52 |
7.56 |
1.2 |
1.7 |
0.3 |
1.3 |
30.2 |
1.2 |
1770 |
50 |
19/1.78 |
8.9 |
1.4 |
1.9 |
0.4 |
1.4 |
35.0 |
1.4 |
2420 |
70 |
19/2.14 |
10.7 |
1.6 |
2.1 |
0.4 |
1.5 |
41.0 |
1.6 |
3350 |
95 |
19/2.52 |
12.6 |
1.6 |
2.2 |
0.4 |
1.6 |
45.5 |
1.7 |
4320 |
120 |
37/2.03 |
14.2 |
1.6 |
2.4 |
0.4 |
1.7 |
49.6 |
1.8 |
5250 |
150 |
37/2.25 |
15.8 |
1.8 |
2.5 |
0.4 |
1.9 |
54.2 |
1.9 |
6340 |
185 |
37/2.52 |
17.6 |
2.0 |
2.7 |
0.4 |
2.0 |
59.7 |
2.0 |
7780 |
240 |
61/2.25 |
20.25 |
2.2 |
3.0 |
0.4 |
2.2 |
67.2 |
3.4 |
10376 |
0.6/1KV (FA-) FPY
导体 |
绝缘厚度 |
内衬厚度 |
(FA-) FPY |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.2 |
11.8 |
0.6 |
230 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.2 |
12.8 |
0.6 |
290 |
4 |
7/0.85 |
2.55 |
1.0 |
1.3 |
14.4 |
0.7 |
380 |
6 |
7/1.04 |
3.12 |
1.0 |
1.3 |
15.8 |
0.8 |
500 |
10 |
7/1.35 |
4.05 |
1.0 |
1.4 |
18.3 |
0.9 |
730 |
16 |
7/1.70 |
5.1 |
1.0 |
1.5 |
21.0 |
1.1 |
1050 |
25 |
7/2.14 |
6.42 |
1.2 |
1.7 |
25.7 |
1.3 |
1590 |
35 |
7/2.52 |
7.56 |
1.2 |
1.8 |
28.6 |
1.4 |
2090 |
50 |
19/1.78 |
8.9 |
1.4 |
2.0 |
33.5 |
1.7 |
2810 |
70 |
19/2.14 |
10.7 |
1.4 |
2.1 |
38.1 |
1.9 |
3990 |
95 |
19/2.52 |
12.6 |
1.6 |
2.4 |
44.4 |
2.2 |
5300 |
120 |
37/2.03 |
14.2 |
1.6 |
2.5 |
48.7 |
2.4 |
6560 |
150 |
37/2.25 |
15.8 |
1.8 |
2.7 |
54.0 |
2.7 |
8010 |
185 |
37/2.52 |
17.6 |
2.0 |
2.9 |
59.8 |
3.0 |
9960 |
0.6/1KV (FA-) FPYC
导体 |
绝缘厚度 |
内衬厚度 |
钢丝直径 |
(FA-) FPYC |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.2 |
0.3 |
13.4 |
0.7 |
370 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.2 |
0.3 |
14.4 |
0.7 |
440 |
4 |
7/0.85 |
2.55 |
1.0 |
1.3 |
0.3 |
16.0 |
0.8 |
550 |
6 |
7/1.04 |
3.12 |
1.0 |
1.3 |
0.3 |
17.4 |
0.9 |
680 |
10 |
7/1.35 |
4.05 |
1.0 |
1.4 |
0.3 |
19.9 |
1.0 |
940 |
16 |
7/1.70 |
5.1 |
1.0 |
1.5 |
0.3 |
22.6 |
1.1 |
1280 |
25 |
7/2.14 |
6.42 |
1.2 |
1.7 |
0.3 |
27.3 |
1.4 |
1860 |
35 |
7/2.52 |
7.56 |
1.2 |
1.8 |
0.3 |
30.2 |
1.5 |
2400 |
50 |
19/1.78 |
8.9 |
1.4 |
2.0 |
0.4 |
35.6 |
1.8 |
3300 |
70 |
19/2.14 |
10.7 |
1.4 |
2.1 |
0.4 |
40.2 |
2.0 |
4580 |
95 |
19/2.52 |
12.6 |
1.6 |
2.4 |
0.4 |
46.5 |
2.3 |
5970 |
120 |
37/2.03 |
14.2 |
1.6 |
2.5 |
0.4 |
50.8 |
2.5 |
7290 |
150 |
37/2.25 |
15.8 |
1.8 |
2.7 |
0.4 |
56.1 |
2.8 |
8810 |
185 |
37/2.52 |
17.6 |
2.0 |
2.9 |
0.4 |
61.9 |
3.1 |
10850 |
0.6/1KV (FA-) FPYCY
导体 |
绝缘厚度 |
内衬厚度 |
钢丝直径 |
护套厚度 |
(FA-) FPYCY |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.2 |
0.3 |
0.9 |
15.4 |
0.8 |
450 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.2 |
0.3 |
1.0 |
16.4 |
0.8 |
530 |
4 |
7/0.85 |
2.55 |
1.0 |
1.3 |
0.3 |
1.0 |
18.1 |
0.9 |
660 |
6 |
7/1.04 |
3.12 |
1.0 |
1.3 |
0.3 |
1.0 |
19.6 |
1.0 |
800 |
10 |
7/1.35 |
4.05 |
1.0 |
1.4 |
0.3 |
1.1 |
22.2 |
1.1 |
1090 |
16 |
7/1.70 |
5.1 |
1.0 |
1.5 |
0.3 |
1.2 |
25.1 |
1.3 |
1460 |
25 |
7/2.14 |
6.42 |
1.2 |
1.7 |
0.3 |
1.3 |
30.0 |
1.5 |
2090 |
35 |
7/2.52 |
7.56 |
1.2 |
1.8 |
0.3 |
1.4 |
33.1 |
1.7 |
2660 |
50 |
19/1.78 |
8.9 |
1.4 |
2.0 |
0.4 |
1.5 |
38.8 |
1.9 |
3630 |
70 |
19/2.14 |
10.7 |
1.4 |
2.1 |
0.4 |
1.6 |
43.6 |
2.2 |
5030 |
95 |
19/2.52 |
12.6 |
1.6 |
2.4 |
0.4 |
1.8 |
50.2 |
2.5 |
6480 |
120 |
37/2.03 |
14.2 |
1.6 |
2.5 |
0.4 |
1.9 |
54.8 |
2.7 |
7880 |
150 |
37/2.25 |
15.8 |
1.8 |
2.7 |
0.4 |
2.0 |
60.4 |
3.0 |
9510 |
185 |
37/2.52 |
17.6 |
2.0 |
2.9 |
0.4 |
2.1 |
66.5 |
3.3 |
11670 |
0.6/1KV (FA-) 5PY
导体 |
绝缘厚度 |
内衬厚度 |
(FA-) 5PY |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.2 |
12 8 |
0.6 |
270 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.3 |
14.2 |
0.7 |
340 |
4 |
7/0.85 |
2.55 |
1.0 |
1.3 |
15.7 |
0.8 |
440 |
6 |
7/1.04 |
3.12 |
1.0 |
1.4 |
17.5 |
0.9 |
570 |
10 |
7/1.35 |
4.05 |
1.0 |
1.5 |
20.2 |
1.0 |
840 |
16 |
7/1.70 |
5.1 |
1.0 |
1.6 |
23.2 |
1.2 |
1200 |
25 |
7/2.14 |
6.42 |
1.2 |
1.8 |
28.4 |
1.4 |
1820 |
35 |
7/2.52 |
7.56 |
1.2 |
1.9 |
31.7 |
1.6 |
2390 |
50 |
19/1.78 |
8.9 |
1.4 |
2.1 |
37.1 |
1.9 |
3210 |
70 |
19/2.14 |
10.7 |
1.4 |
2.3 |
42.4 |
2.1 |
4550 |
95 |
19/2.52 |
12.6 |
1.6 |
2.6 |
49.6 |
2.5 |
6050 |
120 |
37/2.03 |
14.2 |
1.6 |
2.7 |
54.1 |
2.7 |
7480 |
150 |
37/2.25 |
15.8 |
1.8 |
3.0 |
60.2 |
3.0 |
9140 |
185 |
37/2.52 |
17.6 |
2.0 |
3.2 |
66.6 |
3.3 |
11360 |
0.6/1KV (FA-) 5PYC
导体 |
绝缘厚度 |
内衬厚度 |
钢丝直径 |
(FA-) 5PYC |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.2 |
0.3 |
14.4 |
0.7 |
430 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.3 |
0.3 |
15.8 |
0.8 |
510 |
4 |
7/0.85 |
2.55 |
1.0 |
1.3 |
0.3 |
17.3 |
0.9 |
630 |
6 |
7/1.04 |
3.12 |
1.0 |
1.4 |
0.3 |
19.1 |
1.0 |
780 |
10 |
7/1.35 |
4.05 |
1.0 |
1.5 |
0.3 |
21.8 |
1.1 |
1080 |
16 |
7/1.70 |
5.1 |
1.0 |
1.6 |
0.3 |
24.8 |
1.2 |
1460 |
25 |
7/2.14 |
6.42 |
1.2 |
1.8 |
0.3 |
30.0 |
1.5 |
2130 |
35 |
7/2.52 |
7.56 |
1.2 |
1.9 |
0.4 |
33.8 |
1.7 |
2740 |
50 |
19/1.78 |
8.9 |
1.4 |
2.1 |
0.4 |
39.2 |
2.0 |
3770 |
70 |
19/2.14 |
10.7 |
1.4 |
2.3 |
0.4 |
44.5 |
2.2 |
5230 |
95 |
19/2.52 |
12.6 |
1.6 |
2.6 |
0.4 |
51.7 |
2.6 |
6810 |
120 |
37/2.03 |
14.2 |
1.6 |
2.7 |
0.4 |
56.2 |
2.8 |
8320 |
150 |
37/2.25 |
15.8 |
1.8 |
3.0 |
0.4 |
62.3 |
3.1 |
10050 |
185 |
37/2.52 |
17.6 |
2.0 |
3.2 |
0.4 |
68.7 |
3.4 |
12370 |
0.6/1KV (FA-) 5PYCY
导体 |
绝缘厚度 |
内衬厚度 |
钢丝直径 |
护套厚度 |
(FA-) 5PYCY |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.2 |
0.3 |
1.0 |
16.5 |
0.8 |
520 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.3 |
0.3 |
1.0 |
17.9 |
0.9 |
610 |
4 |
7/0.85 |
2.55 |
1.0 |
1.3 |
0.3 |
1.0 |
19.4 |
1.0 |
760 |
6 |
7/1.04 |
3.12 |
1.0 |
1.4 |
0.3 |
1.1 |
21.5 |
1.1 |
920 |
10 |
7/1.35 |
4.05 |
1.0 |
1.5 |
0.3 |
1.1 |
24.2 |
1.2 |
1250 |
16 |
7/1.70 |
5.1 |
1.0 |
1.6 |
0.3 |
1.2 |
27.4 |
1.4 |
1670 |
25 |
7/2.14 |
6.42 |
1.2 |
1.8 |
0.3 |
1.4 |
33.0 |
1.7 |
2390 |
35 |
7/2.52 |
7.56 |
1.2 |
1.9 |
0.4 |
1.4 |
36.8 |
1.8 |
3040 |
50 |
19/1.78 |
8.9 |
1.4 |
2.1 |
0.4 |
1.6 |
42.6 |
2.1 |
4140 |
70 |
19/2.14 |
10.7 |
1.4 |
2.3 |
0.4 |
1.7 |
48.1 |
2.4 |
5740 |
95 |
19/2.52 |
12.6 |
1.6 |
2.6 |
0.4 |
1.9 |
55.8 |
2.8 |
7390 |
120 |
37/2.03 |
14.2 |
1.6 |
2.7 |
0.4 |
2.0 |
60.5 |
3.0 |
8990 |
150 |
37/2.25 |
15.8 |
1.8 |
3.0 |
0.4 |
2.2 |
67.0 |
3.4 |
10850 |
185 |
37/2.52 |
17.6 |
2.0 |
3.2 |
0.4 |
2.3 |
73.6 |
3.7 |
13310 |
0.6/1KV (FA-) 6PY
导体 |
绝缘厚度 |
内衬厚度 |
(FA-) 6PY |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.3 |
14.1 |
0.7 |
310 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.3 |
15.4 |
0.8 |
390 |
4 |
7/0.85 |
2.55 |
1.0 |
1.4 |
17.3 |
0.9 |
510 |
6 |
7/1.04 |
3.12 |
1.0 |
1.4 |
19.0 |
1.0 |
650 |
10 |
7/1.35 |
4.05 |
1.0 |
1.6 |
22.2 |
1.1 |
960 |
16 |
7/1.70 |
5.1 |
1.0 |
1.7 |
25.6 |
1.3 |
1370 |
25 |
7/2.14 |
6.42 |
1.2 |
1.9 |
31.3 |
1.6 |
2080 |
35 |
7/2.52 |
7.56 |
1.2 |
2.0 |
34.9 |
1.7 |
2730 |
50 |
19/1.78 |
8.9 |
1.4 |
2.2 |
40.9 |
2.0 |
3660 |
70 |
19/2.14 |
10.7 |
1.4 |
2.5 |
47.0 |
2.4 |
5190 |
95 |
19/2.52 |
12.6 |
1.6 |
2.8 |
54.9 |
2.7 |
6900 |
120 |
37/2.03 |
14.2 |
1.6 |
2.9 |
59.9 |
3.0 |
8530 |
150 |
37/2.25 |
15.8 |
1.8 |
3.2 |
66.5 |
3.3 |
10420 |
185 |
37/2.52 |
17.6 |
2.0 |
3.5 |
73.9 |
3.7 |
12960 |
0.6/1KV (FA-) 6PYC
导体 |
绝缘厚度 |
内衬厚度 |
钢丝直径 |
(FA-) 6PYC |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.3 |
0.3 |
15.7 |
0.8 |
500 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.3 |
0.3 |
17.0 |
0.9 |
590 |
4 |
7/0.85 |
2.55 |
1.0 |
1.4 |
0.3 |
18.9 |
0.9 |
720 |
6 |
7/1.04 |
3.12 |
1.0 |
1.4 |
0.3 |
20.6 |
1.0 |
890 |
10 |
7/1.35 |
4.05 |
1.0 |
1.6 |
0.3 |
23.8 |
1.2 |
1240 |
16 |
7/1.70 |
5.1 |
1.0 |
1.7 |
0.3 |
27.2 |
1.4 |
1670 |
25 |
7/2.14 |
6.42 |
1.2 |
1.9 |
0.3 |
32.9 |
1.6 |
2430 |
35 |
7/2.52 |
7.56 |
1.2 |
2.0 |
0.4 |
37.0 |
1.9 |
3130 |
50 |
19/1.78 |
8.9 |
1.4 |
2.2 |
0.4 |
43.0 |
2.2 |
4300 |
70 |
19/2.14 |
10.7 |
1.4 |
2.5 |
0.4 |
49.1 |
2.5 |
5970 |
95 |
19/2.52 |
12.6 |
1.6 |
2.8 |
0.4 |
57.0 |
2.9 |
7770 |
120 |
37/2.03 |
14.2 |
1.6 |
2.9 |
0.4 |
62.0 |
3.1 |
9490 |
150 |
37/2.25 |
15.8 |
1.8 |
3.2 |
0.4 |
68.6 |
3.4 |
11460 |
185 |
37/2.52 |
17.6 |
2.0 |
3.5 |
0.4 |
76.0 |
3.8 |
14110 |
0.6/1KV (FA-) 6PYCY
导体 |
绝缘厚度 |
内衬厚度 |
钢丝直径 |
护套厚度 |
(FA-) 6PYCY |
截面积 |
股数/直径 |
直径 |
电缆外径 |
允许误差 |
电缆重量 |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
1.5 |
7/0.53 |
1.59 |
1.0 |
1.3 |
0.3 |
1.0 |
17.8 |
0.9 |
600 |
2.5 |
7/0.67 |
2.01 |
1.0 |
1.3 |
0.3 |
1.0 |
19.1 |
1.0 |
700 |
4 |
7/0.85 |
2.55 |
1.0 |
1.4 |
0.3 |
1.1 |
21.3 |
1.1 |
870 |
6 |
7/1.04 |
3.12 |
1.0 |
1.4 |
0.3 |
1.1 |
23.0 |
1.2 |
1050 |
10 |
7/1.35 |
4.05 |
1.0 |
1.6 |
0.3 |
1.2 |
26.4 |
1.3 |
1430 |
16 |
7/1.70 |
5.1 |
1.0 |
1.7 |
0.3 |
1.3 |
30.0 |
1.5 |
1910 |
25 |
7/2.14 |
6.42 |
1.2 |
1.9 |
0.3 |
1.4 |
35.9 |
1.8 |
2730 |
35 |
7/2.52 |
7.56 |
1.2 |
2.0 |
0.4 |
1.5 |
40.2 |
2.0 |
3470 |
50 |
19/1.78 |
8.9 |
1.4 |
2.2 |
0.4 |
1.7 |
46.6 |
2.3 |
4720 |
70 |
19/2.14 |
10.7 |
1.4 |
2.5 |
0.4 |
1.8 |
53.0 |
2.7 |
6550 |
95 |
19/2.52 |
12.6 |
1.6 |
2.8 |
0.4 |
2.0 |
61.3 |
3.1 |
8430 |
120 |
37/2.03 |
14.2 |
1.6 |
2.9 |
0.4 |
2.2 |
66.7 |
3.3 |
10250 |
150 |
37/2.25 |
15.8 |
1.8 |
3.2 |
0.4 |
2.3 |
73.5 |
3.7 |
12370 |
185 |
37/2.52 |
17.6 |
2.0 |
3.5 |
0.4 |
2.5 |
81.4 |
4.1 |
15180 |
|
|
