车载电缆国标系列
低烟无卤阻燃薄壁多芯屏蔽电缆 WDZ-DCKP/B-100, WDZ-DCKP/B-125 250V, 750V
应用:
在铁路运输机车的内部或外部安装时用作电力和控制电缆,在这种环境下搬运和安装成本是需要考虑的很重要因素。用于控制,辅助和主
电路接线如有线电视吊带,开关和控制面板,驾驶台等。

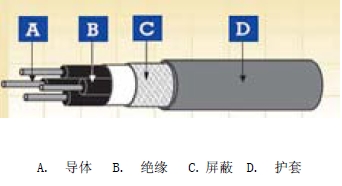

电缆结构:
导体:镀锡铜丝
绝缘 :低烟无卤阻燃复合物
分离层(如果需要)
填充物
屏蔽:镀锡铜线编织
护套:低烟无卤阻燃复合物
电气及机械性能:
标称电压 250V,750V
短路温度 100°C (WDZ-DCKP/B-100);
125° C (WDZ-DCKP/B-125)
工作温度 -40°C
最小弯曲半径 2 x OD(OD≤10mm);
4 x OD(10mm ≤ OD ≤ 20mm);
6 x OD(OD ≥ 20mm)
基本防火性能
阻燃 GB/T 18380.1-2001; GB/T 18380.3-2001 C
低腐蚀性(酸性&传导性) GB/T17650.1-1998; GB/T17650.2-1998
无卤 GB/T17650.1-1998; GB/T17650.2-1998
低烟 GB/T17651.1-1998; GB/T17651.2-1998 WDZ-DCKP/B-100, WDZ-DCKP/B-125 250V
芯数/导体截面积 | 导体结构 | 外径 | 重量 | 20°C导体最大电阻 |
---|---|---|---|---|
mm2 | No/mm | mm | kg/km | Ω/km |
2×0.5 | 16/0.20 | 5.8 | 67 | 40.1 |
3×0.5 | 16/0.20 | 6.5 | 76 | 40.1 |
5×0.5 | 16/0.20 | 7.3 | 100 | 40.1 |
7×0.5 | 16/0.20 | 7.8 | 118 | 40.1 |
11×0.5 | 16/0.20 | 9.5 | 166 | 40.1 |
16×0.5 | 16/0.20 | 10.3 | 209 | 40.1 |
19×0.5 | 16/0.20 | 10.8 | 232 | 40.1 |
20×0.5 | 16/0.20 | 11.3 | 246 | 40.1 |
24×0.5 | 16/0.20 | 12.3 | 283 | 40.1 |
33×0.5 | 16/0.20 | 13.8 | 369 | 40.1 |
37×0.5 | 16/0.20 | 14.2 | 400 | 40.1 |
43×0.5 | 16/0.20 | 15.8 | 459 | 40.1 |
48×0.5 | 16/0.20 | 16.0 | 494 | 40.1 |
2×0.75 | 24/0.20 | 6.3 | 79 | 26.7 |
3×0.75 | 24/0.20 | 7.0 | 90 | 26.7 |
5×0.75 | 24/0.20 | 8.0 | 120 | 26.7 |
7×0.75 | 24/0.20 | 8.5 | 144 | 26.7 |
11×0.75 | 24/0.20 | 10.5 | 207 | 26.7 |
16×0.75 | 24/0.20 | 11.5 | 263 | 26.7 |
19×0.75 | 24/0.20 | 12.0 | 296 | 26.7 |
20×0.75 | 24/0.20 | 12.5 | 314 | 26.7 |
24×0.75 | 24/0.20 | 14.2 | 377 | 26.7 |
33×0.75 | 24/0.20 | 15.4 | 476 | 26.7 |
37×0.75 | 24/0.20 | 15.9 | 519 | 26.7 |
43×0.75 | 24/0.20 | 17.7 | 597 | 26.7 |
48×0.75 | 24/0.20 | 18.0 | 647 | 26.7 |
2×1.0 | 32/0.20 | 6.7 | 89 | 20.0 |
3×1.0 | 32/0.20 | 7.4 | 102 | 20.0 |
5×1.0 | 32/0.20 | 8.4 | 139 | 20.0 |
7×1.0 | 32/0.20 | 9.0 | 169 | 20.0 |
11×1.0 | 32/0.20 | 11.3 | 244 | 20.0 |
16×1.0 | 32/0.20 | 12.3 | 315 | 20.0 |
19×1.0 | 32/0.20 | 13.3 | 370 | 20.0 |
20×1.0 | 32/0.20 | 13.9 | 392 | 20.0 |
24×1.0 | 32/0.20 | 15.2 | 454 | 20.0 |
33×1.0 | 32/0.20 | 16.6 | 579 | 20.0 |
37×1.0 | 32/0.20 | 17.2 | 633 | 20.0 |
43×1.0 | 32/0.20 | 19.7 | 774 | 20.0 |
48×1.0 | 32/0.20 | 20.0 | 838 | 20.0 |
2×1.5 | 48/0.20 | 7.3 | 107 | 13.7 |
3×1.5 | 48/0.20 | 8.0 | 125 | 13.7 |
5×1.5 | 48/0.20 | 9.2 | 175 | 13.7 |
7×1.5 | 48/0.20 | 9.9 | 216 | 13.7 |
11×1.5 | 48/0.20 | 12.5 | 318 | 13.7 |
16×1.5 | 48/0.20 | 14.1 | 430 | 13.7 |
19×1.5 | 48/0.20 | 14.8 | 489 | 13.7 |
20×1.5 | 48/0.20 | 15.4 | 519 | 13.7 |
24×1.5 | 48/0.20 | 17.0 | 603 | 13.7 |
33×1.5 | 48/0.20 | 19.1 | 823 | 13.7 |
37×1.5 | 48/0.20 | 19.8 | 901 | 13.7 |
43×1.5 | 48/0.20 | 22.0 | 1037 | 13.7 |
48×1.5 | 48/0.20 | 22.4 | 1128 | 13.7 |
2×2.5 | 77/0.20 | 8.2 | 139 | 8.21 |
3×2.5 | 77/0.20 | 9.0 | 171 | 8.21 |
5×2.5 | 77/0.20 | 10.5 | 240 | 8.21 |
7×2.5 | 77/0.20 | 11.3 | 300 | 8.21 |
11×2.5 | 77/0.20 | 14.8 | 462 | 8.21 |
16×2.5 | 77/0.20 | 16.3 | 612 | 8.21 |
19×2.5 | 77/0.20 | 17.1 | 701 | 8.21 |
20×2.5 | 77/0.20 | 17.9 | 744 | 8.21 |
24×2.5 | 77/0.20 | 20.4 | 917 | 8.21 |
33×2.5 | 77/0.20 | 22.3 | 1187 | 8.21 |
37×2.5 | 77/0.20 | 23.1 | 1306 | 8.21 |
43×2.5 | 77/0.20 | 26.0 | 1519 | 8.21 |
48×2.5 | 77/0.20 | 26.4 | 1658 | 8.21 |
2×4.0 | 77/0.26 | 9.4 | 189 | 5.09 |
3×4.0 | 77/0.26 | 10.3 | 240 | 5.09 |
5×4.0 | 77/0.26 | 12.1 | 344 | 5.09 |
芯数/导体截面积 | 导体结构 | 外径 | 重量 | 20°C导体最大电阻 |
---|---|---|---|---|
mm2 | No/mm | mm | kg/km | Ω/km |
7×4.0 | 77/0.26 | 13.5 | 455 | 5.09 |
11×4.0 | 77/0.26 | 17.3 | 686 | 5.09 |
16×4.0 | 77/0.26 | 19.7 | 967 | 5.09 |
19×4.0 | 77/0.26 | 20.7 | 1110 | 5.09 |
20×4.0 | 77/0.26 | 21.7 | 1178 | 5.09 |
24×4.0 | 77/0.26 | 24.2 | 1398 | 5.09 |
33×4.0 | 77/0.26 | 26.5 | 1821 | 5.09 |
37×4.0 | 77/0.26 | 27.5 | 2008 | 5.09 |
43×4.0 | 77/0.26 | 31.0 | 2366 | 5.09 |
48×4.0 | 77/0.26 | 31.5 | 2592 | 5.09 |
芯数/导体截面积 | 导体结构 | 外径 | 重量 | 20°C导体最大电阻 |
---|---|---|---|---|
mm2 | No/mm | mm | kg/km | Ω/km |
2×0.5 | 16/0.20 | 6.0 | 72 | 40.1 |
3×0.5 | 16/0.20 | 6.7 | 80 | 40.1 |
5×0.5 | 16/0.20 | 7.6 | 105 | 40.1 |
7×0.5 | 16/0.20 | 8.1 | 124 | 40.1 |
11×0.5 | 16/0.20 | 9.9 | 175 | 40.1 |
16×0.5 | 16/0.20 | 10.8 | 219 | 40.1 |
19×0.5 | 16/0.20 | 11.3 | 245 | 40.1 |
20×0.5 | 16/0.20 | 11.8 | 260 | 40.1 |
24×0.5 | 16/0.20 | 13.3 | 312 | 40.1 |
33×0.5 | 16/0.20 | 14.5 | 389 | 40.1 |
37×0.5 | 16/0.20 | 14.9 | 422 | 40.1 |
43×0.5 | 16/0.20 | 16.6 | 485 | 40.1 |
48×0.5 | 16/0.20 | 16.8 | 522 | 40.1 |
2×0.75 | 24/0.20 | 6.5 | 83 | 26.7 |
3×0.75 | 24/0.20 | 7.2 | 94 | 26.7 |
5×0.75 | 24/0.20 | 8.2 | 126 | 26.7 |
7×0.75 | 24/0.20 | 8.8 | 151 | 26.7 |
11×0.75 | 24/0.20 | 10.9 | 216 | 26.7 |
16×0.75 | 24/0.20 | 11.9 | 274 | 26.7 |
19×0.75 | 24/0.20 | 12.5 | 310 | 26.7 |
20×0.75 | 24/0.20 | 13.5 | 342 | 26.7 |
24×0.75 | 24/0.20 | 14.8 | 394 | 26.7 |
33×0.75 | 24/0.20 | 16.1 | 499 | 26.7 |
37×0.75 | 24/0.20 | 16.6 | 543 | 26.7 |
43×0.75 | 24/0.20 | 19.1 | 670 | 26.7 |
48×0.75 | 24/0.20 | 19.4 | 722 | 26.7 |
2×1.0 | 32/0.20 | 6.9 | 92 | 20.0 |
3×1.0 | 32/0.20 | 7.6 | 106 | 20.0 |
5×1.0 | 32/0.20 | 8.7 | 145 | 20.0 |
7×1.0 | 32/0.20 | 9.3 | 176 | 20.0 |
11×1.0 | 32/0.20 | 11.7 | 255 | 20.0 |
16×1.0 | 32/0.20 | 12.8 | 328 | 20.0 |
19×1.0 | 32/0.20 | 13.8 | 385 | 20.0 |
20×1.0 | 32/0.20 | 14.4 | 408 | 20.0 |
24×1.0 | 32/0.20 | 15.8 | 472 | 20.0 |
33×1.0 | 32/0.20 | 17.3 | 602 | 20.0 |
37×1.0 | 32/0.20 | 17.9 | 675 | 20.0 |
43×1.0 | 32/0.20 | 20.5 | 806 | 20.0 |
48×1.0 | 32/0.20 | 20.8 | 873 | 20.0 |
2×1.5 | 48/0.20 | 7.5 | 111 | 13.7 |
3×1.5 | 48/0.20 | 8.2 | 129 | 13.7 |
5×1.5 | 48/0.20 | 9.5 | 181 | 13.7 |
7×1.5 | 48/0.20 | 10.2 | 224 | 13.7 |
11×1.5 | 48/0.20 | 13.3 | 342 | 13.7 |
芯数/导体截面积 | 导体结构 | 外径 | 重量 | 20°C导体最大电阻 |
---|---|---|---|---|
mm2 | No/mm | mm | kg/km | Ω/km |
16×1.5 | 48/0.20 | 14.6 | 443 | 13.7 |
19×1.5 | 48/0.20 | 15.3 | 505 | 13.7 |
20×1.5 | 48/0.20 | 15.9 | 536 | 13.7 |
24×1.5 | 48/0.20 | 17.6 | 623 | 13.7 |
33×1.5 | 48/0.20 | 19.8 | 851 | 13.7 |
37×1.5 | 48/0.20 | 20.5 | 931 | 13.7 |
43×1.5 | 48/0.20 | 22.8 | 1072 | 13.7 |
48×1.5 | 48/0.20 | 23.2 | 1165 | 13.7 |
2×2.5 | 77/0.20 | 8.4 | 143 | 8.21 |
3×2.5 | 77/0.20 | 9.2 | 176 | 8.21 |
5×2.5 | 77/0.20 | 10.8 | 246 | 8.21 |
7×2.5 | 77/0.20 | 11.6 | 308 | 8.21 |
11×2.5 | 77/0.20 | 15.2 | 475 | 8.21 |
16×2.5 | 77/0.20 | 16.8 | 629 | 8.21 |
19×2.5 | 77/0.20 | 17.6 | 719 | 8.21 |
20×2.5 | 77/0.20 | 19.0 | 809 | 8.21 |
24×2.5 | 77/0.20 | 21.0 | 942 | 8.21 |
33×2.5 | 77/0.20 | 23.0 | 1219 | 8.21 |
37×2.5 | 77/0.20 | 24.0 | 1351 | 8.21 |
43×2.5 | 77/0.20 | 26.8 | 1559 | 8.21 |
48×2.5 | 77/0.20 | 27.2 | 1702 | 8.21 |
2×4.0 | 77/0.26 | 9.6 | 194 | 5.09 |
3×4.0 | 77/0.26 | 10.5 | 244 | 5.09 |
5×4.0 | 77/0.26 | 12.4 | 351 | 5.09 |
7×4.0 | 77/0.26 | 13.8 | 463 | 5.09 |
11×4.0 | 77/0.26 | 17.7 | 696 | 5.09 |
16×4.0 | 77/0.26 | 20.2 | 987 | 5.09 |
19×4.0 | 77/0.26 | 21.2 | 1132 | 5.09 |
20×4.0 | 77/0.26 | 22.2 | 1202 | 5.09 |
24×4.0 | 77/0.26 | 24.8 | 1418 | 5.09 |
33×4.0 | 77/0.26 | 27.2 | 1857 | 5.09 |
37×4.0 | 77/0.26 | 28.2 | 2047 | 5.09 |
43×4.0 | 77/0.26 | 31.8 | 2413 | 5.09 |
48×4.0 | 77/0.26 | 32.3 | 2643 | 5.09 |
