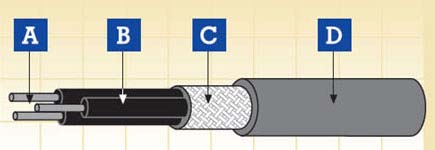

A.Conductor B.Insulation C.Screen D.Sheath
Application
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construction
Chef d'orchestre
Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
Isolation
LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 105)
Globale écran
Tinned annealed copper wires
Gaine
LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104)
Electrical & Mechanical Properties
| Tension nominale |
300/500 V or 0.6/1 kV |
| Température maximale Chef d'orchestre |
+90 deg (fixed installation) |
| Minimale admissible de température ambiante |
-25/-40 deg (fixed installation) |
| Rayon de courbure |
10 x Overall Diameter |
Chemical & Environmental Properties
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to oil & fuel |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1; BS 4066-1 |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3C; |
Fire propagation of bunched wires and cables; |
| VDE 0472 Teil 804; BS 4066-3; NFC 32070 |
|
| EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 |
Smoke density |
| EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 |
Corrosivity of gases (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Toxicity index |
| NFF 16101; NFF 63808; BS6853 |
Smoke index |
FRL-SW-05M-OS 300/500 V
Nominal cross-sectional area
(a)
|
Les chefs de diamètre (b) |
min. épaisseur moyenne de l'isolation |
diamètre de base (b) |
Max. diamètre du fil de l'écran |
min.mean épaisseur de la gaine |
Diamètre total projeté |
Poids |
tance conduite résistPoidsance à 20 ° C |
tance résistance d'isolation à 20 ° C |
tance résistance d'isolation à 20 ° C |
EI 105 |
EI 101-EI 104 |
min |
max |
max |
min |
min |
n x mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
kg
/km |
Ω/km |
MΩ·km |
MΩ·km |
2x1 |
1.25 |
0.6 |
2.6 |
0.16 |
1.4 |
8.1 |
9.5 |
110 |
20.0 |
140 |
70 |
4x1 |
0.6 |
2.6 |
0.16 |
1.4 |
9.0 |
10.6 |
150 |
20.0 |
140 |
70 |
7x1 |
0.6 |
2.6 |
0.16 |
1.4 |
10.4 |
12.2 |
210 |
20.0 |
140 |
70 |
9x1 |
0.6 |
2.6 |
0.21 |
1.4 |
12.5 |
14.6 |
290 |
20.0 |
140 |
70 |
12x1 |
0.6 |
2.6 |
0.21 |
1.4 |
13.3 |
15.6 |
330 |
20.0 |
140 |
70 |
19x1 |
0.6 |
2.6 |
0.26 |
1.5 |
15.7 |
18.4 |
490 |
20.0 |
140 |
70 |
24x1 |
0.6 |
2.6 |
0.26 |
1.6 |
18.1 |
21.2 |
630 |
20.0 |
140 |
70 |
32x1 |
0.6 |
2.6 |
0.26 |
1.6 |
19.7 |
23.1 |
760 |
20.0 |
140 |
70 |
37x1 |
0.6 |
2.6 |
0.26 |
1.7 |
20.7 |
24.2 |
840 |
20.0 |
140 |
70 |
40x1 |
0.6 |
2.6 |
0.26 |
1.7 |
21.4 |
25.1 |
910 |
20.0 |
140 |
70 |
4x1.5 |
1.5 |
0.7 |
3.0 |
0.16 |
1.4 |
10.1 |
11.8 |
200 |
13.7 |
120 |
60 |
7x1.5 |
0.7 |
3.0 |
0.21 |
1.4 |
11.9 |
14.0 |
290 |
13.7 |
120 |
60 |
9x1.5 |
0.7 |
3.0 |
0.21 |
1.4 |
14.1 |
16.5 |
380 |
13.7 |
120 |
60 |
12x1.5 |
0.7 |
3.0 |
0.21 |
1.5 |
15.8 |
18.5 |
450 |
13.7 |
120 |
60 |
19x1.5 |
0.7 |
3.0 |
0.26 |
1.5 |
17.8 |
20.8 |
660 |
13.7 |
120 |
60 |
24x1.5 |
0.7 |
3.0 |
0.26 |
1.6 |
20.7 |
24.2 |
850 |
13.7 |
120 |
60 |
32x1.5 |
0.7 |
3.0 |
0.26 |
1.7 |
22.7 |
26.6 |
1050 |
13.7 |
120 |
60 |
37x1.5 |
0.7 |
3.0 |
0.26 |
1.7 |
23.6 |
27.6 |
1160 |
13.7 |
120 |
60 |
4x2.5 |
1.95 |
0.8 |
3.7 |
0.21 |
1.4 |
11.8 |
13.9 |
280 |
8.21 |
90 |
45 |
7x2.5 |
0.8 |
3.7 |
0.21 |
1.4 |
13.7 |
16.1 |
400 |
8.21 |
90 |
45 |
9x2.5 |
0.8 |
3.7 |
0.26 |
1.5 |
16.8 |
19.7 |
560 |
8.21 |
90 |
45 |
12x2.5 |
0.8 |
3.7 |
0.26 |
1.5 |
18.0 |
21.1 |
660 |
8.21 |
90 |
45 |
19x2.5 |
0.8 |
3.7 |
0.26 |
1.6 |
21.1 |
24.6 |
950 |
8.21 |
90 |
45 |
24x2.5 |
0.8 |
3.7 |
0.26 |
1.8 |
24.7 |
28.9 |
1260 |
8.21 |
90 |
45 |
(a)= One earth conductor (green/yellow) can be included upon request
(b)= For information,indicative only
FRL-SW-1M-OS 0.6/1 kV
Nominal cross-sectional area (a) |
Les chefs de diamètre (a) |
min. épaisseur moyenne de l'isolation |
diamètre de base
.(mm) |
diamètre de base
.(mm) |
Max. diamètre du fil de l'écran |
min.mean épaisseur de la gaine |
Diamètre total projeté |
Poids |
tance conduite résistance à 20 ° C |
tance résistance d'isolation à 20 ° C CEI 105 |
tance résistance d'isolation à 20 ° C C
EI 101-EI 104 |
min |
max |
max |
min |
min |
N x mm2 |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
Kg/km |
Ω/km |
MΩ·km |
MΩ·km |
TWO CORES |
1.5 |
1.5 |
0.8 |
3.0 |
3.5 |
0.16 |
1.4 |
9.3 |
10.9 |
150 |
13.7 |
150 |
75 |
2.5 |
1.95 |
0.8 |
3.4 |
3.9 |
0.16 |
1.4 |
10.2 |
11.9 |
180 |
8.21 |
130 |
65 |
4 |
2.5 |
0.8 |
3.9 |
4.6 |
0.21 |
1.4 |
11.5 |
13.4 |
240 |
5.09 |
110 |
55 |
6 |
3.0 |
0.9 |
4.6 |
5.4 |
0.21 |
1.4 |
12.9 |
15.1 |
300 |
3.39 |
90 |
45 |
10 |
3.9 |
1.1 |
5.8 |
6.8 |
0.21 |
1.5 |
15.5 |
18.2 |
460 |
1.95 |
85 |
45 |
16 |
5.0 |
1.1 |
7.2 |
8.5 |
0.26 |
1.5 |
17.9 |
20.9 |
610 |
1.24 |
70 |
35 |
25 |
6.4 |
1.3 |
8.6 |
10.0 |
0.26 |
1.7 |
21.6 |
25.3 |
830 |
0.795 |
65 |
35 |
35 |
7.7 |
1.3 |
10.2 |
11.5 |
0.31 |
1.8 |
24.4 |
28.6 |
1130 |
0.565 |
60 |
30 |
50 |
9.2 |
1.5 |
11.6 |
13.5 |
0.31 |
1.9 |
28.2 |
33.0 |
1500 |
0.393 |
55 |
30 |
THREE CORES |
1.5 |
1.5 |
0.8 |
3.0 |
3.5 |
0.16 |
1.4 |
9.8 |
11.4 |
180 |
13.7 |
150 |
75 |
2.5 |
1.95 |
0.8 |
3.4 |
3.9 |
0.16 |
1.4 |
10.7 |
12.5 |
220 |
8.21 |
130 |
65 |
4 |
2.5 |
0.8 |
3.9 |
4.6 |
0.21 |
1.4 |
12.0 |
14.1 |
300 |
5.09 |
110 |
55 |
6 |
3.0 |
0.9 |
4.6 |
5.4 |
0.21 |
1.4 |
13.6 |
16.0 |
380 |
3.39 |
90 |
45 |
10 |
3.9 |
1.1 |
5.8 |
6.8 |
0.26 |
1.5 |
16.7 |
19.6 |
620 |
1.95 |
85 |
45 |
16 |
5.0 |
1.1 |
7.2 |
8.5 |
0.26 |
1.6 |
19.1 |
22.3 |
800 |
1.24 |
70 |
35 |
25 |
6.4 |
1.3 |
8.6 |
10.0 |
0.26 |
1.7 |
22.9 |
26.8 |
1140 |
0.795 |
65 |
35 |
35 |
7.7 |
1.3 |
10.2 |
11.5 |
0.31 |
1.8 |
26.0 |
30.5 |
1500 |
0.565 |
60 |
30 |
50 |
9.2 |
1.5 |
11.6 |
13.5 |
0.31 |
2.0 |
30.3 |
35.4 |
2050 |
0.393 |
55 |
30 |
FOUR CORES |
1.5 |
1.5 |
0.8 |
3.0 |
3.5 |
0.16 |
1.4 |
10.5 |
12.3 |
210 |
13.7 |
150 |
75 |
2.5 |
1.95 |
0.8 |
3.4 |
3.9 |
0.21 |
1.4 |
11.8 |
13.9 |
280 |
8.21 |
130 |
65 |
4 |
2.5 |
0.8 |
3.9 |
4.6 |
0.21 |
1.4 |
13.1 |
15.3 |
360 |
5.09 |
110 |
55 |
6 |
3.0 |
0.9 |
4.6 |
5.4 |
0.21 |
1.4 |
14.9 |
17.4 |
470 |
3.39 |
90 |
45 |
10 |
3.9 |
1.1 |
5.8 |
6.8 |
0.26 |
1.6 |
18.4 |
21.6 |
780 |
1.95 |
85 |
45 |
16 |
5.0 |
1.1 |
7.2 |
8.5 |
0.26 |
1.7 |
21.1 |
24.6 |
1020 |
1.24 |
70 |
35 |
25 |
6.4 |
1.3 |
8.6 |
10.0 |
0.31 |
1.8 |
25.6 |
29.9 |
1490 |
0.795 |
65 |
35 |
3X35+25 |
7.7/6.4 |
1.3/1.3 |
10.2/8.6 |
11.5/10.0 |
0.31 |
1.9 |
30.0 |
35.1 |
1820 |
0.565
/0.795 |
60 |
30 |
3X50+25 |
9.2/6.4 |
1.5/1.3 |
11.6/8.6 |
13.5/10.0 |
0.31 |
2.1 |
34.9 |
40.8 |
2480 |
0.393
/0.795 |
55 |
30 |
(a)= For information,indicative only
Rolling Stock câble
