 Rolling Stock câble
EN 50306 Thin Wall Instrumentation & Control Cable
FIREROL FRL-TW-05M-ESW
300/500 V - multi - core with exposed Standard Wall sheath

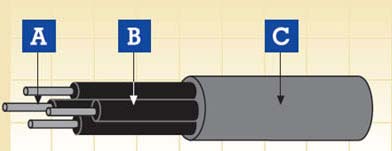

A.Conductor B.Insulation C.Sheath
Application
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construction
Chef d'orchestre
Tinned annealed copper wires as defined in EN 50306-2
Isolation
LSZH special compound
Globale écran
LSZH special compound (S2. EM101- EM104)
Electrical & Mechanical Properties
| Tension nominale |
300/500 V |
| Température maximale Chef d'orchestre |
+120/+150 deg (fixed installation) |
| Minimale admissible de température ambiante |
-25/-40 deg (fixed installation) |
| Rayon de courbure |
3 x Overall Diameter
(D<12mm); |
| |
4 x Overall Diameter (D>12mm) |
Chemical & Environmental Properties
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to oil & fuel |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1; BS 4066-1 |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3C; |
Fire propagation of bunched wires and cables; |
| VDE 0472 Teil 804; BS 4066-3; NFC 32070 |
|
| EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 |
Smoke density |
| EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 |
Corrosivity of gases (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Toxicity index |
| NFF 16101; NFF 63808; BS6853 |
Smoke index |
FRL-TW-05M-ESW 300/500 V
Nominal cross-sectional area |
Épaisseur minimale de la gaine at out moment |
overall diameter
|
Poids |
(mm2) |
(mm) |
min. (mm) |
max. (mm) |
(kg/km) |
4 x 0.5 |
1.0 |
5.5 |
6.5 |
50 |
7 x 0.5 |
1.0 |
6.3 |
7.3 |
70 |
13 x 0.5 |
1.0 |
8.3 |
9.3 |
120 |
19 x 0.5 |
1.0 |
9.0 |
10.2 |
150 |
37 x 0.5 |
1.0 |
12.3 |
13.5 |
290 |
|
|
|
|
|
4 x 0.75 |
1.0 |
6.0 |
7.0 |
60 |
7 x 0.75 |
1.0 |
6.9 |
7.9 |
90 |
13 x 0.75 |
1.0 |
9.1 |
10.3 |
150 |
19 x 0.75 |
1.0 |
10.0 |
11.2 |
200 |
37 x 0.75 |
1.0 |
13.2 |
14.4 |
360 |
48 x 0.75 |
1.0 |
14.8 |
16.4 |
460 |
|
|
|
|
|
4 x 1.0 |
1.0 |
6.3 |
7.3 |
70 |
7 x 1.0 |
1.0 |
7.3 |
8.3 |
110 |
13 x 1.0 |
1.0 |
9.7 |
10.9 |
180 |
19 x 1.0 |
1.0 |
10.7 |
11.9 |
250 |
37 x 1.0 |
1.0 |
14.0 |
15.6 |
450 |
|
|
|
|
|
4 x 1.5 |
1.0 |
7.4 |
8.4 |
100 |
7 x 1.5 |
1.0 |
8.6 |
9.8 |
150 |
13 x 1.5 |
1.0 |
11.7 |
12.9 |
270 |
19 x 1.5 |
1.0 |
13.0 |
14.2 |
370 |
37 x 1.5 |
1.0 |
17.2 |
18.8 |
690 |
|
|
|
|
|
2 x 2.5 |
1.0 |
7.7 |
8.7 |
90 |
3 x 2.5 |
1.0 |
8.1 |
9.1 |
120 |
4 x 2.5 |
1.0 |
8.8 |
10.0 |
150 |
|
