EN 50306 Thin Wall Instrumentation & Control Cable
FIREROL FRL-TW-05M-OS
300/500 V - multi - core screened

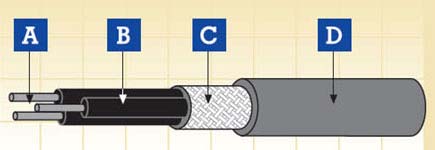

A.Conductor B.Insulation C.Screen D.Sheath
Aanvraag
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Bouw
Dirigent
Tinned annealed copper wires as defined in EN 50306-2
Isolatie
LSZH special compound
Overal scherm
Tinned annealed copper wires
Outer sheath
LSZH special compound (S1 & S2)
Electrical & Mechanical Properties
| Nominal Voltage |
300/500 V |
| Maximum Conductor Temperature |
+120/+150 deg (fixed installation) |
| Minimum Permissible Ambient Temperature |
-25/-40 deg (fixed installation) |
| Bending Radius |
10 x Overall Diameter |
Chemical & Environmental Properties
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to oil & fuel |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2/HL3, HL4 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
FO |
Fire Performance in general
| EN 50265-2-1; IEC 60332-1; BS 4066-1 |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3C; |
Fire propagation of bunched wires and cables; |
| VDE 0472 Teil 804; BS 4066-3; NFC 32070 |
|
| EN 50268-2; IEC 61034-2; VDE 0472 Teil 816 |
Smoke density |
| EN 50267-2-1; IEC 60754-1; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; VDE 0472 Teil 813 |
Corrosivity of gases (Acidity & Conductivity) |
| EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 |
Toxicity index |
| NFF 16101; NFF 63808; BS6853 |
Smoke index |
FRL-TW-05M-OS 300/500 V
Aantal kernen en de nominale dwarsdoorsnede |
Minimale dikte van de sheath op elk punt |
Algehele diameter |
Gewicht |
(mm2) |
(mm) |
min. (mm) |
max. (mm) |
(kg/km) |
2 x 0.5 |
0.20 |
3.5 |
4.3 |
30 |
3 x 0.5 |
0.20 |
3.7 |
4.5 |
30 |
4 x 0.5 |
0.20 |
4.0 |
5.0 |
40 |
2 x 0.75 |
0.20 |
3.9 |
4.7 |
30 |
3 x 0.75 |
0.20 |
4.0 |
5.0 |
40 |
4 x 0.75 |
0.20 |
4.5 |
5.5 |
60 |
2 x 1 |
0.20 |
4.2 |
5.2 |
40 |
3 x 1 |
0.20 |
4.5 |
5.5 |
55 |
4 x 1 |
0.20 |
5.0 |
6.0 |
70 |
2 x 1.5 |
0.20 |
5.1 |
6.1 |
60 |
3 x 1.5 |
0.20 |
5.4 |
6.4 |
80 |
4 x 1.5 |
0.20 |
6.0 |
7.0 |
100 |
2 x 2.5 |
0.20 |
6.4 |
7.4 |
90 |
3 x 2.5 |
0.20 |
6.8 |
7.8 |
120 |
4 x 2.5 |
0.20 |
7.5 |
8.5 |
140 |
|
