BS 5308 Cables
BS5308 Cable Part 1 Type 2 MG-XLPE-IS-OS-SWA-LSOH
Application
BS5308 Cable Part 1 Type 2 MG-XLPE-IS-OS-SWA-LSOH are typically used in chemical and process industries
where there is danger of fire. The galvanised steel wire armour provides excellent protection.

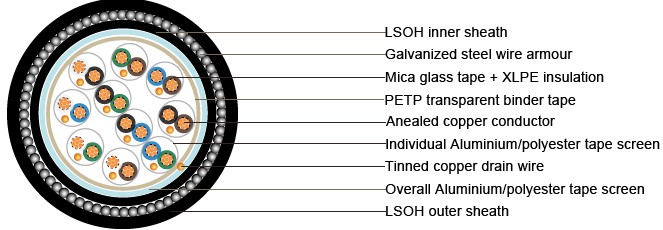

Construction
Conductor :Annealed copper, Class 2
Insulation :Mica glass tape, XLPE (Cross Linked Polyethylene), or PE (optional)
Pairing :Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Colour code:See technical information
Individual screen :Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned
copper drain wire, 0.5mm²
Binder tape :PETP transparent tape
Collective screen:Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with
tinned copper drain wire, 0.5mm²
Inner Sheath:LSOH(Low Smoke Zero Halogen) sheath
Amour:Galvanized steel wire armour
Outer sheath:LSOH(Low Smoke Zero Halogen) sheath Flame retardant to IEC60332-3-22 Fire resistant to
IEC60331 Halogen free to IEC60754-1 Low smoke emission to IEC61034-1-2
Sheath colour :Black or blue
Mechanical and Electrical Properties
Operating temperature: -20˚C up to + 90˚C( fixed installation)
0˚C to +50˚C(during operation )
Minimum bending radius: 6 x overall diameter
| Conductor Area Size | mm2 | 0.5 | 0.75 | 1.0 | 1.5 | |
| Conductor Stranding | No. x mm | 7 x 0.3 | 7 x 0.37 | 7 x 0.43 | 7 x 0.53 | |
| Conductor resistance max | ohm/km | 39 | 24.5 | 18.1 | 12.1 | |
| Insulation resistance min | Gohm/km | 5 | 5 | 5 | 5 | |
| Capacitance unbalance at 1 kHz(pair to pair screen) | pF/250m | 250 | ||||
| Max. Mutual Capacitance @ 1 kHz for Non OS or OS cables (except one-pair and two-pairs) | pF/m | 115 | 115 | 115 | 115 | |
| Max. Mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair) | pF/m | 75 | 75 | 75 | 75 | |
| Max. L/R Ratio for adjacent cores(Inductance/Resistance) | μH/ohm | 25 | 25 | 25 | 40 | |
| Test voltage | Core to core | V | 1000 | 1000 | 1000 | 1000 |
| Core to screen | V | 1000 | 1000 | 1000 | 1000 | |
| Rated voltage max | V | 300/500 | 300/500 | 300/500 | 300/500 | |
| No.of Pairs | No.and Dia. of Wires | Nominal Conductor Cross-Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of bedding | Nominal Dia. over Bedding | Nominal Thickness of Armour | Nominal Thickness of Sheath | Nominal Dia. of Cable | Approx.Weight |
| no./mm | mm2 | mm | mm | mm | mm | mm | mm | kg/km | |
| 5 | 7/0.37 | 0.75 | 0.6 | 0.8 | 15.0 | 0.9 | 1.4 | 20.3 | 870 |
| 10 | 7/0.37 | 0.75 | 0.6 | 0.8 | 19.8 | 0.9 | 1.4 | 25.9 | 1480 |
| 5 | 7/0.43 | 1 | 0.6 | 0.8 | 14.8 | 0.9 | 1.4 | 20.0 | 890 |
