BS5308 Cable Part 1 Type1 XLPE-OS-LSOH
Application
BS5308 Cable Part 1 Type1 XLPE-OS-LSOH are generally use for indoor installation and suitable for wet and
damp areas. Generally used within industrial process manufacturing plants for communication, data and voice
transmission signals and services, Also used for the interconnection of electrical equipment and instruments, the
LSOH sheath can reduce toxic smoke and fume emission.

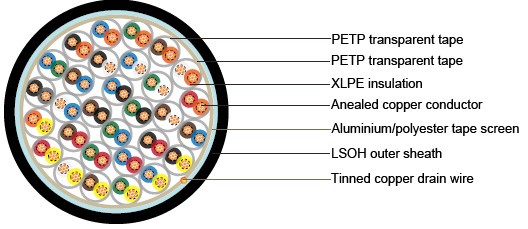

Construction
Conductor :Annealed copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 0.5 mm², 1.0 mm² solid(Class
1), 1.5mm² or 2.5mm², multistranded(Class 2) to BS6360
Insulation :XLPE (Cross Linked Polyethylene), or PE (optional)
Pairing:Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Colour code :See technical information
Binder tape :PETP transparent tape
Collective screen :Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with
tinned copper drain wire, 0.5mm²
Outer sheath :LSOH(Low Smoke Zero Halogen) sheath Flame retardant to IEC60332-3-22 Fire resistant to
IEC60331 Halogen free to IEC60754-1 Low smoke emission to IEC61034-1-2
Sheath colour :Black or blue
Mechanical and Electrical Properties
Operating temperature: -20˚C up to + 90˚C( fixed installation)
0˚C to +50˚C(during operation)
Minimum bending radius: 5 x overall diameter
| Conductor Area Size | mm2 | 0.5 | 0.5 | 0.75 | 1.0 | 1.5 | |
| Conductor Stranding | No. x mm | 1 x 0.8 | 16 x 0.2 | 24 x 0.2 | 1 x 1.13 | 7 x 0.53 | |
| Conductor resistance max | ohm/km | 36.8 | 39.7 | 26.5 | 18.2 | 12.3 | |
| Insulation resistance min | Gohm/km | 5 | 5 | 5 | 5 | 5 | |
| Capacitance unbalance at 1 kHz(pair to pair screen) | pF/250m | 250 | |||||
| Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables (except one-pair and two-pairs) | pF/m | 115 | 115 | 115 | 115 | 115 | |
| Max. Mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair) | pF/m | 75 | 75 | 75 | 75 | 75 | |
| Max. L/R Ratio for adjacent cores(Inductance/Resistance) | μH/ohm | 25 | 25 | 25 | 25 | 40 | |
| Test voltage | Core to core | V | 1000 | 1000 | 1000 | 1000 | 1000 |
| Core to screen | V | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Rated voltage max | V | 300/500 | 300/500 | 300/500 | 300/500 | 300/500 | |
| Number of Pairs | Number and Diameter of Wires | Nominal Conductor Cross-Sectional Area | Nominal Radial Thickness of Insulation | Nominal Thickness of Sheath | Nominal Diameter of Cable | Approx.Weight |
| no./mm | mm2 | mm | mm | mm | kg/km | |
| 2 | 16/0.20 | 0.5 | 0.6 | 0.8 | 7.6 | 80 |
| 5 | 16/0.20 | 0.5 | 0.6 | 1.1 | 12.4 | 210 |
| 10 | 16/0.20 | 0.5 | 0.6 | 1.2 | 16.5 | 340 |
| 15 | 16/0.20 | 0.5 | 0.6 | 1.3 | 19.2 | 440 |
| 20 | 16/0.20 | 0.5 | 0.6 | 1.3 | 21.7 | 570 |
| 30 | 16/0.20 | 0.5 | 0.6 | 1.5 | 26.4 | 780 |
| 50 | 16/0.20 | 0.5 | 0.6 | 1.7 | 33.4 | 1130 |
| 1 | 24/0.2 | 0.75 | 0.6 | 0.8 | 6.7 | 75 |
| 2 | 24/0.2 | 0.75 | 0.6 | 0.9 | 8.4 | 100 |
| 5 | 24/0.2 | 0.75 | 0.6 | 1.2 | 13.8 | 250 |
| 10 | 24/0.2 | 0.75 | 0.6 | 1.3 | 18.4 | 450 |
| 15 | 24/0.2 | 0.75 | 0.6 | 1.5 | 21.1 | 600 |
| 20 | 24/0.2 | 0.75 | 0.6 | 1.5 | 24.4 | 920 |
| 30 | 24/0.2 | 0.75 | 0.6 | 1.7 | 29.5 | 980 |
| 50 | 24/0.2 | 0.75 | 0.6 | 2 | 37.6 | 1690 |
| 1 | 1/1.13 | 1 | 0.6 | 0.8 | 6.6 | 85 |
| 2 | 1/1.13 | 1 | 0.6 | 0.8 | 8 | 115 |
| 5 | 1/1.13 | 1 | 0.6 | 1.2 | 13.5 | 290 |
| 10 | 1/1.13 | 1 | 0.6 | 1.2 | 17.7 | 500 |
| 15 | 1/1.13 | 1 | 0.6 | 1.3 | 20.6 | 670 |
| 20 | 1/1.13 | 1 | 0.6 | 1.5 | 23.8 | 950 |
| 30 | 1/1.13 | 1 | 0.6 | 1.5 | 28.4 | 1030 |
| 50 | 1/1.13 | 1 | 0.6 | 2 | 36.6 | 1750 |
| 1 | 7/0.53 | 1.5 | 0.6 | 0.8 | 7.5 | 100 |
| 2 | 7/0.53 | 1.5 | 0.6 | 0.9 | 9.3 | 150 |
| 5 | 7/0.53 | 1.5 | 0.6 | 1.2 | 15.6 | 360 |
| 10 | 7/0.53 | 1.5 | 0.6 | 1.3 | 20.9 | 690 |
| 15 | 7/0.53 | 1.5 | 0.6 | 1.5 | 24.6 | 880 |
| 20 | 7/0.53 | 1.5 | 0.6 | 1.5 | 27.8 | 1230 |
| 30 | 7/0.53 | 1.5 | 0.6 | 1.7 | 33.7 | 1560 |
| 50 | 7/0.53 | 1.5 | 0.6 | 2 | 43 | 2400 |
