BS5308 Cable Part 2 Type2 PVC-IS-OS-SWA-PVC

Application

BS5308 Cable Part 2 Type2 PVC-IS-OS-SWA-PVC are generally used when the risk of mechanical damage is

increased. The galvanised steel wire armour provides excellent protection. Generally used within industrial

process anufacturing plants for communication, data and voice transmission signals and services, Also used for

the interconnection of electrical equipment and instruments, typically in chemical or petrolchemical industry. The

armored versions are generally use for outdoor installation for direct burial or installed in the duct and suitable

for wet and damp areas.

Construction

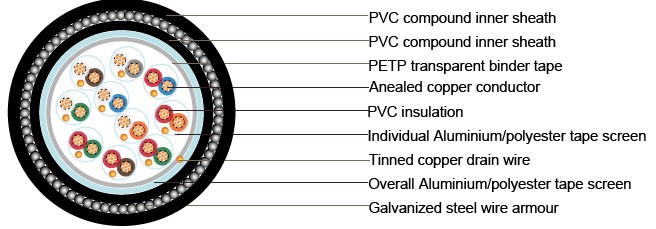

BS5308 Cable Part 2 Type2 PVC-IS-OS-SWA-PVC

Conductor:Annealed copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 1.5mm² multistranded(Class

2) to BS6360

Insulation :PVC (polyvinyl chloride),type TI1 to BS 6746

Pairing :Two insulated conductors uniformly twisted together with a lay not exceeding 100mm

Colour code:Multipair cables:See technical information

Individual screen :Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned

copper drain wire, 0.5mm²

Binder tape:PETP transparent tape

Collective screen :Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with

tinned copper drain wire, 0.5mm²

Inner Sheath:PVC (polyvinyl chloride), type TM 1 to BS 6746

Amour :Galvanized steel wire armour

Outer sheath :PVC Sheath, type TM 1 or type 6 to BS 6746

Sheath colour:Black or blue

Techanical and Electrical Properties

Operating temperature: -40˚C up to + 70˚C( fixed installation)

                                        0˚C to +50˚C(during operation )

Minimum bending radius:6 x overall diameter

Conductor Area Size mm2 0.5 0.75 1.5
Conductor Stranding No. x mm 16 x 0.2 24 x 0.2 7 x 0.53
Conductor resistance max ohm/km 39.7 26.5 12.3
Insulation resistance min Mohm/km 25 25 25
Max. Mutual Capacitance:pair or adjacent cores pF/m 250 250 250
Capacitance between any core or screen max. pF/m 400 400 400
Max. L/R Ratio for adjacentcores(Inductance/Resistance) μH/ohm 25 25 40
Test voltage Core to core V 1000 1000 1000
Core to screen V 1000 1000 1000
Rated voltage max V 300/500 300/500 300/500

Parameter

No.of pairs No.and Dia. of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath Nominal Dia. of Cable Approx.Weight
  no./mm mm2 mm mm mm mm mm mm kg/km
2 16/0.2 0.5 0.6 0.8 10.6 0.9 1.3 15 505
5 16/0.2 0.5 0.6 1.1 14.3 0.9 1.5 19.1 830
10 16/0.2 0.5 0.6 1.2 19.1 1.25 1.6 24.8 1420
15 16/0.2 0.5 0.6 1.3 22.2 1.6 1.7 28.8 1570
20 16/0.2 0.5 0.6 1.3 25.3 1.6 1.8 32.1 2040
30 16/0.2 0.5 0.6 1.5 30.6 1.6 1.9 37.6 2610
50 16/0.2 0.5 0.6 1.7 38.9 2 2.1 47.1 4270
2 24/0.2 0.75 0.6 0.8 11.5 0.9 1.4 16.1 545
No.of pairs No.and Dia. of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath Nominal Dia. of Cable Approx.Weight
  no./mm mm2 mm mm mm mm mm mm kg/km
5 24/0.2 0.75 0.6 1.2 15.7 1.25 1.5 21.2 1005
10 24/0.2 0.75 0.6 1.3 20.9 1.6 1.7 27.5 1400
15 24/0.2 0.75 0.6 1.3 24.2 1.6 1.8 31 1750
20 24/0.2 0.75 0.6 1.5 27.9 1.6 1.8 34.7 2300
30 24/0.2 0.75 0.6 1.7 33.8 2 2 41.8 2460
50 24/0.2 0.75 0.6 2 43.1 2.5 2.3 52.7 4800
2 7/0.53 1.5 0.6 0.9 13 0.9 1.4 17.6 800
5 7/0.53 1.5 0.6 1.2 17.5 1.25 1.6 23.2 1290
10 7/0.53 1.5 0.6 1.3 23.5 1.6 1.8 30.3 1990
15 7/0.53 1.5 0.6 1.5 27.6 1.6 1.9 34.6 2590
20 7/0.53 1.5 0.6 1.5 31.3 1.6 2 38.5 3310
30 7/0.53 1.5 0.6 1.7 38 2 2.1 46.2 4380
50 7/0.53 1.5 0.6 2 48.5 2.5 2.4 58.3 6260
