BS5308 Cable Part 2 Type2 PVC-OS-SWA-PVC

Application

BS5308 Cable Part 2 Type2 PVC-OS-SWA-PVC are generally used when the risk of mechanical damage is

increased. The galvanised steel wire armour provides excellent protection. Generally used within industrial

process anufacturing plants for communication, data and voice transmission signals and services, Also used for

the interconnection of electrical equipment and instruments, typically in chemical or petrolchemical industry. The

armored versions are generally use for outdoor installation for direct burial or installed in the duct and suitable

for wet and damp reas.

Construction

Conductor :Annealed copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 1.5mm² multistranded(Class

2) to BS6360

Insulation :PVC (polyvinyl chloride), type TI1 to BS 6746

Pairing :Two insulated conductors uniformly twisted together with a lay not exceeding 100mm

Colour code:Multicore cables: up to 40 cores yellow with black numbers, 41 -80 cores black with yellow numbers.

Multipair cables:See technical information

Binder tape:PETP transparent tape

Collective screen :Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with

tinned copper drain wire, 0.5mm²

Inner Sheath:PVC (polyvinyl chloride), type TM 1 to BS 6746

Amour :Galvanized steel wire armour

Outer sheath:PVC Sheath, type TM 1 or type 6 to BS 6746

Sheath colour:Black or blue

Mechanical and Electrical Properties

Operating temperature: -40˚C up to + 70˚C( fixed installation)

                                         0˚C to +50˚C(during operation )

Minimum bending radius:

6 x overall diameter

Conductor Area Size mm2 0.5 0.75 1.5
Conductor Stranding No. x mm 16 x 0.2 24 x 0.2 7 x 0.53
Conductor resistance max ohm/km 39.7 26.5 12.3
Insulation resistance min Mohm/km 25 25 25
Max. Mutual Capacitance:pair or adjacent cores pF/m 250 250 250
Capacitance between any core or screen max. pF/m 400 400 400
Max. L/R Ratio for adjacentcores(Inductance/Resistance) μH/ohm 25 25 40
Test voltage Core to core V 1000 1000 1000
Core to screen V 1000 1000 1000
Rated voltage max V 300/500 300/500 300/500
Parameter

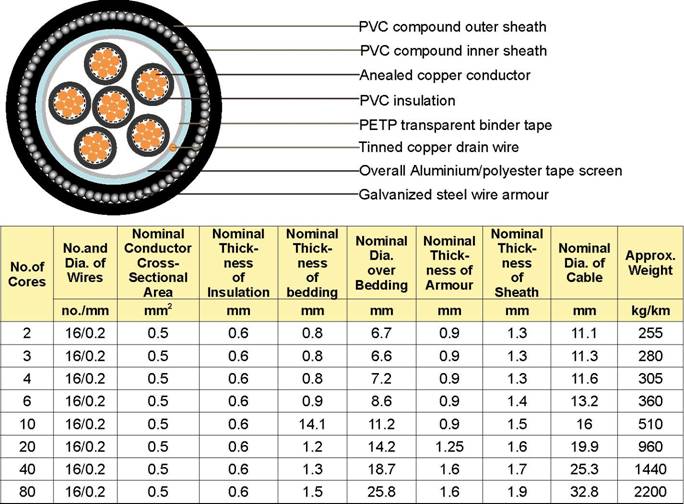

Multicore

BS5308 Cable Part 2 Type2 PVC-OS-SWA-PVC

No.of Cores No.and Dia. of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath Nominal Dia. of Cable Approx.Weight
  no./mm mm2 mm mm mm mm mm mm kg/km
2 24/0.2 0.75 0.6 0.8 7.2 0.9 1.3 11.2 280
3 24/0.2 0.75 0.6 0.8 7.2 0.9 1.3 11.6 305
4 24/0.2 0.75 0.6 0.8 7.8 0.9 1.3 12.4 335
6 24/0.2 0.75 0.6 0.9 9.4 0.9 1.4 14 400
10 24/0.2 0.75 0.6 1.1 12.2 0.9 1.5 17 565
20 24/0.2 0.75 0.6 1.2 15.6 1.25 1.6 21.3 950
40 24/0.2 0.75 0.6 1.3 20.6 1.6 1.7 27.4 1590
80 24/0.2 0.75 0.6 1.5 28.5 1.6 1.9 35.7 2450
2 7/0.53 1.5 0.6 0.8 8 0.9 1.4 12.6 330
3 7/0.53 1.5 0.6 0.9 8.2 0.9 1.4 12.8 380
4 7/0.53 1.5 0.6 0.9 9 0.9 1.4 13.6 420
6 7/0.53 1.5 0.6 1.1 11 0.9 1.4 15.6 540
10 7/0.53 1.5 0.6 1.2 14 1.25 1.6 19.7 750
20 7/0.53 1.5 0.6 1.3 17.9 1.6 1.7 24.5 1260
40 7/0.53 1.5 0.6 1.5 24 1.6 1.9 31 2140
80 7/0.53 1.5 0.6 1.7 32.9 2 2.1 41.1 3300

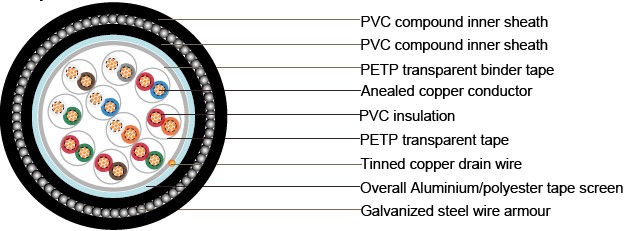

Multipair

BS5308 Cable Part 2 Type2 PVC-OS-SWA-PVC



No.of pairs No.and Dia. of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath Nominal Dia. of Cable Approx.Weight
  no./mm mm2 mm mm mm mm mm mm kg/km
1 16/0.2 0.5 0.6 0.8 6.2 0.9 1.3 10.6 260
2 16/0.2 0.5 0.6 0.8 7.1 0.9 1.3 11.5 305
5 16/0.2 0.5 0.6 1.1 12.4 0.9 1.5 17.2 610
10 16/0.2 0.5 0.6 1.2 16.5 1.25 1.6 22.2 1060
15 16/0.2 0.5 0.6 1.3 19.2 1.6 1.7 25.8 1330
20 16/0.2 0.5 0.6 1.3 21.7 1.6 1.8 28.5 1800
30 16/0.2 0.5 0.6 1.5 26.4 1.6 1.9 33.4 1980
50 16/0.2 0.5 0.6 1.7 33.4 2 2.1 41.6 3070
1 24/0.2 0.75 0.6 0.8 6.7 0.9 1.3 11.1 305
2 24/0.2 0.75 0.6 0.8 7.7 0.9 1.4 12.3 360
5 24/0.2 0.75 0.6 1.2 13.8 1.25 1.5 19.3 820
10 24/0.2 0.75 0.6 1.3 18.4 1.6 1.7 25 1250
15 24/0.2 0.75 0.6 1.3 21.1 1.6 1.8 27.9 1600
20 24/0.2 0.75 0.6 1.5 24.4 1.6 1.8 31.2 1800
30 24/0.2 0.75 0.6 1.7 29.6 2 2 37.6 2570
50 24/0.2 0.75 0.6 2 37.4 2.5 2.3 47.3 3800
1 7/0.53 1.5 0.6 0.8 7.5 0.9 1.4 12.1 360
2 7/0.53 1.5 0.6 0.9 8.8 0.9 1.4 13.4 460
5 7/0.53 1.5 0.6 1.2 15.6 1.25 1.6 21.3 1040
10 7/0.53 1.5 0.6 1.3 20.9 1.6 1.8 27.7 1610
15 7/0.53 1.5 0.6 1.5 24.6 1.6 1.9 31.6 2060
20 7/0.53 1.5 0.6 1.5 27.8 1.6 2 35 2630
30 7/0.53 1.5 0.6 1.7 33.7 2 2.1 41.9 3460
50 7/0.53 1.5 0.6 2 43 2.5 2.4 52.8 5520
