BS 5467 Cables



Five-core 600/1000 V cables with stranded copper conductors

Application

BS 5467 cables are used for power and control circuits, they can offer excellent protection through the use of a

heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for

direct burial in the ground.

Construction

Conductor :Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.

Insulation Colour Code :XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)

1 Core : Brown

2 Cores: Brown ,Blue

3 Cores: Brown, Black, Grey

4 Cores: Blue, Brown, Black, Grey

5 Cores: Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores: White Cores with black numbers

Bedding Armour Outer Sheath :

a)extruded layer of polymeric material,

b)or a taped bedding consist of two or more layers of PVC tape or other synthetic tape, for the cable having

conductor area of 16mm2 and above

Technical Information

Voltage rating 600/1000V

Temperature rating 0°C to +90°C

Bending radius 1.5mm² to 16mm²: 6 x overall diameter

                        25mm² and above: 8 x overall diameter

Flame retardant IEC60332 part 1, BS4066 part 1

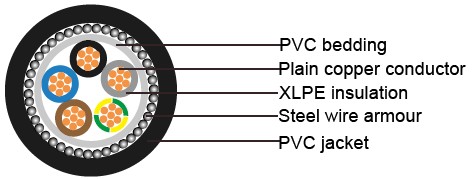

Five-core 600/1000 V cables with stranded copper conductors





Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal bedding
thickness 		Nominal Steel Wire Armor dia. Nominal Sheath thickness Approx. OverallDiameter Aprrox
Weight
Extruded bedding Taped bedding
mm² No./mm mm mm mm mm mm mm kg/km
5x1.5 7/0.53 0.6 0.8 0.9 1.4 14.3 - 430
5x2.5 7/0.67 0.7 0.8 0.9 1.4 16.1 - 545
5x4 7/0.85 0.7 0.8 0.9 1.5 17.8 - 680
5x6 7/1.04 0.7 0.8 1.25 1.5 20 - 840
5x10 7/1.35 0.7 0.8 1.25 1.6 22.9 - 1105
5x16 7/1.70 0.7 1 1.6 1.7 26.6 26.2 1450
5x25 7/2.14 0.9 1 1.6 1.8 31.5 31.1 2245
5x35 7/2.52 0.9 1 1.6 1.9 34.8 34.4 2840
5x50 19/1.78 1.0 1.2 2 2 40.4 39.6 3895
5x70 19/2.14 1.1 1.2 2 2.2 46.3 45.5 5145
