EEMUA 133 Lead covered armoured Power Cables to BS 5467, 600/1000V

Single-core 600/1000 V cables with lead sheath

Application

BS 5467 power and control cables are used for electricity supply in low voltage installation system. BS 5467

cables are well adapted to underground use in industrial applications, in moist areas, where hydrocarbon and

mechanical protections are needed and are protected against solvent penetration and corrosive attacks. The

lead cover brings an enhanced resistance to aromatic hydrocarbons.

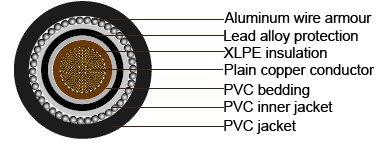

Construction

Conductor:Stranded copper conductor, Class 2 to BS 6460, IEC 60228.

Insulation Colour Code :XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)

1 Core: Brown

2 Cores: Brown , Blue

3 Cores: Brown, Black, Grey

4 Cores: Blue, Brown, Black, Grey

5 Cores: Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores: White Cores with black numerals

Inner Sheath Armour Outer Sheath :PVC (Polyvinyl Chloride) Single Core: AWA (Aluminum Wire Armour) Multi

Core: SWA (Steel Wire Armour) PVC(Polyvinyl Chloride)

Technical Information

Voltage rating 600/1000V

Temperature rating 0°C to +90°C

Bending radius 12 x overall diameter

Flame retardant IEC60332 part 1, BS4066 part 1

EEMUA 133 Lead covered armoured Power Cables to BS 5467, 600/1000V



Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal Lead sheath thickness Nominal Inner Sheath thickness Nominal Alum wire Armor dia. Nominal Outer Sheath thickness Approx.Overall Diameter Aprrox
Weight
mm² No./mm mm mm mm mm mm mm kg/km
1x50 19/1.78 1 1.2 0.8 1.37 1.5 20 1285
1x70 19/2.14 1.1 1.2 0.8 1.37 1.5 22 1605
1x95 19/2.52 1.1 1.2 0.8 1.37 1.6 24 1965
1x120 37/2.03 1.2 1.3 0.8 1.37 1.6 25.5 2365
1x150 37/2.25 1.4 1.3 1 1.37 1.7 28 2800
1x185 37/2.52 1.6 1.4 1 1.72 1.8 31 3490
1x240 61/2.25 1.7 1.5 1 1.72 1.8 34 4300
1x300 61/2.52 1.8 1.6 1 1.72 1.9 37 5203
1x400 61/2.85 2 1.7 1.2 2.14 2 42 6615
