BS 5467 Cables



Single-core 600/1000 V cables with circular stranded copper conductor

Application

BS 5467 cables are used for power and control circuits,BS 5467 cables can offer excellent protection through the

use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside

buildings or for direct burial in the ground.

Construction

Conductor :Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.

Insulation Colour Code :XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)

1 Core : Brown

2 Cores: Brown , Blue

3 Cores: Brown, Black, Grey

4 Cores: Blue, Brown, Black, Grey

5 Cores: Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores: White Cores with black numbers

Bedding Armour Outer Sheath :extruded layer of polymeric material

Technical Information

Voltage rating 600/1000V

Temperature rating 0°C to +90°C

Bending radius 1.5mm² to 16mm²: 6 x overall diameter

                        25mm² and above: 8 x overall diameter

Flame retardant IEC60332 part 1, BS4066 part 1

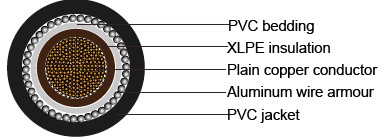

Single-core 600/1000 V cables with circular stranded copper conductor



Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal beddingthickness Nominal Alum Wire dia. Nominal Sheath thickness Approx.Overall Diameter AprroxWeight
mm² No./mm mm mm mm mm mm kg/km
1x50 19/1.78 1.0 0.8 0.9 1.5 17.5 800
1x70 19/2.14 1.1 0.8 1.25 1.5 20.2 990
1x95 19/2.52 1.1 0.8 1.25 1.6 22.3 1280
1x120 37/2.03 1.2 0.8 1.25 1.6 24.2 1550
1x150 37/2.25 1.4 1 1.6 1.7 27.4 1900
1x185 37/2.52 1.6 1 1.6 1.8 30.0 2320
1x240 61/2.25 1.7 1 1.6 1.8 32.8 2930
1x300 61/2.52 1.8 1 1.6 1.9 35.6 3580
1x400 61/2.85 2.0 1.2 2.0 2.0 40.5 4600
1x500 61/3.20 2.2 1.2 2.0 2.1 44.2 5680
1x630 127/2.52 2.4 1.2 2.0 2.2 48.8 7160
1x800 127/2.85 2.6 1.4 2.5 2.4 55.4 9315
1x1000 127/3.20 2.8 1.4 2.5 2.5 60.6 11490
