EMMU 133 Lead covered armoured Power Cables to BS 5467, 1900/3300V
Three-core 1900/3300 V cables with lead sheath
Application
BS 5467 power and control cables are well adapted to underground use in industrial applications, in moist
areas, where hydrocarbon and mechanical protections are needed and are protected against solvent
penetration and corrosive attacks. The lead cover brings an enhanced resistance to aromatic hydrocarbons.

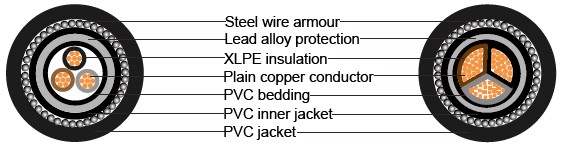

Construction
Conductor Stranded copper conductor, Class 2 to BS 6460, IEC 60228.
Insulation XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6) Colour Code
1 Core: Brown
2 Cores: Brown or Blue
3 Cores: Brown, Black, Grey
4 Cores: Blue, Brown, Black, Grey
5 Cores: Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores: White Cores with black numerals
Bedding PVC (Polyvinyl Chloride)
Protection LC (Lead alloy 'E') sheathed
Inner Sheath PVC (Polyvinyl Chloride)
Armour Multi Core: SWA (Steel Wire Armour)
Outer Sheath PVC(Polyvinyl Chloride)
Technical Information
Voltage rating 1900/3300V
Temperature rating 0°C to +90°C
Bending radius 12 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1
| Nominal Cross-sectional Area | Strand Type | Nominal Insulation thickness | Nominal Lead sheath thickness | Nominal Inner Sheath thickness | Nominal Steel Wire Armor dia. | Nominal Outer Sheath thickness | Approx.Overall Diameter | Aprrox Weight |
| mm² | No./mm | mm | mm | mm | mm | mm | mm | kg/km |
| 3x16 | 7/1.70 | 2 | 1.3 | 1 | 1.6 | 1.8 | 31.8 | 2750 |
| 3x25 | 7/2.14 | 2 | 1.4 | 1 | 1.6 | 1.8 | 34.9 | 3412 |
| 3x35 | 7/2.52 | 2 | 1.5 | 1 | 1.6 | 1.9 | 37.6 | 4045 |
| 3x50* | 19/1.78 | 2 | 1.5 | 1.2 | 2 | 2 | 40.2 | 4822 |
| 3x70* | 19/2.14 | 2 | 1.5 | 1.2 | 2 | 2.1 | 41.7 | 5560 |
| 3x95* | 19/2.52 | 2 | 1.6 | 1.2 | 2 | 2.2 | 43.5 | 6582 |
| 3x120* | 37/2.03 | 2 | 1.7 | 1.4 | 2.5 | 2.3 | 50.4 | 8440 |
| 3x150* | 37/2.25 | 2 | 1.8 | 1.4 | 2.5 | 2.4 | 52.7 | 9540 |
| 3x185* | 37/2.52 | 2 | 1.9 | 1.4 | 2.5 | 2.5 | 56.6 | 11272 |
| 3x240* | 61/2.25 | 2 | 2 | 1.6 | 2.5 | 2.6 | 62.3 | 13819 |
| 3x300* | 61/2.52 | 2 | 2.2 | 1.6 | 2.5 | 2.7 | 66.9 | 16456 |
| 3x400* | 61/2.85 | 2 | 2.3 | 1.6 | 2.5 | 2.9 | 71.4 | 20900 |
