BS 5467 Armoured Power Cables, 600/1000V

Two-core 600/1000 V cables with stranded copper conductors

Application

BS 5467 cables are used for power and control circuits,BS 5467 cables can offer excellent protection through the

use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside

buildings or for direct burial in the ground.

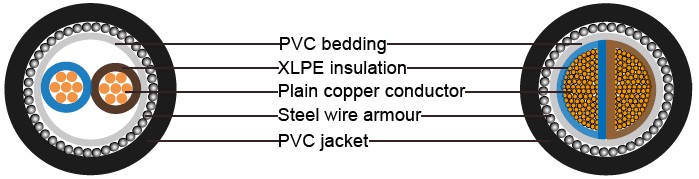

Construction

Conductor :Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.

Insulation Colour Code :XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)

1 Core : Brown

2 Cores: Brown , Blue

3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey

5 Cores: Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores: White Cores with black numbers

Bedding Armour Outer Sheath :

a)extruded layer of polymeric material,

b)or a taped bedding consist of two or more layers of PVC tape or other synthetic tape, for the cable having

conductor area of 16mm2 and above.

Technical Information

Voltage rating 600/1000V

Temperature rating 0°C to +90°C

Bending radius 1.5mm² to 16mm²: 6 x overall diameter

                        25mm² and above: 8 x overall diameter

Flame retardant IEC60332 part 1, BS4066 part 1

BS 5467 Armoured Power Cables, 600/1000V



Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal beddingthickness Nominal Steel Wire Armor dia. Nominal Sheath thickness Approx. OverallDiameter AprroxWeight
Extruded bedding Taped bedding
mm² No./mm mm mm mm mm mm mm kg/km
2x1.5 7/0.53 0.6 0.8 0.9 1.4 12.1 - 320
2x2.5 7/0.67 0.7 0.8 0.9 1.4 13.6 - 365
2x4 7/0.85 0.7 0.8 0.9 1.4 14.7 - 440
2x6 7/1.04 0.7 0.8 0.9 1.4 15.9 - 470
2x10 7/1.35 0.7 0.8 0.9 1.5 18.0 - 800
2x16 7/1.70 0.7 0.8 1.25 1.5 20.4 20.4 900
2x25 7/2.14 0.9 0.8 1.25 1.6 24.1 24.1 1240
2x25* 7/2.14 0.9 0.8 1.25 1.6 20.4 20.4 1240
2x35 7/2.52 0.9 1 1.6 1.7 27.7 27.3 1710
2x35* 7/2.52 0.9 1 1.6 1.7 23.3 22.9 1710

Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal beddingthickness Nominal Steel Wire Armor dia. Nominal Sheath thickness Approx. OverallDiameter AprroxWeight
Extruded bedding Tapedbedding
mm² No./mm mm mm mm mm mm mm kg/km
2x50* 19/1.78 1.0 1 1.6 1.8 25.8 25.4 1800
2x70* 19/2.14 1.1 1 1.6 1.9 29.0 28.6 2320
2x95* 19/2.52 1.1 1.2 2.0 2.0 33.1 32.3 3150
2x120* 37/2.03 1.2 1.2 2.0 2.1 36.1 35.3 3880
2x150* 37/2.25 1.4 1.2 2.0 2.2 39.3 38.5 4820
2x185* 37/2.52 1.6 1.4 2.5 2.4 44.7 43.5 5920
2x240* 61/2.25 1.7 1.4 2.5 2.5 49.0 47.8 7300
2x300* 61/2.52 1.8 1.6 2.5 2.6 53.5 51.9 8770
2x400* 61/2.85 2 1.6 2.5 2.8 59.0 57.4 10905
