EEMUA 133 Lead covered armoured Power Cables to BS 5467, 600/1000V
Three-core 600/1000 V cables with lead sheath
Application
BS 5467 power and control cables are used for electricity supply in low voltage installation system. BS 5467
cable are well adapted to underground use in industrial applications, in moist areas, where hydrocarbon and
mechanical protections are needed and are protected against solvent penetration and corrosive attacks. The
lead cover brings an enhanced resistance to aromatic hydrocarbons.

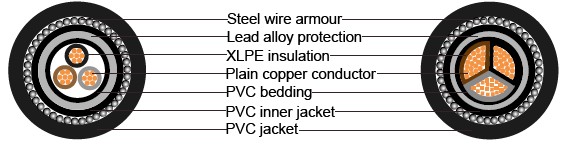

Construction
Conductor :Stranded copper conductor, Class 2 to BS 6460, IEC 60228.
Insulation Colour Code :XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
3 Cores: Brown, Black, Grey
Bedding Protection :PVC (Polyvinyl Chloride) LC (Lead alloy 'E') sheathed
Inner Sheath Armour Outer Sheath :PVC (Polyvinyl Chloride) Single Core: AWA (Aluminum Wire Armour) Multi
Core: SWA (Steel Wire Armour) PVC(Polyvinyl Chloride)
Technical Information
Voltage rating 600/1000V
Temperature rating 0°C to +90°C
Bending radius 12 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1
| Nominal Cross-sectional Area | Strand Type | Nominal Insulation thickness | Nominal Lead sheath thickness | Nominal Inner Sheath thickness | Nominal Steel Wire Armor dia. | Nominal Outer Sheath thickness | Approx.Overall Diameter | Aprrox Weight |
| mm² | No./mm | mm | mm | mm | mm | mm | mm | kg/km |
| 3x1.5 | 7/0.53 | 0.7 | 1.2 | 0.8 | 0.9 | 1.3 | 17 | 945 |
| 3x2.5 | 7/0.67 | 0.7 | 1.2 | 0.8 | 1.25 | 1.4 | 19 | 1160 |
| 3x4 | 7/0.85 | 0.7 | 1.2 | 0.8 | 1.25 | 1.4 | 20.5 | 1325 |
| 3x6 | 7/1.04 | 0.7 | 1.2 | 0.8 | 1.25 | 1.4 | 21.5 | 1490 |
| 3x10 | 7/1.35 | 0.7 | 1.2 | 0.8 | 1.25 | 1.5 | 23 | 1750 |
| 3x16 | 7/1.70 | 0.7 | 1.2 | 0.8 | 1.6 | 1.6 | 26.5 | 2150 |
| 3x25 | 7/2.14 | 0.9 | 1.3 | 1 | 1.6 | 1.7 | 31 | 3175 |
| 3x35 | 7/2.52 | 0.9 | 1.3 | 1 | 1.6 | 1.8 | 33 | 3500 |
| 3x50* | 19/1.78 | 1 | 1.4 | 1 | 1.6 | 1.8 | 33.5 | 3905 |
| 3x70* | 19/2.14 | 1.1 | 1.5 | 1 | 2 | 1.9 | 37.5 | 5195 |
| 3x95* | 19/2.52 | 1.1 | 1.5 | 1.2 | 2 | 2.1 | 41.5 | 6365 |
| 3x120* | 37/2.03 | 1.2 | 1.6 | 1.2 | 2.5 | 2.2 | 45.5 | 7935 |
| 3x150* | 37/2.25 | 1.4 | 1.8 | 1.4 | 2.5 | 2.3 | 50.5 | 9645 |
| 3x185* | 37/2.52 | 1.6 | 1.9 | 1.4 | 3.15 | 2.4 | 56.5 | 12195 |
| 3x240* | 61/2.25 | 1.7 | 2 | 1.4 | 3.15 | 2.6 | 62 | 14765 |
| 3x300* | 61/2.52 | 1.8 | 2.2 | 1.6 | 3.5 | 2.7 | 68.5 | 18300 |
