BS 6346 Cables
BS 6346 PVC Insulated Cables,1900/3300V
Single-core 1900/3300 V cables with circular stranded copper conductor
Application
BS 6346 cables are used for power and control circuits, BS 6346 cables can offer excellent protection through
the use of a heavy galvanized steel wire armour, so they are well adapted to underground use in industrial
applications, in moist areas.

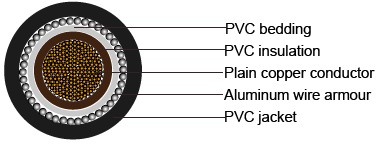

Construction
Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
Insulation PVC(Polyvinyl Chloride) type TI1
| Colour Code | 1 Core : | Brown |
| 2 Cores: | Brown , Blue | |
| 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green-yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers | ||
| Filler(optional) Binder Tape(optional) Inner Sheath/ Bedding Armour Outer Sheath | PVC or Polypropylene yarn Polyester (Mylar) tape PVC (Polyvinyl Chloride) Single Core: AWA (Aluminum WireArmour) Multi Core: SWA (Steel Wire or Tape Armour) PVC(Polyvinyl Chloride), type TM1 | |
Technical Information
Voltage rating 1900/3300V
Temperature rating -20°C to +60°C
Bending radius Single core: 10 x overall diameter
Multicores: 8 x overall diameter
Flame retardant IEC60332 part 1, BS4066 part 1
Single-core 1900/3300 V cables with circular stranded copper conductor
| Nominal cross-sectional area | Number/wire | Nominal insulation thickness | Nominal bedding thickness |
Nominal alum wire armor dia. | Nominal sheath thickness | Approx.overall diameter | Approx.cable weight |
| mm² | No./mm | mm | mm | mm | mm | mm | kg/mm |
| 1x50 | 19/1.78 | 2.2 | 0.8 | 1.25 | 1.6 | 21.0 | 840 |
| 1x70 | 19/2.14 | 2.2 | 0.8 | 1.25 | 1.6 | 22.8 | 1070 |
| 1x95 | 19/2.52 | 2.2 | 1.0 | 1.6 | 1.7 | 26.0 | 1445 |
| 1x120 | 37/2.03 | 2.2 | 1.0 | 1.6 | 1.7 | 27.7 | 1715 |
| 1x150 | 37/2.25 | 2.2 | 1.0 | 1.6 | 1.8 | 29.4 | 2010 |
| 1x185 | 37/2.52 | 2.2 | 1.0 | 1.6 | 1.8 | 31.3 | 2380 |
| 1x240 | 61/2.25 | 2.2 | 1.0 | 1.6 | 1.9 | 34.1 | 2975 |
| 1x300 | 61/2.52 | 2.4 | 1.0 | 1.6 | 1.9 | 37.0 | 3615 |
| 1x400 | 61/2.85 | 2.6 | 1.2 | 2.0 | 2.1 | 42.0 | 4655 |
| 1x500 | 61/3.20 | 2.8 | 1.2 | 2.0 | 2.1 | 45.6 | 5725 |
| 1x630 | 61/3.65 | 2.8 | 1.2 | 2.0 | 2.2 | 49.7 | 7150 |
| 1x800 | 127/2.85 | 2.8 | 1.4 | 2.5 | 2.4 | 55.8 | 9160 |
| 1x1000 | 127/3.20 | 3.0 | 1.4 | 2.5 | 2.5 | 61.0 | 11400 |
