BS 6724 Armoured Power Cables, 600/1000V

Five-core 600/1000 V cables with stranded copper conductors



Application

BS 6724 cables are used for power and control circuits,BS 6724 cables can offer excellent protection through the

use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside

buildings or for direct burial in the ground. For installation where fire, smoke emission and toxic fumes

create a potential threat to life and equipment.

Construction

Conductor :Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.

Insulation :XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)

Colour Code :

1 Core : Brown

2 Cores: Brown , Blue

3 Cores: Brown, Black, Grey

4 Cores: Blue, Brown, Black, Grey

5 Cores: Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores: White Cores with black numbers

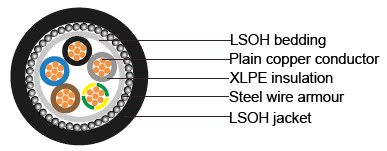

Bedding :LSOH (Low Smoke Zero Halogen)

Armour :

Single Core: AWA (Aluminum Wire Armour)

Multi Core: SWA (Steel Wire Armour)

Outer Sheath :LSOH (Low Smoke Zero Halogen)

Technical Information

Voltage rating 600/1000V

Temperature rating 0°C to +90°C

Bending radius 1.5mm² to 16mm²: 6 x overall diameter

                          25mm² and above: 8 x overall diameter

Flame retardant IEC60332 part 1, BS4066 part 1

Halogen free IEC 60754, EN 50267

Smoke density IEC 61034, EN50268

Five-core 600/1000 V cables with stranded copper conductors

BS 6724 Armoured Power Cables, 600/1000V

Nominal Cross-sectional Area Strand Type Nominal Insulation Thickness Nominal BeddingThickness Nominal Steel Wire Armor dia. Nominal Sheath Thickness Approx.Overall Diameter AprroxWeight
mm² No./mm mm mm mm mm mm kg/km
5x1.5 7/0.53 0.6 0.8 0.9 1.4 14.3 430
5x2.5 7/0.67 0.7 0.8 0.9 1.4 16.1 545
5x4 7/0.85 0.7 0.8 0.9 1.5 17.8 680
5x6 7/1.04 0.7 0.8 1.25 1.5 20 840
5x10 7/1.35 0.7 0.8 1.25 1.6 22.9 1105
5x16 7/1.70 0.7 1 1.6 1.7 26.6 1450
5x25 7/2.14 0.9 1 1.6 1.8 31.5 2245
5x35 7/2.52 0.9 1 1.6 1.9 34.8 2840
5x50 19/1.78 1.0 1.2 2 2 40.4 3895
5x70 19/2.14 1.1 1.2 2 2.2 46.3 5145
