BS 6724 Armoured Power Cables, 600/1000V

Four-core 600/1000 V cables with solid aluminum conductors



Application

BS 6724 cables are used for power and control circuits,BS 6724 cables can offer excellent protection through the

use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside

buildings or for direct burial in the ground. For installation where fire, smoke emission and toxic fumes create a

potential threat to life and equipment.

Construction

Conductor :Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.

Insulation :XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)

Colour Code :

1 Core : Brown

2 Cores: Brown ,Blue

3 Cores: Brown, Black, Grey

4 Cores: Blue, Brown, Black, Grey

5 Cores: Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores: White Cores with black numbers

Bedding :LSOH (Low Smoke Zero Halogen)

Armour :

Single Core: AWA (Aluminum Wire Armour)

Multi Core: SWA (Steel Wire Armour)

Outer Sheath :LSOH (Low Smoke Zero Halogen)

Technical Information

Voltage rating 600/1000V

Temperature rating 0°C to +90°C

Bending radius

1.5mm² to 16mm²: 6 x overall diameter

25mm² and above: 8 x overall diameter

Flame retardant IEC60332 part 1, BS4066 part 1

Halogen free IEC 60754, EN 50267

Smoke density IEC 61034, EN50268

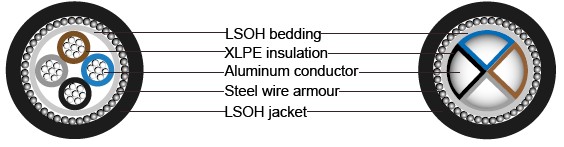

Four-core 600/1000 V cables with solid aluminum conductors

BS 6724 Armoured Power Cables, 600/1000V

Nominal Cross-sectional Area Nominal Insulation Thickness Nominal BeddingThickness Nominal Steel Wire Armor dia. Nominal Sheath Thickness Approx.Overall Diameter AprroxWeight
mm² mm mm mm mm mm kg/km
4x16 0.7 0.8 1.25 1.6 21.8 980
4x25 0.9 1 1.6 1.7 26.9 1220
4x25* 0.9 1 1.6 1.7 24.6 1220
4x35 0.9 1 1.6 1.8 29.5 1420
4x35* 0.9 1 1.6 1.8 27 1420
4x50* 1.0 1 1.6 1.9 30 1770
4x70* 1.1 1.2 2.0 2.1 35.3 2500
4x95* 1.1 1.2 2.0 2.2 39 2980
4x120* 1.2 1.4 2.5 2.3 44 3950
4x150* 1.4 1.4 2.5 2.4 47.9 4600
4x185* 1.6 1.4 2.5 2.6 52.7 5430
4x240* 1.7 1.6 2.5 2.7 58.5 6660
4x300* 1.8 1.6 2.5 2.9 63.8 7770
