BS6724 Cables


BS 6724 Cables



BS 6724 Armoured Power Cables, 600/1000V

Three-core 600/1000 V cables with solid aluminum conductors

Application

BS 6724 cables are used for power and control circuits, BS 6724 cables can offer excellent protection through

the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside

buildings or for direct burial in the ground. For installation where fire, smoke emission and toxic fumes create a

potential threat to life and equipment.

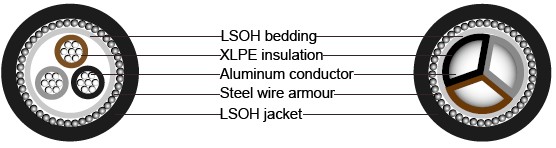

Construction

Conductor :Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.

Insulation :XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)

Colour Code :

1 Core : Brown

2 Cores: Brown , Blue

3 Cores: Brown, Black, Grey

4 Cores: Blue, Brown, Black, Grey

5 Cores: Green/Yellow, Blue, Brown, Black, Grey

Above 5 Cores: White Cores with black numbers

Bedding :LSOH (Low Smoke Zero Halogen)

Armour :

Single Core: AWA (Aluminum Wire Armour)

Multi Core: SWA (Steel Wire Armour)

Outer Sheath :LSOH (Low Smoke Zero Halogen)

Technical Information

Voltage rating 600/1000V

Temperature rating 0°C to +90°C

Bending radius 1.5mm² to 16mm²: 6 x overall diameter

                          25mm² and above: 8 x overall diameter

Flame retardant IEC60332 part 1, BS4066 part 1

Halogen free IEC 60754, EN 50267

Smoke density IEC 61034, EN50268

Three-core 600/1000 V cables with solid aluminum conductors

BS 6724 Armoured Power Cables, 600/1000V

Nominal Cross-sectional Area Nominal Insulation Thickness Nominal BeddingThickness Nominal Steel Wire Armor dia. Nominal Sheath Thickness Approx.Overall Diameter AprroxWeight
mm² mm mm mm mm mm kg/km
3x16 0.7 0.8 1.25 1.6 20.3 760
3x25 0.9 1 1.6 1.7 22.5 1020
3x25* 0.9 1 1.6 1.7 24.9 1020
3x35 0.9 1 1.6 1.8 24.4 1200
3x35* 0.9 1 1.6 1.8 27.3 1200
3x50* 1.0 1 1.6 1.8 26.8 1380
3x70* 1.1 1 1.6 1.9 30.2 1750
3x95* 1.1 1.2 2.0 2.1 34.8 2420
3x120* 1.2 1.2 2.0 2.2 37.8 2820
3x150* 1.4 1.4 2.5 2.3 42.7 3660
3x185* 1.6 1.4 2.5 2.4 46.7 4350
3x240* 1.7 1.4 2.5 2.6 51.5 5220
3x300* 1.8 1.6 2.5 2.7 56.2 6200
