BS 8573 Cables
Single Core 600/1000V XLPE Insulation, LSZH Sheath Cables to BS 8573
Application
BS 8573 XLPE insulated and LSZH sheathed cables are generally used for fixed installation. Suitable for building
wiring, especially in areas where smoke and fume emissions may cause a potential threat to life but not for
burial in the ground, either directly or in ducts.
Standard
Basic design to BS 8573:2012
Fire Performance
| Flame Retardance (Single Vertical Wire Test) | BS EN 60332-1-2:2004 |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | BS EN 60332-3-24:2009 (cat. C) |
| Halogen Free | BS EN 50267-2-1 |
| Minimum Smoke Emission | BS EN 61034-2 |
| Spark Test | BS EN 62230 |
Voltage Rating
600/1000V

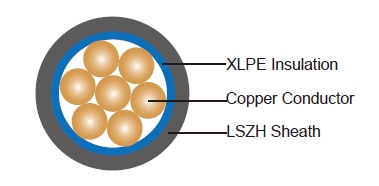

Construction
Conductor: Annealed copper conductor, strand according to BS EN 60228 class 2.
Insulation: Thermosetting insulation XLPE Type GP8 according to BS 7655-1.3, XLPE Type GP6 according to BS
7655-1.2, or XLPE Type EI5 according to BS EN 50363-5.
Inner Covering option: The laid up cores may be coverd by an optional extrued inner covering or separating
tape. It shall be possible to separate the cores easily.
outer Sheath: Thermoplastic LSZH type LTS 4 according to BS 7655-6.1.
outer Sheath option: UV resistance, hydrocarbon resistance, oil resistance, anti rodent and antitermite
properties can be offered as option.
Color Code
Insulation Colour: Brown or blue
Sheath Colour: Black, other colours can be offered upon request.
Physical And Thermal Properties
Maximum temperature range during operation (XLPE): 90°C
Maximum short circuit temperature (5 Seconds): 250°C
Minimum bending radius:
Circular copper conductors(up to 25mm²): 4 x Overall Diameter
Circular copper conductors(above 25mm²): 6 x Overall Diameter
Shaped copper conductors: 8 x Overall Diameter
Construction Parameters
| Conductor | Nominal Insulation Thickness | Nominal Inner Covering Thickness |
Nominal Sheath Thickness | |
| No. of CoresxCross Section |
Class of Conductor | |||
| No.xmm² | mm | mm | mm | |
| 1x1.5 | 2 | 0.7 | 0.4 | 1.4 |
| 1x2.5 | 2 | 0.7 | 0.4 | 1.4 |
| 1x4.0 | 2 | 0.7 | 0.4 | 1.4 |
| 1x6.0 | 2 | 0.7 | 0.4 | 1.4 |
| 1x10 | 2 | 0.7 | 0.4 | 1.4 |
| 1x16 | 2 | 0.7 | 0.4 | 1.4 |
| 1x25 | 2 | 0.9 | 0.4 | 1.4 |
| 1x35 | 2 | 0.9 | 0.4 | 1.4 |
| 1x50 | 2 | 1.0 | 0.6 | 1.4 |
| 1x70 | 2 | 1.1 | 0.6 | 1.4 |
| 1x95 | 2 | 1.1 | 0.6 | 1.5 |
| 1x120 | 2 | 1.2 | 0.8 | 1.5 |
| 1x150 | 2 | 1.4 | 0.8 | 1.6 |
| 1x185 | 2 | 1.6 | 0.8 | 1.6 |
| 1x240 | 2 | 1.7 | 1.0 | 1.7 |
| 1x300 | 2 | 1.8 | 1.0 | 1.8 |
| 1x400 | 2 | 2.0 | 1.2 | 1.9 |
| 1x500 | 2 | 2.2 | 1.2 | 2.0 |
| 1x630 | 2 | 2.4 | 1.4 | 2.2 |
| 1x800 | 2 | 2.6 | 1.6 | 2.3 |
| 1x1000 | 2 | 2.8 | 1.6 | 2.4 |
