EN50288-7 Cables |  |
|
|
|||
| XLPE Insulated, LSZH Sheathed Instrumentation Cables |
EN 50288-7 Cables
APPLICATION
EN 50288-7 LSZH sheathed cables are generally use for indoor installation and suitable for wet and damp areas.
The galvanized steel wire armour provides excellent protection. Generally,EN 50288-7 cables are used within
industrial process manufacturing plants for communication, data and voice transmission signals and services.
Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic
smoke and fume emission.
STANDARDS
Basic design to EN 50288-7
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation(Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
| Sunlight Resistance | UL 1581 section 1200 |
| Oil Resistance | ICEA S-73-532** |
Note: Asterisk * denotes superseded standard, **Test temperature +60°C, duration 4h. Retention: min 60% of tensite strength/min.60% of elongation.
VOLTAGE RATING
500V

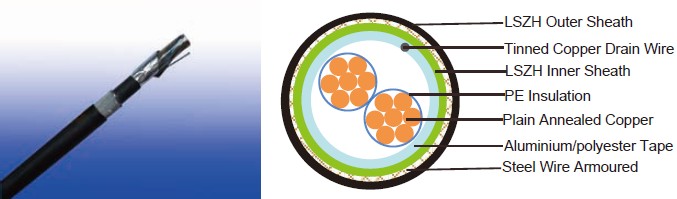

CABLE CONSTRUCTION
Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PE compound, EN 50290. 2-23.
Overall Screen: Aluminium/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire.
Inner Sheath: LSZH compound
Armouring: Galvanised steel wire
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound typeSW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.
COLOUR CODE
Insulation: Black numbered
Outer Sheath: Black, blue for intrinsically safe systems
Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 10 X Overall Diameter
Electrical PROPERTIES
| Conductor Area Size | mm² | 0.5 | 0.75 | 1.0 | 1.3 | 1.5 | 2.5 | |
| Insulation thickness (nominal) | mm | 0.55 | 0.55 | 0.55 | 0.6 | 0.6 | 0.7 | |
| Conductor resistance (20°C) | Ω/km | 36.0 | 24.5 | 18.1 | 13.9 | 12.1 | 7.4 | |
| Insulation resistance (20°C) | MΩ.km(Min.) | 5000 | 5000 | 5000 | 5000 | 5000 | 2000 | |
| Mutual Capacitance (1 kHz) | pF/m(Max.) | 115 | 115 | 115 | 115 | 115 | 2000 | |
| Inductance | mH/km(Max.) | 1 | 1 | 1 | 1 | 1 | 1 | |
| L / R (ratio) (max.) | μH/Ω | 25 | 25 | 25 | 40 | 40 | 10 | |
| Operating voltage | V | 500 | ||||||
| Test Voltage Urms | Core to Core | V | 2000 | |||||
| Core to Screen | V | 2000 | ||||||
Caledonian Cable Code |
RE-2Y(St)HSWAH |
|||||
No. of Cores x1xCross Section |
Nominal Insulation Thick-ness |
Nominal Inner Sheath Thick-ness |
Nominal |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick-ness |
|
|
No.x1xmm2 |
mm |
mm |
mm |
mm |
mm |
0.5mm2, Multicore |
||||||
RE-2Y(St)HSWAH 2C0.5 |
2x1x0.5 |
0.55 |
0.9 |
6.2 |
0.9 |
1.3 |
RE-2Y(St)HSWAH 3C0.5 |
3x1x0.5 |
0.55 |
0.9 |
6.5 |
0.9 |
1.3 |
RE-2Y(St)HSWAH 4C0.5 |
4x1x0.5 |
0.55 |
0.9 |
7.0 |
0.9 |
1.3 |
RE-2Y(St)HSWAH 5C0.5 |
5x1x0.5 |
0.55 |
0.9 |
7.6 |
0.9 |
1.3 |
RE-2Y(St)HSWAH 8C0.5 |
8x1x0.5 |
0.55 |
1.0 |
9.1 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 10C0.5 |
10x1x0.5 |
0.55 |
1.0 |
10.4 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 12C0.5 |
12x1x0.5 |
0.55 |
1.0 |
10.7 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 14C0.5 |
14x1x0.5 |
0.55 |
1.0 |
11.3 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 16C0.5 |
16x1x0.5 |
0.55 |
1.1 |
11.8 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 20C0.5 |
20x1x0.5 |
0.55 |
1.1 |
13.3 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 24C0.5 |
24x1x0.5 |
0.55 |
1.1 |
14.7 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 27C0.5 |
27x1x0.5 |
0.55 |
1.2 |
15.0 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 30C0.5 |
30x1x0.5 |
0.55 |
1.2 |
15.7 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 37C0.5 |
37x1x0.5 |
0.55 |
1.2 |
16.9 |
0.9 |
1.6 |
RE-2Y(St)HSWAH 40C0.5 |
40x1x0.5 |
0.55 |
1.2 |
17.6 |
1.25 |
1.6 |
0.75mm2, Multicore |
||||||
RE-2Y(St)HSWAH 2C0.75 |
2x1x0.75 |
0.55 |
0.9 |
6.5 |
0.9 |
1.3 |
RE-2Y(St)HSWAH 3C0.75 |
3x1x0.75 |
0.55 |
0.9 |
6.9 |
0.9 |
1.3 |
RE-2Y(St)HSWAH 4C0.75 |
4x1x0.75 |
0.55 |
0.9 |
7.4 |
0.9 |
1.3 |
RE-2Y(St)HSWAH 5C0.75 |
5x1x0.75 |
0.55 |
0.9 |
8.1 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 8C0.75 |
8x1x0.75 |
0.55 |
1.0 |
9.7 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 10C0.75 |
10x1x0.75 |
0.55 |
1.0 |
11.1 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 12C0.75 |
12x1x0.75 |
0.55 |
1.0 |
11.5 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 14C0.75 |
14x1x0.75 |
0.55 |
1.1 |
12.2 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 16C0.75 |
16x1x0.75 |
0.55 |
1.1 |
12.9 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 20C0.75 |
20x1x0.75 |
0.55 |
1.1 |
14.3 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 24C0.75 |
24x1x0.75 |
0.55 |
1.2 |
16.0 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 27C0.75 |
27x1x0.75 |
0.55 |
1.2 |
16.3 |
0.9 |
1.6 |
RE-2Y(St)HSWAH 30C0.75 |
30x1x0.75 |
0.55 |
1.2 |
16.9 |
0.9 |
1.6 |
RE-2Y(St)HSWAH 37C0.75 |
37x1x0.75 |
0.55 |
1.2 |
18.2 |
1.25 |
1.6 |
RE-2Y(St)HSWAH 40C0.75 |
40x1x0.75 |
0.55 |
1.3 |
19.1 |
1.25 |
1.6 |
1.0mm2, Multicore |
||||||
RE-2Y(St)HSWAH 2C1.0 |
2x1x1.0 |
0.55 |
0.9 |
6.9 |
0.9 |
1.3 |
RE-2Y(St)HSWAH 3C1.0 |
3x1x1.0 |
0.55 |
0.9 |
7.3 |
0.9 |
1.3 |
RE-2Y(St)HSWAH 4C1.0 |
4x1x1.0 |
0.55 |
0.9 |
7.9 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 5C1.0 |
5x1x1.0 |
0.55 |
0.9 |
8.6 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 8C1.0 |
8x1x1.0 |
0.55 |
1.0 |
10.3 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 10C1.0 |
10x1x1.0 |
0.55 |
1.0 |
11.9 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 12C1.0 |
12x1x1.0 |
0.55 |
1.0 |
12.2 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 14C1.0 |
14x1x1.0 |
0.55 |
1.1 |
13.0 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 16C1.0 |
16x1x1.0 |
0.55 |
1.1 |
13.7 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 20C1.0 |
20x1x1.0 |
0.55 |
1.1 |
15.2 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 24C1.0 |
24x1x1.0 |
0.55 |
1.2 |
17.0 |
0.9 |
1.6 |
RE-2Y(St)HSWAH 27C1.0 |
27x1x1.0 |
0.55 |
1.2 |
17.4 |
1.25 |
1.6 |
RE-2Y(St)HSWAH 30C1.0 |
30x1x1.0 |
0.55 |
1.2 |
18.0 |
1.25 |
1.6 |
RE-2Y(St)HSWAH 37C1.0 |
37x1x1.0 |
0.55 |
1.2 |
19.6 |
1.25 |
1.6 |
RE-2Y(St)HSWAH 40C1.0 |
40x1x1.0 |
0.55 |
1.3 |
20.4 |
1.25 |
1.7 |
1.3mm2, Multicore |
||||||
RE-2Y(St)HSWAH 2C1.3 |
2x1x1.3 |
0.6 |
0.9 |
7.4 |
0.9 |
1.3 |
RE-2Y(St)HSWAH 3C1.3 |
3x1x1.3 |
0.6 |
0.9 |
7.9 |
0.9 |
1.3 |
RE-2Y(St)HSWAH 4C1.3 |
4x1x1.3 |
0.6 |
0.9 |
8.5 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 5C1.3 |
5x1x1.3 |
0.6 |
1.0 |
9.5 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 8C1.3 |
8x1x1.3 |
0.6 |
1.0 |
11.2 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 10C1.3 |
10x1x1.3 |
0.6 |
1.1 |
13.2 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 12C1.3 |
12x1x1.3 |
0.6 |
1.1 |
13.6 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 14C1.3 |
14x1x1.3 |
0.6 |
1.1 |
14.3 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 16C1.3 |
16x1x1.3 |
0.6 |
1.1 |
15.0 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 20C1.3 |
20x1x1.3 |
0.6 |
1.2 |
16.9 |
0.9 |
1.6 |
RE-2Y(St)HSWAH 24C1.3 |
24x1x1.3 |
0.6 |
1.2 |
18.7 |
1.25 |
1.6 |
RE-2Y(St)HSWAH 27C1.3 |
27x1x1.3 |
0.6 |
1.3 |
19.3 |
1.25 |
1.6 |
RE-2Y(St)HSWAH 30C1.3 |
30x1x1.3 |
0.6 |
1.3 |
20.0 |
1.25 |
1.6 |
RE-2Y(St)HSWAH 37C1.3 |
37x1x1.3 |
0.6 |
1.3 |
21.6 |
1.25 |
1.7 |
RE-2Y(St)HSWAH 40C1.3 |
40x1x1.3 |
0.6 |
1.4 |
22.7 |
1.25 |
1.7 |
1.5mm2, Multicore |
||||||
RE-2Y(St)HSWAH 2C1.5 |
2x1x1.5 |
0.6 |
0.9 |
7.7 |
0.9 |
1.3 |
RE-2Y(St)HSWAH 3C1.5 |
3x1x1.5 |
0.6 |
0.9 |
8.1 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 4C1.5 |
4x1x1.5 |
0.6 |
0.9 |
8.8 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 5C1.5 |
5x1x1.5 |
0.6 |
1.0 |
9.8 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 8C1.5 |
8x1x1.5 |
0.6 |
1.0 |
11.6 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 10C1.5 |
10x1x1.5 |
0.6 |
1.1 |
13.7 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 12C1.5 |
12x1x1.5 |
0.6 |
1.1 |
14.1 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 14C1.5 |
14x1x1.5 |
0.6 |
1.1 |
14.8 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 16C1.5 |
16x1x1.5 |
0.6 |
1.1 |
15.6 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 20C1.5 |
20x1x1.5 |
0.6 |
1.2 |
17.6 |
1.25 |
1.6 |
RE-2Y(St)HSWAH 24C1.5 |
24x1x1.5 |
0.6 |
1.3 |
19.6 |
1.25 |
1.6 |
RE-2Y(St)HSWAH 27C1.5 |
27x1x1.5 |
0.6 |
1.3 |
20.1 |
1.25 |
1.6 |
RE-2Y(St)HSWAH 30C1.5 |
30x1x1.5 |
0.6 |
1.3 |
20.8 |
1.25 |
1.7 |
RE-2Y(St)HSWAH 37C1.5 |
37x1x1.5 |
0.6 |
1.4 |
22.6 |
1.25 |
1.7 |
RE-2Y(St)HSWAH 40C1.5 |
40x1x1.5 |
0.6 |
1.4 |
23.6 |
1.25 |
1.7 |
2.5mm2, Multicore |
||||||
RE-2Y(St)HSWAH 2C2.5 |
2x1x2.5 |
0.7 |
0.9 |
8.9 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 3C2.5 |
3x1x2.5 |
0.7 |
1.0 |
9.7 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 4C2.5 |
4x1x2.5 |
0.7 |
1.0 |
10.5 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 5C2.5 |
5x1x2.5 |
0.7 |
1.0 |
11.9 |
0.9 |
1.4 |
RE-2Y(St)HSWAH 8C2.5 |
8x1x2.5 |
0.7 |
1.1 |
13.9 |
0.9 |
1.5 |
RE-2Y(St)HSWAH 10C2.5 |
10x1x2.5 |
0.7 |
1.2 |
16.3 |
0.9 |
1.6 |
RE-2Y(St)HSWAH 12C2.5 |
12x1x2.5 |
0.7 |
1.2 |
16.9 |
0.9 |
1.6 |
RE-2Y(St)HSWAH 14C2.5 |
14x1x2.5 |
0.7 |
1.2 |
17.7 |
1.25 |
1.6 |
RE-2Y(St)HSWAH 16C2.5 |
16x1x2.5 |
0.7 |
1.3 |
18.9 |
1.25 |
1.6 |
RE-2Y(St)HSWAH 20C2.5 |
20x1x2.5 |
0.7 |
1.3 |
21.1 |
1.25 |
1.7 |
RE-2Y(St)HSWAH 24C2.5 |
24x1x2.5 |
0.7 |
1.4 |
23.6 |
1.25 |
1.7 |
RE-2Y(St)HSWAH 27C2.5 |
27x1x2.5 |
0.7 |
1.4 |
24.1 |
1.25 |
1.8 |
RE-2Y(St)HSWAH 30C2.5 |
30x1x2.5 |
0.7 |
1.5 |
25.2 |
1.25 |
1.8 |
RE-2Y(St)HSWAH 37C2.5 |
37x1x2.5 |
0.7 |
1.5 |
27.2 |
1.25 |
1.8 |
RE-2Y(St)HSWAH 40C2.5 |
40x1x2.5 |
0.7 |
1.6 |
28.5 |
1.25 |
1.9 |
