PE Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Single Triple)
RE-2Y(St)Y 90°C / 300 V

APPLICATION:

EN 50228-7 cables are uese for transmission of analogue and digital signals in instrument and control systems;

allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to

low impedance sources, e.g. public mains electricity supply.

Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for

direct buiral.

Recommended for use as fire protection messure for people and important material assets.

STANDARDS

RE-2Y(St)Y 90°C / 300 V

Basic design to EN50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)***	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*

Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

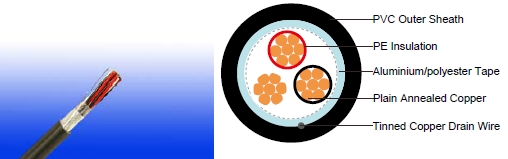

CABLE CONSTRUCTION

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.

Insulation: PE compound as per EN 50290. 2-23.

Triple: Three conductors twisted to form a triple

Lay-up: Triples laid up in layers of optimum pitch

Separator: Polyester tape

Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2

Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil

resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance

standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound

and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.

Outer Sheath: Black or Blue for intrinsically safe systems

Physical AND THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +90°C

Temperature Range During Installation (Mobile State): -5°C – +50°C

Minimum Bending Radius: 7.5 X Overall Diameter

Sunlight Resistance: UL 1581 section 1200

Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile

strength/min.60% of elongation)

Electrical PROPERTIES

Conductor Area Size	mm²	0.5	0.75	1.0	1.3	1.5
Insulation thickness (nominal)	mm	0.35	0.38	0.4	0.45	0.45
Conductor resistance (20°C)	Ω/km	36.7	25.0	18.5	14.2	12.3
Insulation resistance (20°C)	MΩ.km(Min.)	5000	5000	5000	5000	5000
Mutual Capacitance (1 kHz)	pF/m(Max.)	115	115	115	115	115
Capacitance unbalance(1 kHz)	pF/500 m (Max.)	0	0	0	0	0

CONSTRUCTION PARAMETERS

Caledonian Cable Code	RE-2Y(St)Y
Caledonian Cable Code	No. of Triples x3xCross Section	Nominal Insulation Thickness	Nominal Outer Sheath Thickness	Nominal Overall Diameter	Approx. Weight
	No.x3xmm2	mm	mm	mm	kg/km
RE-2Y(St)Y 1T0.5	1x3x0.50	0.35	0.8	5.4	49
RE-2Y(St)Y 1T0.75	1x3x0.75	0.38	0.9	6.1	60
RE-2Y(St)Y 1T1.0	1x3x1.0	0.4	0.9	6.6	71
RE-2Y(St)Y 1T1.3	1x3x1.3	0.45	0.9	7.2	86
RE-2Y(St)Y 1T1.5	1x3x1.5	0.45	0.9	7.5	97

Note : Other conductor sizes & core configurations are available upon request.
