EN50288-7 Cables
XLPE Insulated, LSZH Sheathed Instrumentation Cables
PE Insulated, LSZH Sheathed Instrumentation Cables

PVC Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Multitriple)
RE-Y(St)Y 90°C / 300 V

APPLICATION:

EN 50228-7 cables are used for transmission of analogue and digital signals in instrument and control systems;

allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to

low impedance sources, e.g. public mains electricity supply.

Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for

direct buiral.

Recommended for use as fire protection messure for people and important material assets.

STANDARDS

RE-Y(St)Y 90°C / 300 V

Basic design to EN50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note:Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

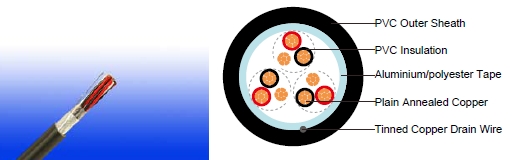

CABLE CONSTRUCTION

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.

Insulation: PVC compound as per EN 50290-2-21.

Triple: Three conductors twisted to form a triple

Lay-up: Triples laid up in layers of optimum pitch

Separator: Polyester tape

Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2

Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil

resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance

standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound

and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.

Outer Sheath: Black or blue for intrinsically safe systems

Physical AND THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +90°C

Temperature Range During Installation (Mobile State): -5°C – +50°C

Minimum Bending Radius: 7.5 X Overall Diameter

Sunlight Resistance: UL 1581 section 1200

Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile

strength/min.60% of elongation)

Electrical PROPERTIES

Conductor Area Size mm 2 0.5 0.75 1.0 1.3 1.5
Insulation thickness (nominal) mm 0.35 0.38 0.4 0.45 0.45
Conductor resistance (20°C) Ω/km 36.7 25.0 18.5 14.2 12.3
Insulation resistance (20°C) MΩ.km(Min.) 5000
Mutual Capacitance (1 kHz) up to 4 trples pF/m(Max.) 90 90 90 102 102
  above 4 trples pF/m(Max.) 75 75 75 85 85
Inductance mH/km(Max.) 1
L / R (ratio) (max.) μH/Ω 25 25 25 40 40
Operating voltage V 300
Test Voltage Urms Core to Core V 1500
Core to Screen V 1500

CONSTRUCTION PARAMETERS





Caledonian Cable Code

RE-Y(St)Y



No. of Triples x3xCross Section

Nominal Insulation Thickness

Nominal Outer Sheath Thickness



No.x3xmm2

mm

mm

0.5mm2 , Multi-striple

RE-Y(St)Y 2T0.5

2x3x0.50

0.35

0.9

RE-Y(St)Y 4T0.5

4x3x0.50

0.35

1.0

RE-Y(St)Y 5T0.5

5x3x0.50

0.35

1.0

RE-Y(St)Y 6T0.5

6x3x0.50

0.35

1.0

RE-Y(St)Y 8T0.5

8x3x0.50

0.35

1.1

RE-Y(St)Y 10T0.5

10x3x0.50

0.35

1.1

RE-Y(St)Y 12T0.5

12x3x0.50

0.35

1.1

RE-Y(St)Y 16T0.5

16x3x0.50

0.35

1.2

RE-Y(St)Y 20T0.5

20x3x0.50

0.35

1.2

RE-Y(St)Y 24T0.5

24x3x0.50

0.35

1.3

0.75mm2 , Multi-striple

RE-Y(St)Y 2T0.75

2x3x0.75

0.38

0.9

RE-Y(St)Y 4T0.75

4x3x0.75

0.38

1.0

RE-Y(St)Y 5T0.75

5x3x0.75

0.38

1.0

RE-Y(St)Y 6T0.75

6x3x0.75

0.38

1.1

RE-Y(St)Y 8T0.75

8x3x0.75

0.38

1.1

RE-Y(St)Y 10T0.75

10x3x0.75

0.38

1.2

RE-Y(St)Y 12T0.75

12x3x0.75

0.38

1.2

RE-Y(St)Y 16T0.75

16x3x0.75

0.38

1.3





Caledonian Cable Code

RE-Y(St)Y



No. of Triples x3xCross Section

Nominal Insulation Thickness

Nominal Outer Sheath Thickness



No.x3xmm2

mm

mm

RE-Y(St)Y 20T0.75

20x3x0.75

0.38

1.3

RE-Y(St)Y 24T0.75

24x3x0.75

0.38

1.4

1.0mm2 , Multi-striple

RE-Y(St)Y 2T1.0

2x3x1.0

0.4

1.0

RE-Y(St)Y 4T1.0

4x3x1.0

0.4

1.0

RE-Y(St)Y 5T1.0

5x3x1.0

0.4

1.0

RE-Y(St)Y 6T1.0

6x3x1.0

0.4

1.1

RE-Y(St)Y 8T1.0

8x3x1.0

0.4

1.1

RE-Y(St)Y 10T1.0

10x3x1.0

0.4

1.2

RE-Y(St)Y 12T1.0

12x3x1.0

0.4

1.2

RE-Y(St)Y 16T1.0

16x3x1.0

0.4

1.3

RE-Y(St)Y 20T1.0

20x3x1.0

0.4

1.4

RE-Y(St)Y 24T1.0

24x3x1.0

0.4

1.4

1.3mm2 , Multi-striple

RE-Y(St)Y 2T1.3

2x3x1.3

0.45

1.0

RE-Y(St)Y 4T1.3

4x3x1.3

0.45

1.1

RE-Y(St)Y 5T1.3

5x3x1.3

0.45

1.1

RE-Y(St)Y 6T1.3

6x3x1.3

0.45

1.2

RE-Y(St)Y 8T1.3

8x3x1.3

0.45

1.2

RE-Y(St)Y 10T1.3

10x3x1.3

0.45

1.3

RE-Y(St)Y 12T1.3

12x3x1.3

0.45

1.3

RE-Y(St)Y 16T1.3

16x3x1.3

0.45

1.4

RE-Y(St)Y 20T1.3

20x3x1.3

0.45

1.5

RE-Y(St)Y 24T1.3

24x3x1.3

0.45

1.6

1.5mm2 , Multi-striple

RE-Y(St)Y 2T1.5

2x3x1.5

0.45

1.0

RE-Y(St)Y 4T1.5

4x3x1.5

0.45

1.1

RE-Y(St)Y 5T1.5

5x3x1.5

0.45

1.1

RE-Y(St)Y 6T1.5

6x3x1.5

0.45

1.2

RE-Y(St)Y 8T1.5

8x3x1.5

0.45

1.3





Caledonian Cable Code

RE-Y(St)Y



No. of Triples x3xCross Section

Nominal Insulation Thickness

Nominal Outer Sheath Thickness



No.x3xmm2

mm

mm

RE-Y(St)Y 10T1.5

10x3x1.5

0.45

1.3

RE-Y(St)Y 12T1.5

12x3x1.5

0.45

1.4

RE-Y(St)Y 16T1.5

16x3x1.5

0.45

1.5

RE-Y(St)Y 20T1.5

20x3x1.5

0.45

1.6

RE-Y(St)Y 24T1.5

24x3x1.5

0.45

1.7

Note : Other conductor sizes & core configurations are available upon request
