EN50288-7 Cables |  |
|
|
|||
| XLPE Insulated, LSZH Sheathed Instrumentation Cables |
PVC Insulated, PVC Sheathed, Overall Screened & Armoured Instrumentation Cables
(Multitriple)
RE-Y(St)YSWAY 70°C / 300 V
APPLICATION:
EN 50228-7 cables are used for transmission of analogue and digital signals in instrument and control systems;
allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to
low impedance sources, e.g. public mains electricity supply.
Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for
direct buiral. Recommended for use as fire protection messure for people and important material assets.
STANDARDS
Basic design to EN50288-7
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)*** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
| Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
| Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| NoToxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard, *** denotes optional
VOLTAGE RATING
300V

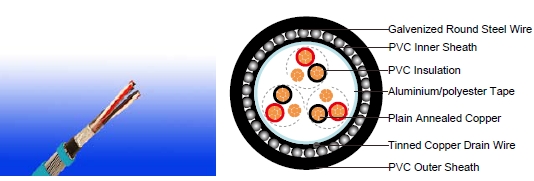

CABLE CONSTRUCTION
Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PVC compound as per EN 50290-2-21.
Pair:Two conductors twisted to form a pair
Lay-up: Pairs laid up in layers of optimum pitch
Separator: Polyester tape
Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Inner Sheath: Thermoplastic PVC compound
Armour: Galvenized round steel wire, EN 10257-1
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil
resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound
and the overall cable design. LSPVC can also be provided upon request.
COLOUR CODE
Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
Outer Sheath: Black or blue for intrinsically safe systems
Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C – +70°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile
strength/min.60% of elongation)
Electrical PROPERTIES
Conductor Area Size |
mm 2 |
0.5 |
0.75 |
1.0 |
1.3 |
1.5 |
|
Insulation thickness (nominal) |
mm |
0.35 |
0.38 |
0.4 |
0.45 |
0.45 |
|
Conductor resistance (20°C) |
Ω/km |
36.7 |
25 |
18.5 |
14.2 |
12.3 |
|
Insulation resistance (20°C) |
MΩ.km(Min.) |
5000 |
|||||
Mutual Capacitance (1 kHz) |
pF/m(Max.) |
|
|||||
|
≤ 4 pairs |
90 |
90 |
90 |
102 |
102 |
|
| all other pairs | 75 | 75 | 75 | 85 | 85 | |||
| Capacitance unbalance(1 kHz) | pF/500 m (Max.) | 500 | ||||||
| L / R (ratio) (max.) | μH/Ω | 25 | 25 | 25 | 40 | 40 | ||
| Inductance | mH/km(Max.) | 1 | ||||||
| Operating voltage Urms | V | 300 | ||||||
| Test Voltage | Core to Core | V | 1500 | |||||
| Core to Screen | V | 1500 | ||||||
CONSTRUCTION PARAMETERS
Caledonian Cable Code |
RE-Y(St)YSWAY |
|||||
No. of Triples x3xCross Section |
Nominal Insulation Thick-ness |
Nominal Inner Sheath Thick |
Nominal |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick-ness |
|
|
No.x3xmm2 |
mm |
mm |
mm |
mm |
mm |
0.5mm2, Multi-striple |
||||||
RE-Y(St)YSWAY 2T0.5 |
2x3x0.5 |
0.35 |
0.9 |
8.4 |
0.9 |
1.4 |
RE-Y(St)YSWAY 4T0.5 |
4x3x0.5 |
0.35 |
1.0 |
9.8 |
0.9 |
1.4 |
RE-Y(St)YSWAY 5T0.5 |
5x3x0.5 |
0.35 |
1.0 |
10.8 |
0.9 |
1.4 |
RE-Y(St)YSWAY 6T0.5 |
6x3x0.5 |
0.35 |
1.0 |
12.1 |
0.9 |
1.4 |
RE-Y(St)YSWAY 8T0.5 |
8x3x0.5 |
0.35 |
1.1 |
13.1 |
0.9 |
1.5 |
RE-Y(St)YSWAY 10T0.5 |
10x3x0.5 |
0.35 |
1.1 |
14.7 |
0.9 |
1.5 |
RE-Y(St)YSWAY 12T0.5 |
12x3x0.5 |
0.35 |
1.1 |
15.2 |
0.9 |
1.5 |
RE-Y(St)YSWAY 16T0.5 |
16x3x0.5 |
0.35 |
1.2 |
17.4 |
0.9 |
1.6 |
RE-Y(St)YSWAY 20T0.5 |
20x3x0.5 |
0.35 |
1.2 |
19.1 |
1.25 |
1.6 |
RE-Y(St)YSWAY 24T0.5 |
24x3x0.5 |
0.35 |
1.3 |
20.9 |
1.25 |
1.7 |
0.75mm2, Multi-striple |
||||||
RE-Y(St)YSWAY 2T0.75 |
2x3x0.75 |
0.38 |
1.0 |
10.6 |
0.9 |
1.4 |
RE-Y(St)YSWAY 4T0.75 |
4x3x0.75 |
0.38 |
1.1 |
12.4 |
0.9 |
1.4 |
RE-Y(St)YSWAY 5T0.75 |
5x3x0.75 |
0.38 |
1.1 |
13.7 |
0.9 |
1.4 |
RE-Y(St)YSWAY 6T0.75 |
6x3x0.75 |
0.38 |
1.1 |
15.4 |
0.9 |
1.5 |
RE-Y(St)YSWAY 8T0.75 |
8x3x0.75 |
0.38 |
1.2 |
16.7 |
0.9 |
1.5 |
RE-Y(St)YSWAY 10T0.75 |
10x3x0.75 |
0.38 |
1.3 |
19.0 |
0.9 |
1.5 |
RE-Y(St)YSWAY 12T0.75 |
12x3x0.75 |
0.38 |
1.3 |
19.7 |
0.9 |
1.7 |
Caledonian Cable Code |
RE-Y(St)YSWAY |
|||||
No. of Triples x3xCross Section |
Nominal Insulation Thick-ness |
Nominal Inner Sheath Thick |
Nominal |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick-ness |
|
|
No.x3xmm2 |
mm |
mm |
mm |
mm |
mm |
RE-Y(St)YSWAY 16T0.75 |
16x3x0.75 |
0.38 |
1.4 |
22.5 |
1.25 |
1.6 |
RE-Y(St)YSWAY 20T0.75 |
20x3x0.75 |
0.38 |
1.5 |
24.9 |
1.25 |
1.7 |
RE-Y(St)YSWAY 24T0.75 |
24x3x0.75 |
0.38 |
1.6 |
27.2 |
1.25 |
1.7 |
1.0mm2, Multi-striple |
||||||
RE-Y(St)YSWAY 2T1.0 |
2x3x1.0 |
0.4 |
1.0 |
11.5 |
0.9 |
1.4 |
RE-Y(St)YSWAY 4T1.0 |
4x3x1.0 |
0.4 |
1.1 |
13.4 |
0.9 |
1.4 |
RE-Y(St)YSWAY 5T1.0 |
5x3x1.0 |
0.4 |
1.1 |
14.8 |
0.9 |
1.5 |
RE-Y(St)YSWAY 6T1.0 |
6x3x1.0 |
0.4 |
1.2 |
16.9 |
0.9 |
1.5 |
RE-Y(St)YSWAY 8T1.0 |
8x3x1.0 |
0.4 |
1.2 |
18.1 |
0.9 |
1.5 |
RE-Y(St)YSWAY 10T1.0 |
10x3x1.0 |
0.4 |
1.3 |
20.7 |
0.9 |
1.6 |
RE-Y(St)YSWAY 12T1.0 |
12x3x1.0 |
0.4 |
1.3 |
21.4 |
1.25 |
1.6 |
RE-Y(St)YSWAY 16T1.0 |
16x3x1.0 |
0.4 |
1.4 |
24.4 |
1.25 |
1.7 |
RE-Y(St)YSWAY 20T1.0 |
20x3x1.0 |
0.4 |
1.5 |
27.1 |
1.25 |
1.7 |
RE-Y(St)YSWAY 24T1.0 |
24x3x1.0 |
0.4 |
1.6 |
29.6 |
1.25 |
1.8 |
1.3mm2, Multi-striple |
||||||
RE-Y(St)YSWAY 2T1.3 |
2x3x1.3 |
0.45 |
1.1 |
12.8 |
0.9 |
1.4 |
RE-Y(St)YSWAY 4T1.3 |
4x3x1.3 |
0.45 |
1.1 |
14.7 |
0.9 |
1.5 |
RE-Y(St)YSWAY 5T1.3 |
5x3x1.3 |
0.45 |
1.2 |
16.5 |
0.9 |
1.5 |
RE-Y(St)YSWAY 6T1.3 |
6x3x1.3 |
0.45 |
1.3 |
18.8 |
0.9 |
1.5 |
RE-Y(St)YSWAY 8T1.3 |
8x3x1.3 |
0.45 |
1.3 |
20.1 |
0.9 |
1.6 |
RE-Y(St)YSWAY 10T1.3 |
10x3x1.3 |
0.45 |
1.4 |
23.0 |
1.25 |
1.7 |
RE-Y(St)YSWAY 12T1.3 |
12x3x1.3 |
0.45 |
1.5 |
24.0 |
1.25 |
1.7 |
RE-Y(St)YSWAY 16T1.3 |
16x3x1.3 |
0.45 |
1.6 |
27.4 |
1.25 |
1.8 |
RE-Y(St)YSWAY 20T1.3 |
20x3x1.3 |
0.45 |
1.7 |
30.4 |
1.25 |
1.8 |
RE-Y(St)YSWAY 24T1.3 |
24x3x1.3 |
0.45 |
1.8 |
33.1 |
1.60 |
1.9 |
1.5mm2, Multi-striple |
||||||
RE-Y(St)YSWAY 2T1.5 |
2x3x1.5 |
0.45 |
1.1 |
13.2 |
0.9 |
1.4 |
RE-Y(St)YSWAY 4T1.5 |
4x3x1.5 |
0.45 |
1.2 |
15.4 |
0.9 |
1.5 |
Caledonian Cable Code |
RE-Y(St)YSWAY |
|||||
No. of Triples x3xCross Section |
Nominal Insulation Thick-ness |
Nominal Inner Sheath Thick |
Nominal |
Nominal Armour Wire Diameter |
Nominal Outer Sheath Thick-ness |
|
|
No.x3xmm2 |
mm |
mm |
mm |
mm |
mm |
RE-Y(St)YSWAY 5T1.5 |
5x3x1,5 |
0.45 |
1.2 |
17.1 |
0.9 |
1.5 |
RE-Y(St)YSWAY 6T1.5 |
6x3x1,5 |
0.45 |
1.3 |
19.5 |
0.9 |
1.6 |
RE-Y(St)YSWAY 8T1.5 |
8x3x1,5 |
0.45 |
1.4 |
21.1 |
1.25 |
1.6 |
RE-Y(St)YSWAY 10T1.5 |
10x3x1,5 |
0.45 |
1.5 |
24.1 |
1.25 |
1.7 |
RE-Y(St)YSWAY 12T1.5 |
12x3x1,5 |
0.45 |
1.5 |
24.9 |
1.25 |
1.7 |
RE-Y(St)YSWAY 16T1.5 |
16x3x1,5 |
0.45 |
1.6 |
28.4 |
1.25 |
1.8 |
RE-Y(St)YSWAY 20T1.5 |
20x3x1,5 |
0.45 |
1.7 |
31.6 |
1.25 |
1.9 |
RE-Y(St)YSWAY 24T1.5 |
24x3x1,5 |
0.45 |
1.8 |
34.4 |
1.60 |
2.0 |
Note : Other conductor sizes & core configurations are available upon request.
