EN50288-7 Cables |  |
|
|
|||
| XLPE Insulated, LSZH Sheathed Instrumentation Cables |
XlPe Insulated, PVc sheathed, Individual and overall screened Instrumentation
cables (Multipair)re-2X(st)Y PiMf 90°c / 300V
APPLICATION
EN 50228-7 cables are used for transmission of analogue and digital signals in instrument and control systems;
allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to
low impedance sources, e.g. public mains electricity supply.
Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for
direct buiral. Recommended for use as fire protection messure for people and important material assets.
STANDARDS
Basic design to EN 50288-7
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
|
Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
Minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
| No Toxic gases | NES 02-713; NF C 20-454 |
| Sunlight Resistance | UL 1581 section 1200 |
| Oil Resistance | ICEA S-73-532** |
Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention:
min 60% of tensile strength/min.60% of elongation, *** denotes optional.
VOLTAGE RATING
300V

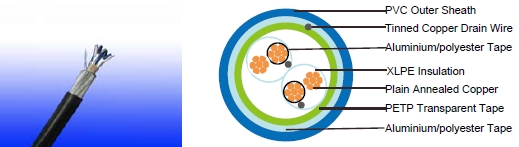

CABLE CONSTRUCTION
Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: Extruded cross-linked XLPE compound as per EN 50290-2-29.
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned
copper drain wire, 0.5mm²
Binder tape: PETP transparent tape
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with
tinned copper drain wire, 0.5mm²
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil
resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound
and the overall cable design. LSPVC can also be provided upon request.
COLOUR CODE
Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
Outer Sheath: Black or blue for intrinsically safe systems
PHYSICAL AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile
strength/min.60% of elongation)
ELECTRICAL PROPERTIES
Conductor Area Size |
mm 2 |
0.5 |
0.75 |
1.0 |
1.3 |
1.5 |
Insulation thickness (nominal) |
mm |
0.4 |
0.4 |
0.4 |
0.45 |
0.45 |
Conductor resistance (20°C) |
Ω/km |
36.7 |
25 |
18.5 |
14.2 |
12.3 |
Insulation resistance (20°C) |
MΩ.km(Min.) |
5000 |
||||
Mutual Capacitance (1 kHz) |
pF/m(Max.) |
115 |
||||
Inductance |
mH/km (Max.) |
1 |
||||
L / R (ratio) (max.) |
μH/Ω |
25 |
25 |
25 |
40 |
40 |
Operating voltage Urms |
V |
300 |
||||
| Test Voltage | Core to Core | V | 1500 |
| Core to Screen | V | 1500 |
CONSTRUCTION PARAMETERS
Caledonian Cable Code |
RE-2X(St)Y PiMF |
||
No. of Pairs x2xCross Section |
Nominal |
Nominal |
|
|
No.x2xmm2 |
mm |
mm |
0.5mm2, Multipair |
|||
RE-2X(St)Y PiMF 2P0.5 |
2x2x0.5 |
0.35 |
0.9 |
RE-2X(St)Y PiMF 4P0.5 |
3x2x0.5 |
0.35 |
1.0 |
RE-2X(St)Y PiMF 5P0.5 |
4x2x0.5 |
0.35 |
1.0 |
RE-2X(St)Y PiMF 6P0.5 |
5x2x0.5 |
0.35 |
1.0 |
RE-2X(St)Y PiMF 8P0.5 |
8x2x0.5 |
0.35 |
1.1 |
RE-2X(St)Y PiMF 10P0.5 |
10x2x0.5 |
0.35 |
1.2 |
RE-2X(St)Y PiMF 12P0.5 |
12x2x0.5 |
0.35 |
1.2 |
RE-2X(St)Y PiMF 16P0.5 |
16x2x0.5 |
0.35 |
1.2 |
RE-2X(St)Y PiMF 20P0.5 |
20x2x0.5 |
0.35 |
1.3 |
RE-2X(St)Y PiMF 24P0.5 |
24x2x0.5 |
0.35 |
1.4 |
0.75mm2, Multipair |
|||
RE-2X(St)Y PiMF 2P0.75 |
2x2x0.75 |
0.38 |
1.0 |
RE-2X(St)Y PiMF 4P0.75 |
4x2x0.75 |
0.38 |
1.0 |
RE-2X(St)Y PiMF 5P0.75 |
5x2x0.75 |
0.38 |
1.1 |
RE-2X(St)Y PiMF 6P0.75 |
6x2x0.75 |
0.38 |
1.1 |
RE-2X(St)Y PiMF 8P0.75 |
8x2x0.75 |
0.38 |
1.1 |
RE-2X(St)Y PiMF 10P0.75 |
10x2x0.75 |
0.38 |
1.2 |
RE-2X(St)Y PiMF 12P0.75 |
12x2x0.75 |
0.38 |
1.2 |
RE-2X(St)Y PiMF 16P0.75 |
16x2x0.75 |
0.38 |
1.3 |
RE-2X(St)Y PiMF 20P0.75 |
20x2x0.75 |
0.38 |
1.4 |
Caledonian Cable Code |
RE-2X(St)Y PiMF |
||
No. of Pairs x2xCross Section |
Nominal |
Nominal |
|
|
No.x2xmm2 |
mm |
mm |
RE-2X(St)Y PiMF 24P0.75 |
24x2x0.75 |
0.38 |
1.5 |
1.0mm2, Multipair |
|||
RE-2X(St)Y PiMF 2P1.0 |
2x2x1.0 |
0.4 |
1.0 |
RE-2X(St)Y PiMF 4P1.0 |
4x2x1.0 |
0.4 |
1.0 |
RE-2X(St)Y PiMF 5P1.0 |
5x2x1.0 |
0.4 |
1.1 |
RE-2X(St)Y PiMF 6P1.0 |
6x2x1.0 |
0.4 |
1.1 |
RE-2X(St)Y PiMF 8P1.0 |
8x2x1.0 |
0.4 |
1.2 |
RE-2X(St)Y PiMF 10P1.0 |
10x2x1.0 |
0.4 |
1.2 |
RE-2X(St)Y PiMF 12P1.0 |
12x2x1.0 |
0.4 |
1.3 |
RE-2X(St)Y PiMF 16P1.0 |
16x2x1.0 |
0.4 |
1.3 |
RE-2X(St)Y PiMF 20P1.0 |
20x2x1.0 |
0.4 |
1.4 |
RE-2X(St)Y PiMF 24P1.0 |
24x2x1.0 |
0.4 |
1.5 |
1.3mm2, Multipair |
|||
RE-2X(St)Y PiMF 2P1.3 |
2x2x1.3 |
0.45 |
1.0 |
RE-2X(St)Y PiMF 4P1.3 |
4x2x1.3 |
0.45 |
1.1 |
RE-2X(St)Y PiMF 5P1.3 |
5x2x1.3 |
0.45 |
1.1 |
RE-2X(St)Y PiMF 6P1.3 |
6x2x1.3 |
0.45 |
1.2 |
RE-2X(St)Y PiMF 8P1.3 |
8x2x1.3 |
0.45 |
1.3 |
RE-2X(St)Y PiMF 10P1.3 |
10x2x1.3 |
0.45 |
1.3 |
RE-2X(St)Y PiMF 12P1.3 |
12x2x1.3 |
0.45 |
1.4 |
RE-2X(St)Y PiMF 16P1.3 |
16x2x1.3 |
0.45 |
1.5 |
RE-2X(St)Y PiMF 20P1.3 |
20x2x1.3 |
0.45 |
1.6 |
RE-2X(St)Y PiMF 24P1.3 |
24x2x1.3 |
0.45 |
1.7 |
1.5mm2, Multipair |
|||
RE-2X(St)Y PiMF 2P1.5 |
2x2x1.5 |
0.45 |
1.0 |
RE-2X(St)Y PiMF 4P1.5 |
4x2x1.5 |
0.45 |
1.1 |
RE-2X(St)Y PiMF 5P1.5 |
5x2x1.5 |
0.45 |
1.2 |
Caledonian Cable Code |
RE-2X(St)Y PiMF |
||
No. of Pairs x2xCross Section |
Nominal |
Nominal |
|
|
No.x2xmm2 |
mm |
mm |
RE-2X(St)Y PiMF 6P1.5 |
6x2x1.5 |
0.45 |
1.2 |
RE-2X(St)Y PiMF 8P1.5 |
8x2x1.5 |
0.45 |
1.3 |
RE-2X(St)Y PiMF 10P1.5 |
10x2x1.5 |
0.45 |
1.4 |
RE-2X(St)Y PiMF 12P1.5 |
12x2x1.5 |
0.45 |
1.4 |
RE-2X(St)Y PiMF 16P1.5 |
16x2x1.5 |
0.45 |
1.5 |
RE-2X(St)Y PiMF 20P1.5 |
20x2x1.5 |
0.45 |
1.6 |
RE-2X(St)Y PiMF 24P1.5 |
24x2x1.5 |
0.45 |
1.7 |
Note : Other conductor sizes & core configurations are available upon request.
