PAS 5308 Part 1 / Type 2 (Armoured Cables)

PAS 5308 Cable Part 1 Type 2 PE-OS-SWA-PVC

Applications

PAS 5308 cables are designed to connect electrical instrumentation and communication systems in and around

process plants and similar applications. Generally used to transmit analogue or digital signals in measurement

and process control where chemicals may be present. The armoured version are well adapted to underground

use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical

plant...).

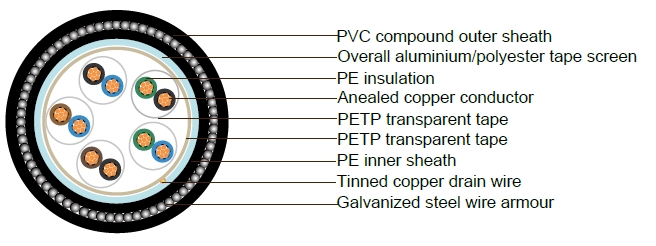

Construction

PAS 5308 Cable Part 1 Type 2 PE-OS-SWA-PVC

Conductor

Annealed copper, sizes: 0.5mm² mulitistranded(Class 5), 0.5 mm² and 1.0 mm² solid(Class 1), 1.5mm² or 2.5

multistranded(Class 2) to BS EN 60228

Insulation

thermoplastic PE to BS EN 50290-2-23:2002, grade L/MD or a cross-linked PE to BS EN 50290-2-29

Pairing

Two insulated conductors uniformly twisted together with a lay not exceeding 100mm, Two-pair cables without

individual pair screens (quads) shall have four cores laid in quad formation round a central dummy

Colour code

See technical information

Binder tape

Non-hygroscopic binder tape of minimum thickness 0.023 mm

Collective screen

Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain

wire, 0.5mm²

Inner Sheath

Extruded bedding of a PE compound conforming to BS EN 50290-2-24:2002, grade LD

Amour

Galvanized steel wire armour

Outer sheath

extruded sheath of a PVC compound conforming to BS EN 50290-2-22:2002, grade TM51

Sheath colour

Generally black

Electrical Properties

Temperature range	above 0˚C( fixed installation)
	-15˚C to +65˚C(during operation )

Conductor Area Size		mm²	0.5	0.5	1	1.5	2.5
Conductor Stranding		No. x mm	1 x 0.8	16 x 0.2	1 x 1.13	7 x 0.53	7 x 0.67
Conductor resistance max		ohm/km	36.8	39.7	18.4	12.3	7.6
Insulation resistance min	Individual conductor	Gohm/km	5	5	5	5	5
	individual screen	Mohm/km	1	1	1	1	1
Capacitance unbalance at 1kHz(pair to pair screen)		pF/250m			250
Max. Mutual Capacitance @ 1kHz for Non OS or OS cables (except one-pair and two-pairs)		pF/m	75	75	75	85	105
Max. Mutual Capacitance @1 kHz IS/OS cables (include 1pair and 2 pair)		pF/m	115	115	115	120	140
Max. L/R Ratio for adjacentcores(Inductance/Resistance)		μH/ohm	25	25	25	40	60
Test voltage		V	2000	2000	2000	2000	2000
Rated voltage		V	300/500	300/500	300/500	300/500	300/500

Parameter

Number of Cores	Nominal Thickness of Insulation	Nominal Thickness of bedding	Nominal Diameter over Bedding	Nominal Thickness of Armour	Nominal Diameter over Armour	Nominal Thickness of Sheath	Nominal Diameter of Cable
Number of Cores	mm	mm²	mm	mm	mm	mm	mm
solid conductor 0.5mm² (1/0.8mm)
1	0.5	0.8	5.3	0.9	7.1	1.3	9.7
2	0.5	0.8	6.1	0.9	7.9	1.3	10.5
5	0.5	1.1	10.6	0.9	12.4	1.4	15.2
10	0.5	1.2	14	1.25	16.5	1.6	19.7
15	0.5	1.2	16.1	1.25	18.6	1.6	21.8
20	0.5	1.3	18.4	1.6	21.6	1.7	25
30	0.5	1.3	22	1.6	25.2	1.8	28.8
50	0.5	1.5	27.9	1.6	31.1	2	35.1
stranded conductor 0.5 mm² (16/0.2mm)
1	0.6	0.8	6	0.9	7.8	1.3	10.4
2	0.6	0.8	6.9	0.9	8.7	1.3	11.3
5	0.6	1.1	12.1	0.9	13.9	1.5	16.9
10	0.6	1.2	16.2	1.25	18.7	1.6	21.9
15	0.6	1.3	18.8	1.6	22	1.7	25.4
20	0.6	1.3	21.3	1.6	24.5	1.8	28.1
30	0.6	1.5	25.9	1.6 2.0	29.1	1.9	32.9
50	0.6	1.7	32.9	2	36.9	2.1	41.1
solid conductor 1.0 mm² (1/1.13mm)
1	0.6	0.8	6.4	0.9	8.2	1.3	10.8
2	0.6	0.8	7.4	0.9	9.2	1.4	12
5	0.6	1.1	13.2	1.25	15.7	1.5	18.7
10	0.6	1.2	17.4	1.25	19.9	1.7	23.3
15	0.6	1.3	20.3	1.6	23.5	1.8	27.1
20	0.6	1.5	23.4	1.6	26.6	1.8	30.2
30	0.6	1.5	28	1.6	31	2	35.2
50	0.6	2	36.3	2	40.3	2.2	44.7
stranded conductor 1.5 mm² (7/0.53mm)
1	0.6	0.8	7.3	0.9	9.1	1.4	11.9
2	0.6	0.9	8.7	0.9	10.5	1.4	13.3
5	0.6	1.2	15.4	1.25	17.9	1.6	21.1
10	0.6	1.3	20.6	1.6	23.8	1.8	27.4
15	0.6	1.5	24.2	1.6	27.4	1.9	31.2
20	0.6	1.5	27.5	1.6	30.7	2	34.7
30	0.6	1.7	33.3	2	37.3	2.1	41.5
50	0.6	2	42.6	2.5	47.6	2.4	52.4
stranded conductor 2.5 mm² (7/0.67mm)
1	0.6	0.8	8.1	0.9	9.9	1.4	12.7
2	0.6	0.9	9.7	0.9	11.5	1.4	14.3
5	0.6	1.2	17.2	1.25	19.7	1.7	23.1
10	0.6	1.4	24.1	1.6	27.3	1.9	31.1
15	0.6	1.6	28.2	1.6	31.4	2	35.4
20	0.6	1.7	31.8	2	35.8	2.1	40
30	0.6	1.9	37.9	2	41.9	2.3	46.5
50	0.6	2.3	48.9	2.5	53.9	2.6	59.1
