PAS 5308 Part 2 / Type 2 (Armoured Cables)

PAS 5308 Cable Part 2 Type 2 PVC-OS-SWA-PVC

Applications

PAS 5308 cables are designed to connect electrical instrumentation and communication systems in and around

process plants and similar applications. Generally used to transmit analogue or digital signals in measurement

and process control where chemicals may be present. PAS 5308 armoured version are well adapted to

underground use in industrial applications where chemical and mechanical protections are needed (refinery

areas, chemical plant...).

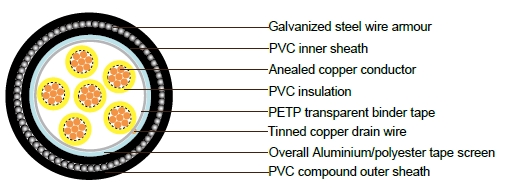

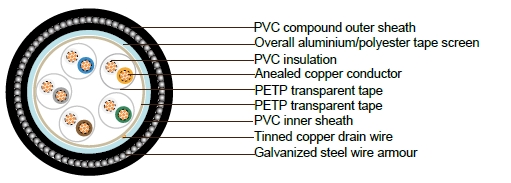

Construction

Conductor

Annealed copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 1.5mm² and 2.5mm² multistranded(Class

2) to BS EN 60228

Insulation

PVC to BS EN 50290-2-21:2002, grade TI51

Pairing

Two insulated conductors uniformly twisted together with a lay not exceeding 100mm, Two-pair cables without

individual pair screens (quads) shall have four cores laid in quad formation round a central dummy

Colour code

Multicore cables: up to 40 cores yellow with black numbers, 41 - 80 cores black with yellow numbers. Multipair

cables:See technical information

Binder tape

Non-hygroscopic binder tape of minimum thickness 0.023 mm

Collective screen

Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain

wire, 0.5mm²

Inner Sheath

Extruded sheath of a PVC compound conforming to BS EN 50290-2-22:2002, grade TM51

Amour

Galvanized steel wire armour

Outer sheath

Extruded sheath of a PVC compound conforming to BS EN 50290-2-22:2002, grade TM51

Sheath colour

Generally black

Electrical Properties

Temperature range above 0˚C( fixed installation)
  -15˚C to +65˚C(during operation )
Conductor Area Size mm² 0.5 0.5 1.0 1.5 2.5
Conductor Stranding No. x mm 1 x 0.8 16 x 0.2 1 x 1.13 7 x 0.53 7 x 0.67
Conductor resistance max ohm/km 36.8 39.7 18.4 12.3 7.6
Insulation resistance min Individual conductor Gohm/km 5 5 5 5 5
  individual screen Mohm/km 1 1 1   1
Capacitance unbalance at 1kHz(pair to pair screen) pF/250m 250
Max. Mutual Capacitance @ 1kHz for Non OS or OS cables (except one-pair and two-pairs) pF/m 75 75 75 85 105
Max. Mutual Capacitance @ 1kHz IS/OS cables (include 1 pairand 2 pair) pF/m 115 115 115 120 140
Max. L/R Ratio for adjacentcores(Inductance/Resistance) μH/ohm 25 25 25 40 60
Test voltage V 2000 2000 2000 2000 2000
Rated voltage V 300/500 300/500 300/500 300/500 300/500

Parameter

Multicore

PAS 5308 Cable Part 2 Type 2 PVC-OS-SWA-PVC

Number of Cores Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Diameter over Bedding Nominal Thickness of Armour Nominal Diameter over Armour Nominal Thickness of Sheath Nominal Diameter of Cable
mm mm² mm mm   mm mm
stranded conductor 0.5 mm² (16/0.20mm)
2 0.6 0.8 6 0.9 7.8 1.3 10.4
3 0.6 0.8 6.3 0.9 8.1 1.3 10.7
4 0.6 0.8 6.9 0.9 8.7 1.3 11.3
6 0.6 0.8 8.1 0.9 9.9 1.4 12.7
10 0.6 0.9 10.4 1.25 12.9 1.5 15.9
20 0.6 1 13.5 1.25 16 1.5 19
40 0.6 1.2 18.2 1.6 21.4 1.7 24.8
80 0.6 1.4 25.1 2 29.1 1.9 32.9
stranded conductor 0.75 mm² (24/0.20mm)
2 0.6 1.3 10.8 0.8 6.4 0.9 8.2
3 0.6 1.3 11.2 0.8 6.8 0.9 8.6
4 0.6 1.4 12 0.8 7.4 0.9 9.2
6 0.6 1.4 13.5 0.9 8.9 0.9 10.7
10 0.6 1.5 17 1 11.5 1.25 14
20 0.6 1.6 20.5 1.1 14.8 1.25 17.3
40 0.6 1.7 26.5 1.3 19.9 1.6 23.1
80 0.6 2 35.5 1.5 27.5 2 31.5
stranded conductor 1.5 mm² (7/0.53mm)
2 0.6 0.8 7.3 0.9 9.1 1.4 11.9
3 0.6 0.8 7.7 0.9 9.5 1.4 12.3
4 0.6 0.9 8.7 0.9 10.5 1.4 13.3
6 0.6 0.9 10.3 1.25 12.8 1.5 15.8
10 0.6 1 13.3 1.25 15.8 1.5 18.8
20 0.6 1.2 17.4 1.6 20.6 1.7 24
40 0.6 1.4 23.4 1.6 26.6 1.8 30.2
80 0.6 1.7 32.6 2 36.6 2.1 40.8
stranded conductor 2.5 mm² (7/0.67mm)
2 0.6 0.8 8.1 0.9 9.9 1.4 12.7
3 0.6 0.9 8.8 0.9 10.6 1.4 13.4
4 0.6 0.9 9.7 0.9 11.5 1.4 14.3
6 0.6 1 11.7 1.25 14.2 1.5 17.2
10 0.6 1.1 15.1 1.6 18.3 1.6 21.5
20 0.6 1.3 19.9 1.6 23.1 1.7 26.5
40 0.6 1.5 26.7 2 30.7 2 34.7
80 0.6 1.9 37.3 2.5 42.3 2.3 46.9

Multipair

PAS 5308 Cable Part 2 Type 2 PVC-OS-SWA-PVC

Number of Cores Number and Diameter of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Diameter of Cable
no./mm mm² mm mm mm
stranded conductor 0.5 mm² (16/0.20mm)
1 16/0.2 0.5 0.6 0.8 6
2 16/0.2 0.5 0.6 0.8 6.9
5 16/0.2 0.5 0.6 1 11.9
10 16/0.2 0.5 0.6 1.1 16.4
15 16/0.2 0.5 0.6 1.2 19
20 16/0.2 0.5 0.6 1.3 21.5
30 16/0.2 0.5 0.6 1.5 25.7
50 16/0.2 0.5 0.6 1.7 32.9
stranded conductor 0.75 mm² (24/0.20mm)
1 24/0.2 0.75 0.6 0.8 6.4
2 24/0.2 0.75 0.6 0.8 7.4
5 24/0.2 0.75 0.6 1 12.8
10 24/0.2 0.75 0.6 1.2 17.9
15 24/0.2 0.75 0.6 1.3 20.9
20 24/0.2 0.75 0.6 1.4 23.6
30 24/0.2 0.75 0.6 1.5 27.9
50 24/0.2 0.75 0.6 1.8 35.9
stranded conductor 1.5 mm² (7/0.53mm)
1 7/0.53 1.5 0.6 0.8 7.3
2 7/0.53 1.5 0.6 0.9 8.7
5 7/0.53 1.5 0.6 1.1 15.1
10 7/0.53 1.5 0.6 1.3 21.1
15 7/0.53 1.5 0.6 1.4 24.6
20 7/0.53 1.5 0.6 1.5 27.7
30 7/0.53 1.5 0.6 1.7 33
50 7/0.53 1.5 0.6 2.1 42.7
stranded conductor 2.5 mm² (7/0.67mm)
1 7/0.67 2.5 0.6 0.8 8.1
2 7/0.67 2.5 0.6 0.9 9.7
5 7/0.67 2.5 0.6 1.2 17.2
10 7/0.67 2.5 0.6 1.4 24.1
15 7/0.67 2.5 0.6 1.6 28.2
20 7/0.67 2.5 0.6 1.7 31.8
30 7/0.67 2.5 0.6 1.9 37.9
50 7/0.67 2.5 0.6 2.3 48.9
