IEC 60502-1 Cables
600/1000V, XLPE Insulated Cables according to IEC 60502-1 (unarmoured)
Application:
IEC 60502-1 cables are used for electricity supply in low voltage installation system,IEC 60502-1 cables are
suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations,
local energy distributions, industrial plants, where there is no risk of mechanical damage.
Construction:
Conductors:
Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller
sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.
Insulation:
XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C
continuous operation.
| Colour Code | Colour Code (1) : | ||
| 1 Core | : | Red or Black | |
| 2 Cores | : | Red, Black | |
| 3 Cores | : | Red, Yellow, Blue | |
| 4 Cores | : | Red, Yellow, Blue, Black | |
| 5 Cores | : | Red, Yellow, Blue, Black, Green | |
| Above 5 Cores: | Black Cores with White numerals | ||
| Colour Code (2) : | |||
| 1 Core | : | Brown or Blue | |
| 2 Cores | : | Brown or Blue | |
| 3 Cores | : | Brown, Black, Grey | |
| 4 Cores | : | Blue, Brown, Black, Grey | |
| 5 Cores | : | Green/Yellow, Blue, Brown, Black, Grey | |
| Above 5 Cores: | Black Cores with White numerals | ||
Assembly /Inner Sheath:Two, Three or Four insulated conductors are laid-up together with non-hygroscopicfillers
and the assembly is bedded with an extruded layer of PVC. In case of nonarmoured cables, this layer may be
omitted.
Armour:Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC60502 or as per BS 5467,
BS 6346. Single core cables shall be Aluminium wirearmour. Aluminum/Steel Tapes applied helically over the
bedding of multi-core cablesas per IEC 60502.
Outer Sheath:Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS
6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-TermitePVC, Anti-Rodent
PVC, Sunlight resistant PVC, Oil Resistant PVC are available onspecial request. Also, special sheathing materials
such as LLDPE, MDPE, HDPE,LSF, CPE are available on request.
Fire Performance of Cable Sheaths:Cables can be supplied with special flame retardant PVC outer sheath to
comply withthe flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24,can also supply
cables with Low Smoke Halogen Free (LSHF) material according toIEC 60502-1, BS 7211, BS 6724 or other
equivalent standards.
Cable Parameters:
Single core( unarmoured)
| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
| mm² | mm | mm | mm | mm |
| 1x1.5 | 1.4 | 0.7 | 1.4 | 5.6 |
| 1x2.5 | 1.8 | 0.7 | 1.4 | 6 |
| 1x4 | 2.3 | 0.7 | 1.4 | 6.5 |
| 1x6 | 2.8 | 0.7 | 1.4 | 7 |
| 1x10 | 3.6 | 0.7 | 1.4 | 7.8 |
| 1x16 | 4.5 | 0.7 | 1.4 | 8.7 |
| 1x25 | 5.6 | 0.9 | 1.4 | 10.2 |
| 1x35 | 6.7 | 0.9 | 1.4 | 11.3 |
| 1x50 | 8 | 1 | 1.4 | 12.8 |
| 1x70 | 9.4 | 1.1 | 1.4 | 14.4 |
| 1x95 | 11 | 1.1 | 1.5 | 16.1 |
| 1x120 | 12.4 | 1.2 | 1.5 | 17.8 |
| 1x150 | 13.8 | 1.4 | 1.6 | 19.8 |
| 1x185 | 15.3 | 1.6 | 1.6 | 21.8 |
| 1x240 | 17.5 | 1.7 | 1.7 | 24.4 |
| 1x300 | 19.5 | 1.8 | 1.8 | 26.7 |
| 1x400 | 22.6 | 2 | 1.9 | 30.5 |
| 1x500 | 25.2 | 2.2 | 2 | 33.7 |
| 1x630 | 28.3 | 2.4 | 2.2 | 37.4 |
| 1x800 | 31.9 | 2.6 | 2.3 | 41.7 |
| 1x1000 | 35.7 | 2.8 | 2.4 | 46.2 |

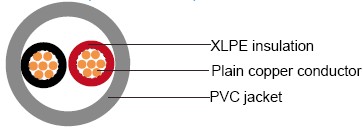

Two cores(unarmoured)
| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
| mm² | mm | mm | mm | mm |
| 2x1.5 | 1.4 | 0.7 | 1.8 | 9.2 |
| 2x2.5 | 1.8 | 0.7 | 1.8 | 10 |
| 2x4 | 2.3 | 0.7 | 1.8 | 11 |
| 2x6 | 2.8 | 0.7 | 1.8 | 12 |
| 2x10 | 3.6 | 0.7 | 1.8 | 13.6 |
| 2x16 | 4.5 | 0.7 | 1.8 | 15.4 |
| 2x25 | 5.6 | 0.9 | 1.8 | 18.4 |
| 2x35 | 6.7 | 0.9 | 1.8 | 20.6 |
| 2x50 | 8 | 1 | 1.8 | 23.6 |
| 2x70 | 9.4 | 1.1 | 1.8 | 26.8 |
| 2x95 | 11 | 1.1 | 1.9 | 30.2 |
| 2x120 | 12.4 | 1.2 | 2 | 33.7 |
| 2x150 | 13.8 | 1.4 | 2.2 | 37.5 |
| 2x185 | 15.3 | 1.6 | 2.3 | 41.6 |
| 2x240 | 17.5 | 1.7 | 2.5 | 46.7 |
| 2x300 | 19.5 | 1.8 | 2.6 | 51.4 |
| 2x400 | 22.6 | 2 | 2.9 | 58.9 |

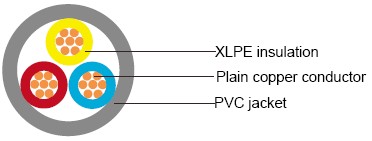

Three cores(unarmoured)
| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
| mm² | mm | mm | mm | mm |
| 3x1.5 | 1.4 | 0.7 | 1.8 | 9.6 |
| 3x2.5 | 1.8 | 0.7 | 1.8 | 10.5 |
| 3x4 | 2.3 | 0.7 | 1.8 | 11.6 |
| 3x6 | 2.8 | 0.7 | 1.8 | 12.6 |
| 3x10 | 3.6 | 0.7 | 1.8 | 14.4 |
| 3x16 | 4.5 | 0.7 | 1.8 | 16.3 |
| 3x25 | 5.6 | 0.9 | 1.8 | 19.5 |
| 3x35 | 6.7 | 0.9 | 1.8 | 21.9 |
| 3x50 | 8 | 1 | 1.8 | 25.1 |
| 3x70 | 9.4 | 1.1 | 1.9 | 28.7 |
| 3x95 | 11 | 1.1 | 2 | 32.4 |
| 3x120 | 12.4 | 1.2 | 2.1 | 36.1 |
| 3x150 | 13.8 | 1.4 | 2.3 | 40.3 |
| 3x185 | 15.3 | 1.6 | 2.4 | 44.6 |
| 3x240 | 17.5 | 1.7 | 2.6 | 50.2 |
| 3x300 | 19.5 | 1.8 | 2.7 | 55.2 |
| 3x400 | 22.6 | 2 | 3 | 63.3 |
Three cores+1(unarmoured)
| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) | ||
| mm² | (3)mm | (1)mm | (3)mm | (1)mm | mm | mm |
| 3x 16/10 | 4.5 | 3.6 | 0.7 | 0.7 | 1.8 | 17.5 |
| 3x 25/16 | 5.6 | 4.5 | 0.9 | 0.7 | 1.8 | 21.2 |
| 3x 35/16 | 6.7 | 4.5 | 0.9 | 0.7 | 1.8 | 23.8 |
| 3x 50/25 | 8 | 5.6 | 1 | 0.9 | 1.8 | 27.5 |
| 3x 70/35 | 9.4 | 6.7 | 1.1 | 0.9 | 2 | 31.7 |
| 3x 95/50 | 11 | 8 | 1.1 | 1 | 2.1 | 35.8 |
| 3x120/70 | 12.4 | 9.4 | 1.2 | 1.1 | 2.3 | 39.9 |
| 3x150/70 | 13.8 | 9.4 | 1.4 | 1.1 | 2.4 | 44.6 |
| 3x185/95 | 15.3 | 11 | 1.6 | 1.1 | 2.6 | 49.5 |
| 3x240/120 | 17.5 | 12.4 | 1.7 | 1.2 | 2.8 | 55.7 |
| 3x300/150 | 19.5 | 13.8 | 1.8 | 1.4 | 3 | 61.4 |
| 3x400/185 | 22.6 | 15.3 | 2 | 1.6 | 3.2 | 70.4 |

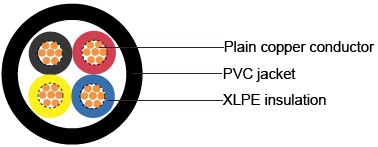

Four cores(unarmoured)
| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
| mm² | mm | mm | mm | mm |
| 4x1.5 | 1.4 | 0.7 | 1.8 | 10.4 |
| 4x2.5 | 1.8 | 0.7 | 1.8 | 11.3 |
| 4x4 | 2.3 | 0.7 | 1.8 | 12.5 |
| 4x6 | 2.8 | 0.7 | 1.8 | 13.7 |
| 4x10 | 3.6 | 0.7 | 1.8 | 15.7 |
| 4x16 | 4.5 | 0.7 | 1.8 | 17.8 |
| 4x25 | 5.6 | 0.9 | 1.8 | 21.5 |
| 4x35 | 6.7 | 0.9 | 1.8 | 24.1 |
| 4x50 | 8 | 1 | 1.8 | 27.8 |
| 4x70 | 9.4 | 1.1 | 2 | 32 |
| 4x95 | 11 | 1.1 | 2.1 | 36.1 |
| 4x120 | 12.4 | 1.2 | 2.3 | 40.2 |
| 4x150 | 13.8 | 1.4 | 2.4 | 44.9 |
| 4x185 | 15.3 | 1.6 | 2.6 | 49.8 |
| 4x240 | 17.5 | 1.7 | 2.8 | 56 |
| 4x300 | 19.5 | 1.8 | 3 | 61.7 |
| 4x400 | 22.6 | 2 | 3.2 | 70.7 |

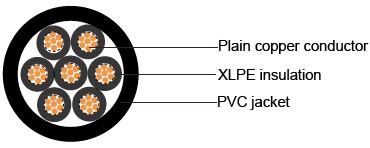

| Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
| mm² | mm | mm | mm | mm |
| 5x1.5 | 1.4 | 0.7 | 1.8 | 11.2 |
| 7x1.5 | 1.4 | 0.7 | 1.8 | 12 |
| 10x1.5 | 1.4 | 0.7 | 1.8 | 14.8 |
| 12x1.5 | 1.4 | 0.7 | 1.8 | 15.2 |
| 14x1.5 | 1.4 | 0.7 | 1.8 | 16 |
| 19x1.5 | 1.4 | 0.7 | 1.8 | 17.6 |
| 21x1.5 | 1.4 | 0.7 | 1.8 | 18.4 |
| 24x1.5 | 1.4 | 0.7 | 1.8 | 20.4 |
| 30x1.5 | 1.4 | 0.7 | 1.8 | 21.6 |
| 40x1.5 | 1.4 | 0.7 | 1.8 | 26 |
| 48x1.5 | 1.4 | 0.7 | 1.8 | 26.4 |
| 61x1.5 | 1.4 | 0.7 | 1.9 | 29 |
| 5x2.5 | 1.8 | 0.7 | 1.8 | 12.2 |
| 7x2.5 | 1.8 | 0.7 | 1.8 | 13.2 |
| 10x2.5 | 1.8 | 0.7 | 1.8 | 16.4 |
| 12x2.5 | 1.8 | 0.7 | 1.8 | 16.9 |
| 14x2.5 | 1.8 | 0.7 | 1.8 | 17.7 |
| 19x2.5 | 1.8 | 0.7 | 1.8 | 19.6 |
| 21x2.5 | 1.8 | 0.7 | 1.8 | 20.6 |
| 24x2.5 | 1.8 | 0.7 | 1.8 | 22.8 |
| 30x2.5 | 1.8 | 0.7 | 1.8 | 24.1 |
| 40x2.5 | 1.8 | 0.7 | 1.9 | 29.4 |
| 48x2.5 | 1.8 | 0.7 | 1.9 | 29.9 |
| 61x2.5 | 1.8 | 0.7 | 2 | 32.8 |
