Deep Well Grounding System
Prepackaged High Silicon Cast Iron Anode
Description

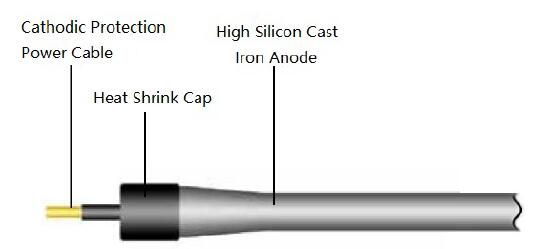

The whole prepackaged anode consists of two separate anodes of 1524 mm, for field assembly to make up a full
length of 3048mm. The top anode is welded with Halar/ HMWPE insulated cathodic protection cable of a fixed
length. The cable connection is sealed with epoxy or heat shrinkable cap to provide a watertight protection. The
cable length may vary depending on its position in the well.

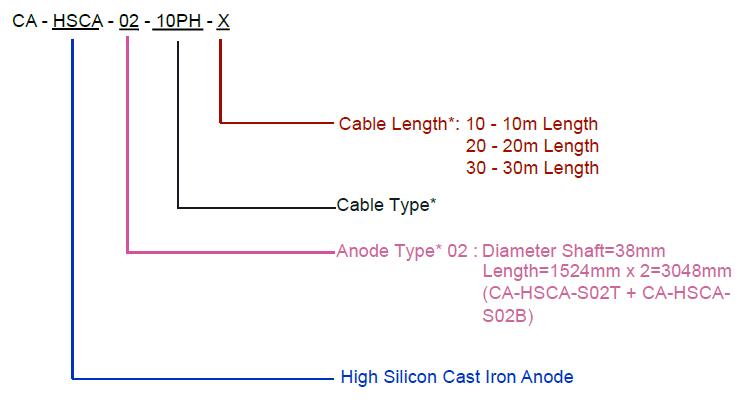

Ordering Information
Cable Type
Insulation / |
Cross Sectional Size (7 stranded core) |
|||||
|---|---|---|---|---|---|---|
8AWG |
6AWG |
4AWG |
2AWG |
16mm² |
10mm² |
|
XLPE/PVC |
8AXP |
6AXP |
4AXP |
2AXP |
16XP |
10XP |
PVDF/HMWPE |
8APH |
6APH |
4APH |
2APH |
16PH |
10PH |
EPR/CSP |
8AEC |
6AEC |
4AEC |
2AEC |
16EC |
10EC |
*Anode Type
Type |
Dimension (mm) |
||
|---|---|---|---|
Diameter Shaft |
Diameter Head |
Length |
|
CA-HSCA-S01T |
38 |
56 |
1220 |
CA-HSCA-S01B |
38 |
56 |
1220 |
CA-HSCA-S02T |
38 |
56 |
1524 |
CA-HSCA-S02B |
38 |
56 |
1524 |
*Cable Length X
10 — 10m
20 — 20m
30 — 30m
40 — 40m
