Bus Cables

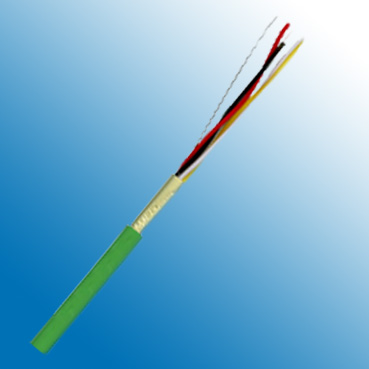

E.I.B Cable(European Installation Bus)

EIB installation consists of sensors and actuators. The E.I.B. concept allows intergration of Building Management

Systems (B.M.S.) over one common system. Lighting, blinds, heating and ventilation can be automatically

controlled through the E.I.B cable. This dramatically reduces the cabling required in a modern building. To meet

European standards this cable is LSHF throughout. They can be installed over, in, or below the plaster, in pipes

and pipe ducts, in dry, moist, and wet areas, as well as outside, provided they are protected against direct

exposure to the sun.

Type/Cable Construction	1 Quad	2 Pair
Inner Conductor	Plain copper conductors 0.8mm	Plain copper conductors 0.8mm
Conductor Insulation	Polyethylene	Polyethylene
Conductor Colors	White,yellow,red,black	White,yellow,red,black
Stranding Element	Cores twisted into a quad	Cores twisted into pairs, pairs laid up
Core Wrapping	-	-
Shielding	Aluminium/polyester foil screen	Aluminium/polyester foil screen
drain wire	Solid copper	Stranded tinned copper
Outer Jacket	Low Smoke Halogen Free	Low Smoke Halogen Free
Sheath Colour	Green	Green

Test Voltage:4KV

Working Voltage :Max.150V

Conductor resistance :37.0 Ohm/km @ 20°C

Insulation resistance:1000MΩhms*km @ 20°C

Mutual capacitance@800Hz:100nF/km max

Unbalanced capacitance:300pF/100m max
