Bus Cables
Interbus
Application:
INTERBUS (IBS) are bus cables designed for use in high speed control requirements. These cables deliver precise
data transmissions. Interbus cables are available in for stationary, flexible and outdoor applications. All versions
are constructed with a tinned copper braid and foil shield for optimum protection against electrical interferences
and have excellent data transmission characteristics. The stationary and flexing versions have an oil-resistant
and flame retardant violet jacket to INTERBUS conformance requirements. The outdoor version has a UV
-resistant black PVC jacket for direct burial and outdoor use.

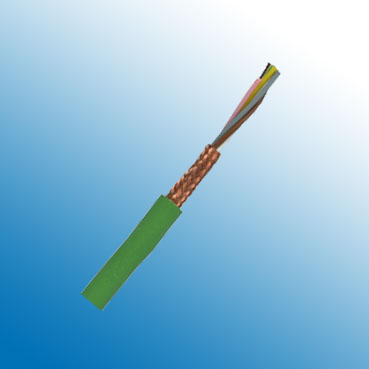

3 Pair Remote Bus
Construction:
Type: 3 Pair Interbus cable
Inner Conductor: Plain copper conductors 0.22mm²
Conductor Insulation:PE
Stranding Element:Cores twisted into pairs, pairs bunched
Core Wrapping:Polyester taped
Shielding:-
Total Shielding: Copper wire braid
Drain Wire: -
Outer Jacket Material: PVC(static) /PUR(dynamic)
Conductor identification:Pairs: Brown/White, Green/Yellow, Pink/Grey.
Cores: Red, Blue, Green.
Sheath colour:Green or Purple*
3 Pair + Power, Remote Installation cable
Construction:
Type : 3 Pair Interbus cable
Inner Conductor, data: Plain copper, 0.22mm²
Inner Conductor, power: Plain copper, 1.0mm²
Conductor Insulation, data: PE
Conductor Insulation, power: PE
Stranding Element, data: Cores twisted into pairs
Stranding Element, power:-
Total stranding Element: Cores and pairs bunched together
Core Wrapping : Polyester taped
Shielding: -
Total Shielding: Copper wire braid
Drain Wire: -
Outer Jacket Material: PUR sheath
Conductor identification:Pairs: Brown/White, Green/Yellow, Pink/Grey.
Cores: Red, Blue, Green.
Sheath colour:Green or Purple*
Electrical Data:
Characteristic Impedance@1MHz:100 Ω ±15Ω
Conductor resistance:96.0 Ohm/km
Insulation Resistance:1Gohm x km.min
Matual Capacitance@800Hz:Max: 60nF/km
Working Voltage:Max: 300V
Test Voltage:1.5KV
Technical Data：
Weight:approximately 67.0 kg/km
approximately 96.0 kg/km
Min. Bending Radius :PUR:15 x OD mm / PVC:8 x OD mm
Operating Temp.Range, min. :- 30 °C
Operating Temp.Range, max. :+70 °C(flexing) / +80 °C(static)
