Bus Cables

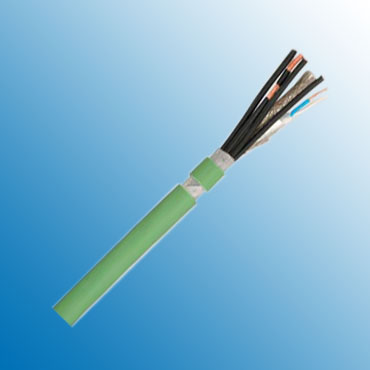

ProfiNet Type B

Industrial Ethernet ProfiNet cables are designed to provide reliable network communications in the demanding

Industrial and Process Control environment where difficult EMC conditions are pervasive. Conforming to the

EIA/TIA-568 standard, These Cables support half-duplex high speed communications.It ensures superior

transmission properties and can be used even under most severe conditions.

Type/Area of Application :Mobile Use

Cable Construction:2x2x0.64 mm (stranded) + 4x1.5 mm²

Inner Conductor Diameter 1:Copper, tinned (AWG 22/7)

Inner Conductor Diameter 2:Copper, bare (AWG 16/84)

Conductor Insulation 1:Foam-Skin-PE

Conductor Insulation 2:Foam-Skin-PE

Conductor Colors 1:white, yellow, blue, orange

Conductor Colors 2:Black

Stranding Element:Double Conductor

Shielding 1:Polyester foil over stranded bundle

Shielding 2 :Polyester foil, aluminum lined

Total Shielding :Polyester foil

Outer Jacket Material:FRNC

Outer Diameter:10.3 mm ± 0.3 mm

Outer Jacket Color :Green

Characteristic Impedance@1-100 MHz	100 Ω ± 15 Ω
Conductor Resistance	60.0 Ohm/km max.
Insulation Resistance	0.50 GOhm x km min.
Mutual Capacitance	52.0 nF/km nom.
Working Voltage	300V
Test Voltage	1.5 KV
Attenuation	10 MHz	6.3 dB/100m
	16 MHz	8.0 dB/100m
	62.5 MHz	16.5 dB/100m
	100 MHz	21.3 dB/100m

Weight:approximately 153.0 kg/km

Min. Bending Radius for Laying:10 x OD mm

Operating Temperature Range, min.:-40 °C

Operating Temperature Range, max.:+70 °C
