Bus Cables

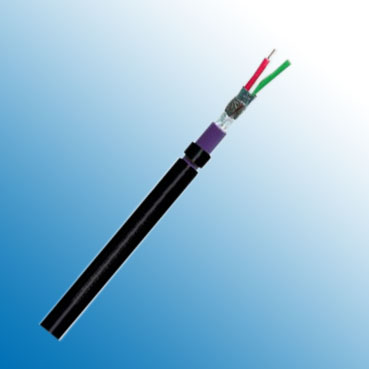

Profibus L2 Direct Burial

This system cable is used to interconnect L2-BUS components. This cable is an economical solution for the cell

and field area. For the information exchange between different automation systems as well as for

communication with the connected decentralized field units, serial field bus systems are used. The above

mentioned type is suitable for underground installation and is equipped with a special PVC/PE jacket.

Type/Area of Application :Underground Laying

Cable Construction:1x2x0.64 mm

Inner Conductor Diameter 1:Copper, bare (AWG 22/1)

Conductor Insulation :Foam-Skin-PE

Conductor Colors 1:Red, green

Stranding Element:2 conductors + 2 fillers stranded together

Shielding 1:Polyester foil over stranded bundle

Shielding 2:Polyester foil, aluminum lined

Total Shielding:Copper braid, tinned

Inner Jacket Material :PVC

Outer Jacket Material:PE

Outer Diameter:10.0 mm ± 0.2 mm

Outer Jacket Color :Black

Characteristic Impedance @3-20MHz	150 Ω ± 10 Ω
Conductor Resistance	57.1 Ohm/km max.
Insulation Resistance	1.00 GOhm x km min.
Mutual Capacitance @1KHz	30.0 nF/km nom.
Working Voltage	Max: 250 V
Test Voltage	1.5 kV
Attenuation		9.6	kHz	<	2.1dB/km
		38.4	kHz	<	3.1dB/km
		3.0	MHz	<	18.2dB/km
		20.0	MHz	<	47.0dB/km

Weight:approximately 92.0 kg/km

Min. Bending Radius for Laying:18 x OD mm

Operating Temperature Range, min.:-40 °C

Operating Temperature Range, max.:+70 °C
