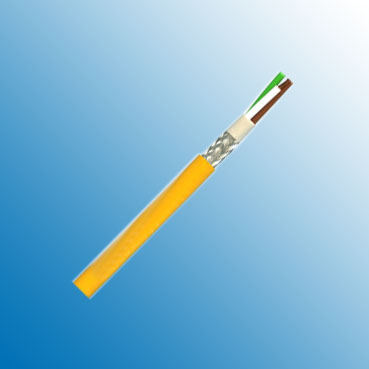

Safety Bus

Safety Bus is an open Fieldbus system based on well established CAN Bus technology. Safety Bus modules must

be self monitoring, perform intelligent checks and reactions independently and therefore remain “safe”.Several

versions of Safety Bus cables are available depending on the application and environmental conditions. The

transnission rate is up to 500 Kbit/s

Type/Area of Application:Fixed Installation, Indoor

Cable Construction:3x0.75 mm2 (stranded)

Inner Conductor Diameter 1:Copper, bare (AWG 18/24)

Conductor Insulation:Foamed PP with a hard skin

Conductor Colors:white, brown, green

Stranding Element:Triple conductor

Shielding 1:Polyester foil over stranded bundle

Shielding 2:-

Total Shielding:Copper braid, tinned

Outer Jacket Material:FRNC/PUR/PVC/LSHF

Outer Diameter:7.5 mm ± 0.3 mm

Outer Jacket Color:Yellow

Characteristic Impedance@1MHz	120 Ω ± 10 Ω
Conductor Resistance	52.0 Ohm/km max.
Insulation Resistance	0.20 GOhm x km min.
Mutual Capacitance@800Hz	45.0 nF/km nom.
Working Voltage	Max: 250 V
Test Voltage	3.0 KV
Data Rate	500 Kbit/s			100m
	250 Kbit/s			250m
	125 Kbit/s			500m
	50 Kbit/s			1000m
Attenuation	1	MHz	<	1.6	dB/100m
	5	MHz	<	3.4	dB/100m
	10	MHz	<	5.6	dB/100m
	16	MHz	<	7.5	dB/100m

Weight:approximately 68.0 kg/km

Min. Bending Radius (Laying):10 x OD mm

Operating Temp.Range, min.:- 30 °C

Operating Temp.Range, max.:+80 °C
