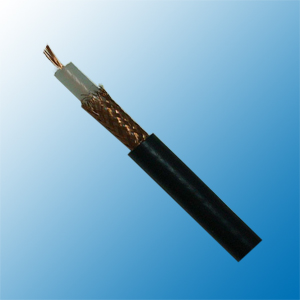

RG 175 PC
Construction
| Inner conductor | Plain copper | 9x0.10mm |
|---|---|---|
| Dielectric | Foam PE | Φ1.50±0.08mm |
| Outer conductor(shield) | Silver plated copper | 72x0.10mm |
| Shield coverage | 90% | |
| Sheath | PVC or LSZH | Φ2.80±0.13mm |
Electrical & Mechanical Characteristics
Impedance :75±5Ohm
Nominal capacitance :67pF/m
Velocityofpropagation :66%
Insulation resistance :>5000Mohm.Km
Inner conductor resistance :250Ohm/Km
Outer conductor resistance :35Ohm/Km
Operating temperature range :-25°C-+80°C
Copper weight :5.85Kg/Km
Cable weight(approx.) :12.95Kg/Km
Screening effectiveness :>50dB
Attenuation
| Frequency(MHz) | Attenuation(dB/100m) | Attenuation(dB/100ft) |
|---|---|---|
| 50 | 19.2 | 5.85 |
| 100 | 27.9 | 8.51 |
| 200 | 40.7 | 12.41 |
| 400 | 59.2 | 18.05 |
| 500 | 67.5 | 20.58 |
| 600 | 72.6 | 22.13 |
| 860 | 91.1 | 27.77 |
| 1000 | 101 | 30.79 |
Return Loss
| 30-300MHz | >20dB |
|---|---|
| 300-600MHz | >20dB |
| 600-900MHz | >20dB |
