Elevator Cables

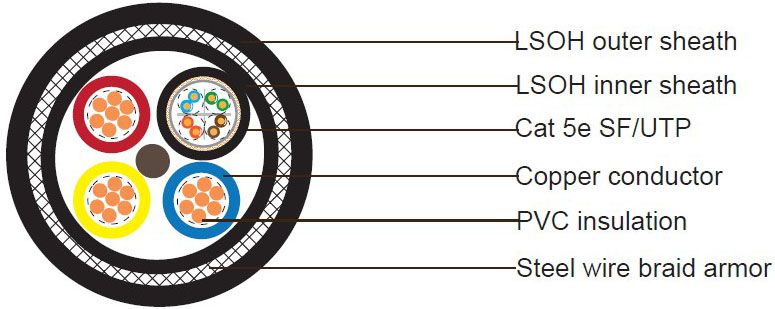

Armored LSZH Sheathed Composite Elevator Cable (3x1.5 Cable + Cat5e SF/UTP)
Applications
These cables are designed for installations in elevators, dumbwaiters, personnel, and material hoists.
Construction
CAT 5E SF/UTP (*CAT 5E U/UTP, F/UTP ALSO AVAILABLE UPON REQUEST)
Conductor:24 AWG solid plain copper.
Insulation:PE material. Nominal diameter is 1.0mm.
Insulation Color:White-orange,Orange; White-blue,Blue; White-green,Green; White-brown,Brown.
Screen:Alumminum tape & tinned copper wire braided.
Sheath:PE sheath. Nominal overall diameter is 6.8 mm.
Sheath Color:Black or Grey or Blue.
3X1.5MM² CABLE
Conductor :1.5mm² Stranded copper wire.
Insulation:PVC. Nominal diameter 3.0mm.
Insulation Color:Red,Yellow,Blue. Other color also available upon request.
ELEMENT ASSEMBLY
Filler :PP material.
Inner Sheath:LSZH, thickness 1.0 mm.
Armor:Steel wire braid, dia. 0.2mm.
Outer Sheath:LSZH, thickness 1.8mm.
Sheath Color:Black.
Electrical and Physical Properties@20°C
Operating Temperature :-20°C/+90°C
CAT5E SF/UTP
Electrical Resistance :93.8 Ohm/km
Insulation Resistance:≥5000 MOhm/km
3C1.5MM² CABLE
Electrical Resistance :12.3Ohm/km
Insulation Resistance:≥5000 MOhm/km
Fire Performance
Low Smoke Capacity :IEC61034-1/2
Halogen Free:IEC60754-1/2
Flame Propagation:IEC60332-3-22
