Elevator Cables
Unarmoured LSZH Sheathed Composite Elevator Cable (3x1.5 Cable + Cat5e SF/UTP)
Applications
These cables are designed for installations in elevators, dumbwaiters, personnel, and material hoists.
Construction

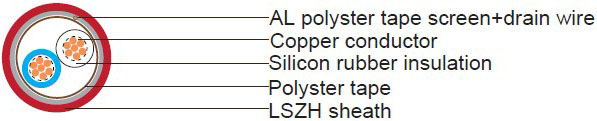

2CX1.5MM² AUDIO CABLE
Conductor:1.5mm² Stranded copper wire, class 5 to IEC60228.
Insulation:Fire resistant silicone rubber compound. Nominal thickness 0.8mm.
Insulation Color:White and blue.
Screen:Alumminum tape with tinned copper drain wire.
Sheath:LSZH sheath. Nominal thickness 1.0 mm.
Sheath Color:Red.
General Standard:Basic design to EN50288-7.

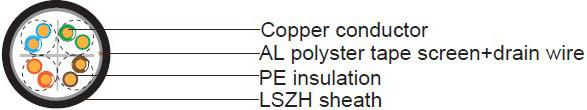

CAT 6 F/UTP
Conductor:24 AWG stranded plain copper.
Insulation:PE material. Nominal diameter is 0.97mm.
Insulation Color:White-orange,Orange; White-blue,Blue; White-green,Green; White-brown,Brown.
Screen:Alumminum tape with tinned copper drain wire.
Sheath:LSZH sheath. Nominal overall diameter is 6.5 mm.
Sheath Color:Black or Grey or Blue. Other colors also available upon request.
Applications:IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; IEEE 802.5 16 MB; ISDN; TPDDI; ATM.
Standards:ISO/IEC 11801, IEC 61156-5, EN 50173, ANSI/TIA 568B.

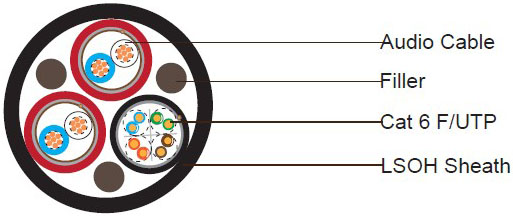

ELEMENT ASSEMBLY
Filler :PP material.
Wrapping Tape:Polyester tape or woven tape
Outer Sheath:High flexible LSZH. Nominal thickness 1.8mm
Sheath Color:Black. Other colors also available upon request
Electrical and Physical Properties@20°C
AUDIO CABLE
Max.Electrical Resistance :12.3Ohm/km
Min. Insulation Resistance:1000 MOhm/km
Operating Temperature:-20°C/+90°C
Voltage rating:300/500V
Insulation spark test:7000 V r.m.s./H.F.
Max. Attenuation:0.88 dB/km @800HZ
Max. Inductance:0.75mH/km
CAT 6 F/UTP (1-250MHZ)
Max.Electrical Resistance :93.8 Ohm/km
Min.Insulation Resistance:2000 MOhm/km
Operating Temperature:-20°C/+70°C
Max.Resistance Unbalance:5%
Max. Mutual Capacitance:5.6nF/100m
Max. Capacitance Unbalance:330pF/100m
Characteristic Impedance:100 ± 15 (1-250MHz)
Nominal Velocity of Propagation:69%
Max. Propagation Delay:536ns/100m@100MHz
Max.Propagation Delay skew:45ns/100m(1-125MHz)
Test voltage (DC, 1 min) Core/Core:1000V
Fire Performance
AUDIO CABLE
Fire Resistance :IEC60331
Flame Retardance:IEC60332-1-2
Fire Propagation:IEC60332-3-22
Halogen Free:IEC60754-1/2
Low Smoke Capacity:IEC61034-1/2
Oxygen Index:ISO 4589-2
Temperature Index:ISO 4589-3
CAT 6 F/UTP
Flame Retardance :IEC60332-1-2
Fire Propagation:IEC60332-3-22
Halogen Free:IEC60754-1/2
Low Smoke Capacity:IEC61034-1/2
Oxygen Index:ISO 4589-2
Temperature Index:ISO 4589-3
ELEMENT ASSEMBLY
Flame Retardance :IEC60332-1-2
Fire Propagation:IEC60332-3-22
Halogen Free:IEC60754-1/2
Low Smoke Capacity:IEC61034-1/2
Oxygen Index:ISO 4589-2
Temperature Index:ISO 4589-3
