Fire Resisting Cables
Fire Resistant CAT6A SWB Armoured Data Cables
Fire Resisting S/FTP Cat 6A Cable to IEC 60331-23
Part NO. FFX-CAT6AS/FTP4P23FR SWB
APPLICATION
cat6a cable is a cable standard for Gigabit ethernet and other network protocol, suitable for 10baseT,
100baseTx & 1000baseT (Gigabit ethernet) application. In addition, these cables can be offered with copper
wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still
maintaining the flexibility of the cable.
STANDARDS
basic design adapted to en 50173
FIRE PERFORMANCE
circuit Integrity |
Iec 60331-23; bs 6387 cWZ (optional) |
|---|---|
flame Retardance (single vertical wire or cable test) |
Iec 60332-1-2; en 60332-1-2 |
Reduced fire Propagation (Vertically-mounted bundled wires & cables test) |
Iec 60332-3-24; en 60332-3-24 |
Halogen free |
Iec 60754-1; en 50267-2-1 |
no corrosive Gas emission |
Iec 60754-2; en 50267-2-2 |
Minimum smoke emission |
Iec 61034-2; en 61034-2 |

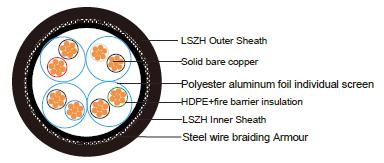

CABLE CONSTRUCTION
Conductors: 23aWG solid bare copper.
Insulation: HDPE+fire barrier insulation.
Twinning: Two coloured insulated conductors twisted together to form a pair. Individual Shield: every pair is
separately shielded with polyester aluminum foil. Overall Shield: Tinned copper braiding
Inner Sheath: Thermoplastic lsZH compound, coloured black.
Armouring: steel wire braid.
Outer Sheath: Thermoplastic lsZH compound, coloured black. UV resistance, oil resistance, mud resistance can
be offered as option.
PHySICAL AND THERMAL PROPERTIES
Temperature range: -30°c - +75°c
Minimum bending radius during installation (mobile state): 8 x overall Diameter
Minimum bending radius during operation (fixed state): 4 x overall Diameter
ELECTRICAL PROPERTIES
aWG |
|
23 |
|---|---|---|
Maximum Dc Resistance@20°c |
Ω/100m |
9.38 |
Maximum DcR Unbalance |
% |
3 |
Maximum Mutual capacitance |
pf/m |
5.8 |
Maximum capacitance Unbalance |
pf/100m |
30 |
characteristic Impedance@1-100MHz |
Ω |
100±15 |
Maximum Propagation Delay skew |
ns/100m |
18 |
TRANSMISSION PROPERTIES
fReQ MHz |
attenuation db/100m |
neXT db |
PsneXT db |
elfeXT db/100m |
PselfeXT db/100m |
Rl db |
|---|---|---|---|---|---|---|
0.772 |
1.8 |
76.0 |
74.0 |
70.0 |
67.0 |
— |
1 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
20.0 |
4 |
3.8 |
65.3 |
63.3 |
55.7 |
52.7 |
23.0 |
8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
24.5 |
10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
25.0 |
16 |
7.6 |
56.3 |
54.3 |
43.7 |
40.7 |
25.0 |
20 |
8.5 |
54.8 |
52.8 |
41.7 |
38.7 |
25.0 |
25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
24.3 |
31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
23.6 |
62.5 |
15.4 |
47.4 |
45.4 |
31.8 |
28.8 |
21.5 |
100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
20.1 |
155 |
25.2 |
41.5 |
39.5 |
23.9 |
20.9 |
18.8 |
200 |
29.0 |
39.8 |
37.8 |
21.7 |
18.7 |
18.0 |
250 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
17.3 |
300 |
34.5 |
37.1 |
35.1 |
18.3 |
15.3 |
16.8 |
350 |
45.2 |
36.1 |
34.1 |
16.9 |
13.9 |
16.3 |
400 |
40.7 |
35.3 |
33.3 |
15.8 |
12.8 |
15.9 |
450 |
43.2 |
34.5 |
32.5 |
14.7 |
11.7 |
15.5 |
500 |
46.0 |
33.8 |
31.8 |
13.8 |
10.8 |
15.2 |
CONSTRUCTION PARAMETERS
construction no. of elements×no. |
nominal nominal nominal |
approx. |
||||
|---|---|---|---|---|---|---|
aWG |
mm mm mm |
mm kg/km |
||||
ffX-caT6as/fTP4P23fR sWb |
4x2x23 |
0.335 |
1.0 |
1.0 |
13.0 |
224 |
