Fire Resisting Cable

Fire Resisting Cables

300/500V Mica+LSZH Insulated, Non-sheathed Power Cables to BS EN 50525-3-31 (Single Core)

FFX100 05mZ1-U/R/K (CU/MGT+LSZH 300/500V Class 1/2/5)

APPLICATION

The cables are mainly used in power stations, mass transit underground passenger systems, airports,

petrochemical plants, hotels, hospitals and high-rise buildings.

STANDARDS

Basic design adapted from BS EN 50525-3-31

FFX100 05mZ1-U/R/K

FIRE PERFORMANCE

Circuit Integrity

IEC 60331-21; BS 6387

Flame Retardance (Single vertical wire or cable test)

IEC 60332-1-2; EN 60332-1-2

Reduced fire Propagation (Vertically-mounted bundled wires & cables test)

IEC 60332-3-24; EN 60332-3-24

Halogen free

IEC 60754-1; EN 50267-2-1

No Corrosive Gas Emission

IEC60754-2; EN 50267-2-2

Minimum Smoke Emission

IEC 61034-2; EN 61034-2

VOLTAGE RATING

300/500V

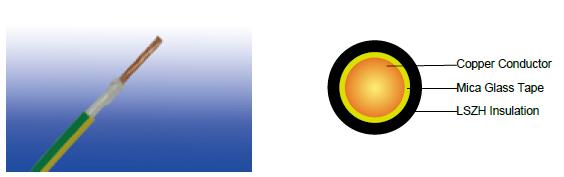

CABLE CONSTRUCTION

Conductor : Copper conductor according to BS EN 60228 class 1/2/5.

Fire Barrier : Mica glass tape.

Insulation : Thermoplastic compound of type TI 7 to EN 50363-7.

Insulation Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties

can be offered as option.

COLOUR CODE

Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green and Yellow. Bi-colours of any

combination of the above mono-colours are permitted.

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation : 70°C

Maximum short circuit temperature (5 Seconds) : 160°C

Minimum bending radius : 4 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor

FFX100 05mZ1-U/R/K

No. of Cores × Cross-sectional Area

Conductor Class

Nominal Insulation Thickness

Min. Overall Diameter

Max. Overall Diameter

Approx. Weight

No.×mm²



mm

mm

mm

kg/km

1×0.5

1

0.6

2.9

3.3

13.5

1×0.75

1

0.6

3.1

3.5

16.5

1×1.0

1

0.6

3.2

3.7

19.7

1×0.5

2

0.6

3.0

3.4

14.4

1×0.75

2

0.6

3.2

3.6

17.3

1×1.0

2

0.6

3.3

3.8

21.3

1×0.5

5

0.6

3.1

3.5

14.2

1×0.75

5

0.6

3.2

3.7

17.7

1×1.0

5

0.6

3.4

3.8

20.7

ELECTRICAL PROPERTIES

Conductor operating temperature: 70°C

Ambient temperature: 30°C

Current-Carrying Capacities (Amp)

Conductor cross-sectional area

Single-phase a.c.

Three-phase a.c.

mm²

A

A

0.5

3

3

0.75

6

6

1.0

10

10

Note: These values apply to the majority of cases. further information should be sought in unusual cases eg.:
When high ambient temperatures are involved, ie. above 30°C
Where long lengths are used
Where ventilation is restricted
Where the cords are used for other purposes, ego internal wiring of apparatus.

Voltage Drop (Per Amp Per Meter)


Conductor cross-sectional area

2 cables d.c.

2 cables, single-phase a.c.

3 or 4 cables, three-phase a.c.

Ref. Methods A&B (enclosed in conduit or trunking)

Ref. Methods C, F&G (clipped direct, on trays or in free air)

Ref. Methods A&B (enclosed in conduit or trunking)

Ref. Methods C, F&G (clipped direct, on trays or in free air)

Cables touching

Cables spaced*

Cables touching, Trefoil

Cables touching, flat

Cables spaced*, flat

1

2

3

4

5

6

7

8

9

mm²

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

mV/A/m

0.5

93

93

93

93

80

80

80

80

0.75

62

62

62

62

54

54

54

54

1.0

46

46

46

46

40

40

40

40

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
