Fire Resisting Cables

Fire Resistant Individual and Overall Screened, Armoured Instrumentation Cables (Multipair)

RE-2X(St)HSWAH PiMF...CI

APPLICATION

The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The

galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial

process manufacturing plants for communication, data and voice transmission signals and services. Also used for

the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume

emission.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

RE-2X(St)HSWAH PiMF...CI

FIRE PERFORMANCE

Circuit Integrity

IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120)

Flame Retardance (Single Vertical Wire or cable test)

IEC 60332-1-2; EN 60332-1-2

Reduced Fire Propagation (Vertically-mounted bundled wires & cables test)

IEC 60332-3-24; EN 60332-3-24

Halogen Free

IEC 60754-1; EN 50267-2-1

No Corrosive Gas Emission

IEC 60754-2; EN 50267-2-2

Minimum Smoke Emission

IEC 61034-2; EN 61034-2

VOLTAGE RATING

300, 500V

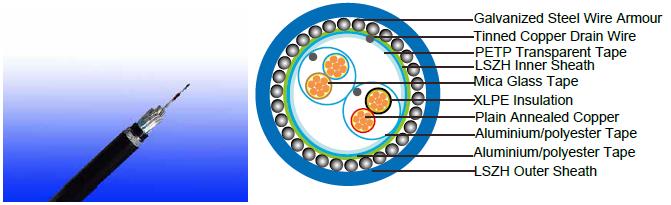

CABLE CONSTRUCTION

Conductor

Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and class 5.

Fire Barrier

Mica glass tape.

Insulation

Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.

Pairs

Two insulated conductors uniformly twisted together with a lay not exceeding 100mm (≤1.5mm²) or 150mm (for 2.5mm²).

Individual Screen

Aluminium/polyester tape is applied over each pair with metallic side down in contact with tinned copper drain wire, 0.5mm².

Binder Tape

PETP transparent tape.

Overall Screen

Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm². Copper braid screen or aluminium/polyester tape combination with copper braid screen can be offered as option.

Inner Sheath

Thermoplastic LSZH compound.

Amouring

Galvanized steel wire armour.

Outer Sheath

Thermoplastic LSZH compound according to EN 50290-2-22.

Outer Sheath Option

Thermoplastic LSZH compound. UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour

Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.

Outer Sheath

Black. Other colours can be offered upon request.

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation

-30°C - +90°C

Temperature range during installation

-5°C - +50°C

Maximum short circuit temperature (5 Seconds)

250°C

Minimum bending radius

10 x Overall Diameter

ELECTRICAL PROPERTIES
300V

Conductor area size

mm²

0.5

0.75

1.0

1.5

Insulation thickness (Nominal)

mm

0.4

0.4

0.4

0.5

Insulation thickness (Minimum)

mm

0.26

0.26

0.26

0.35

Conductor resistance (20°C)

ohm/km

36.7

25.0

18.5

12.3

Minimum Insulation resistance (20°C)

Mohm/km

1000

Maximum Mutual capacitance

nf/km

250

Capacitance Unbalance

pf/500m

500

Maximum l/R (ratio)

μH/Ω

25

25

25

40

Operating Voltage

V

300

Dielectric strength for 1 minute

AC

V

≥1000

DC

V

≥2000

500v


Conductor area size

mm²

0.5

0.75

1.0

1.5

2.5

Insulation thickness (nominal)

mm

0.6

0.6

0.6

0.6

0.7

Insulation thickness (minimum)

mm

0.44

0.44

0.44

0.44

0.53

Conductor resistance (20°C)

ohm/km

36.7

25.0

18.5

12.3

7.4

Minimum Insulation resistance (20°C)

Mohm/km

1000

Maximum Mutual capacitance

nf/km

250

Capacitance Unbalance

pf/500m

500

Maximum l/R (ratio)

μH/Ω

25

25

25

40

60

Operating Voltage

V

500

Dielectric strength for 1 minute

AC

V

≥2000

DC

V

≥3000

CONSTRUCTION PARAMETERS

300V

Conductor

RE-2X(St)HSWAH PiMF...CI

No. of Pairs X Cross Section

Class of Conductor

Nominal Insulation Thickness

Nominal Inner Sheath Thickness

Nominal Armour Wire Diameter

Nominal Outer Sheath Thickness

Approx. Overall Diameter

Approx. Weight

mm²

　

mm

mm

mm

mm

mm

kg/km

0.5mm²

2x2x0.5

2

0.4

1.0

0.9

1.4

16.6

490

3x2x0.5

2

0.4

1.0

0.9

1.4

17.3

546

4x2x0.5

2

0.4

1.1

0.9

1.5

19.0

644

5x2x0.5

2

0.4

1.1

1.25

1.5

20.7

851

8x2x0.5

2

0.4

1.1

1.25

1.5

24.0

1067

10x2x0.5

2

0.4

1.2

1.25

1.6

28.0

1309

12x2x0.5

2

0.4

1.2

1.25

1.6

28.6

1403

16x2x0.5

2

0.4

1.3

1.6

1.7

32.4

1888

20x2x0.5

2

0.4

1.4

1.6

1.7

34.8

2152

24x2x0.5

2

0.4

1.5

1.6

1.8

39.3

2542

0.75mm²

2x2x0.75

2

0.4

1.0

0.9

1.4

17.2

524

3x2x0.75

2

0.4

1.1

0.9

1.5

18.4

613

4x2x0.75

2

0.4

1.1

0.9

1.5

19.8

697

5x2x0.75

2

0.4

1.2

1.25

1.5

22.2

937

8x2x0.75

2

0.4

1.2

1.25

1.6

25.5

1197

10x2x0.75

2

0.4

1.3

1.25

1.6

29.3

1451

12x2x0.75

2

0.4

1.3

1.25

1.6

30.0

1578

16x2x0.75

2

0.4

1.4

1.6

1.7

34.1

2095

20x2x0.75

2

0.4

1.5

1.6

1.8

36.8

2415

24x2x0.75

2

0.4

1.5

1.6

1.8

41.3

2800

1.0mm²

2x2x1.0

2

0.4

1.0

0.9

1.4

18.0

567

3x2x1.0

2

0.4

1.1

0.9

1.5

19.2

667

4x2x1.0

2

0.4

1.2

1.25

1.5

21.6

909

5x2x1.0

2

0.4

1.2

1.25

1.6

23.4

1036

8x2x1.0

2

0.4

1.2

1.25

1.6

26.7

1319

10x2x1.0

2

0.4

1.3

1.6

1.7

31.7

1821

12x2x1.0

2

0.4

1.4

1.6

1.7

32.8

1982

16x2x1.0

2

0.4

1.5

1.6

1.8

36.2

2372

20x2x1.0

2

0.4

1.5

1.6

1.8

38.8

2692

24x2x1.0

2

0.4

1.6

2.0

1.9

43.9

3516

1.5mm²

2x2x1.5

2

0.5

1.1

1.25

1.5

20.7

805

3x2x1.5

2

0.5

1.2

1.25

1.6

22.1

937

4x2x1.5

2

0.5

1.2

1.25

1.6

23.8

1072

5x2x1.5

2

0.5

1.3

1.25

1.6

25.8

1232

8x2x1.5

2

0.5

1.3

1.25

1.7

29.9

1604

10x2x1.5

2

0.5

1.4

1.6

1.8

35.5

2198

12x2x1.5

2

0.5

1.5

1.6

1.8

36.7

2400

16x2x1.5

2

0.5

1.6

1.6

1.9

40.6

2887

20x2x1.5

2

0.5

1.7

2.0

2.0

43.9

3679

24x2x1.5

2

0.5

1.8

2.0

2.0

49.5

4311

500v

Conductor

RE-2X(St)HSWAH...CI

No. of Pairs X Cross Section

Class of Conductor

Nominal Insulation Thickness

Nominal Inner Sheath Thickness

Nominal Armour Wire Diameter

Nominal Outer Sheath Thickness

Approx. Overall Diameter

Approx. Weight

mm²

　

mm

mm

mm

mm

mm

kg/km

0.5mm²

2x2x0.5

2

0.6

1.0

0.9

1.4

18.0

548

3x2x0.5

2

0.6

1.1

0.9

1.5

19.3

638

4x2x0.5

2

0.6

1.1

1.25

1.5

21.4

853

5x2x0.5

2

0.6

1.2

1.25

1.6

23.4

987

8x2x0.5

2

0.6

1.2

1.25

1.6

26.8

1241

10x2x0.5

2

0.6

1.3

1.25

1.7

31.1

1522

12x2x0.5

2

0.6

1.4

1.25

1.7

32.2

1656

16x2x0.5

2

0.6

1.5

1.6

1.8

36.3

2214

20x2x0.5

2

0.6

1.5

1.6

1.8

38.9

2493

24x2x0.5

2

0.6

1.6

2.0

1.9

44.0

3278

0.75mm²

2x2x0.75

2

0.6

1.1

0.9

1.5

19.0

608

3x2x0.75

2

0.6

1.1

1.25

1.5

20.7

806

4x2x0.75

2

0.6

1.2

1.25

1.6

22.6

943

5x2x0.75

2

0.6

1.2

1.25

1.6

24.3

1059

8x2x0.75

2

0.6

1.3

1.25

1.6

28.0

1361

10x2x0.75

2

0.6

1.4

1.6

1.7

33.3

1882

12x2x0.75

2

0.6

1.4

1.6

1.7

34.2

2014

16x2x0.75

2

0.6

1.5

1.6

1.8

37.8

2402

20x2x0.75

2

0.6

1.6

1.6

1.9

40.9

2769

24x2x0.75

2

0.6

1.7

2.0

2.0

46.3

3622

1.0mm²

2x2x1.0

2

0.6

1.1

0.9

1.5

19.8

652

3x2x1.0

2

0.6

1.2

1.25

1.5

21.7

883

4x2x1.0

2

0.6

1.2

1.25

1.6

23.5

1018

5x2x1.0

2

0.6

1.3

1.25

1.6

25.5

1167

8x2x1.0

2

0.6

1.3

1.25

1.7

29.6

1504

10x2x1.0

2

0.6

1.4

1.6

1.7

34.8

2049

12x2x1.0

2

0.6

1.5

1.6

1.8

36.1

2250

16x2x1.0

2

0.6

1.6

1.6

1.9

40.0

2692

20x2x1.0

2

0.6

1.7

2.0

1.9

43.0

3409

24x2x1.0

2

0.6

1.8

2.0

2.0

48.8

4017

1.5mm²

2x2x1.5

2

0.6

1.1

1.25

1.5

21.5

841

3x2x1.5

2

0.6

1.2

1.25

1.6

22.9

980

4x2x1.5

2

0.6

1.3

1.25

1.6

24.9

1140

5x2x1.5

2

0.6

1.3

1.25

1.7

27.0

1305

8x2x1.5

2

0.6

1.4

1.6

1.7

32.0

1905

10x2x1.5

2

0.6

1.5

1.6

1.8

37.1

2331

12x2x1.5

2

0.6

1.6

1.6

1.9

38.5

2566

16x2x1.5

2

0.6

1.7

2.0

2.0

42.6

3401

20x2x1.5

2

0.6

1.8

2.0

2.0

45.9

3892

24x2x1.5

2

0.6

1.9

2.0

2.1

52.1

4590

2.5mm²

2x2x2.5

2

0.7

1.2

1.25

1.6

24.1

1022

3x2x2.5

2

0.7

1.3

1.25

1.0

25.5

1186

4x2x2.5

2

0.7

1.4

1.25

1.7

27.9

1405

5x2x2.5

2

0.7

1.5

1.25

1.8

30.6

1639

8x2x2.5

2

0.7

1.6

1.6

1.8

36.2

2392

10x2x2.5

2

0.7

1.7

1.6

2.0

42.3

2955

12x2x2.5

2

0.7

1.8

2.0

2.0

43.7

3567

16x2x2.5

2

0.7

1.9

2.0

2.1

48.5

4280

20x2x2.5

2

0.7

2.1

2.5

2.2

52.6

5499

24x2x2.5

2

0.7

2.2

2.5

2.4

59.9

6505
